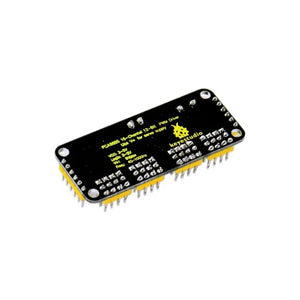

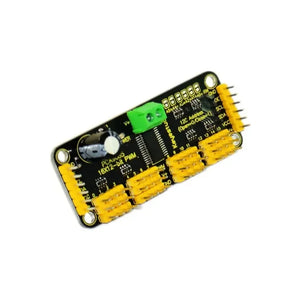

KeyeStudio 16-Channel Servo Drive Board with 12-BIT PWM I2C Interface

Sale price €6,35
incl. VAT
SKU: KY-KS0065

Pre-order

Add to Wishlist Add to Compare

Ask a question

Guarantee & Return Policy

Effective Date: December 10, 2025

At OpenELAB, we are committed to providing accurate product descriptions and high-quality electronics. The following policy outlines your rights and obligations, designed to be fair to both our customers and our business operations globally.

1. Warranty Policy

A. Standard Limited Warranty (Global & US)

For customers in the United States, Asia, and other non-EU regions:

  • Warranty Period: OpenELAB provides a 12-month warranty from the date of delivery.

  • Coverage: This warranty covers defects in material and workmanship under normal use.

  • Resolution: We will repair or replace defective units at no charge.

B. Statutory Rights for EU/UK Customers (EU Compliance)

If you are a consumer residing in the European Union or the UK purchasing from our global site:

  • Statutory Guarantee: You are entitled to a 24-month statutory guarantee for conformity defects present at the time of delivery, in accordance with EU consumer protection laws.

  • Relation: The Standard Limited Warranty (Section 1.A) applies in addition to, and does not replace, your statutory rights.

C. Warranty Exclusions (Applies to ALL Regions)

Warranty coverage is VOID if the damage is caused by:

  1. Misuse: Incorrect installation, reverse polarity, or exceeding voltage limits.

  2. Unauthorized Modification: This explicitly includes soldering, cutting pins, modifying the PCB, or flashing unauthorized/beta firmware that "bricks" the device.

  3. Physical Damage: Drops, moisture/water damage, or electrical surges (lightning).

  4. Normal Wear & Tear: Consumable parts (e.g., batteries), unless defective upon arrival.

Note: For non-warranty repairs (e.g., customer-induced damage), we may offer repair services for a fee. Shipping and diagnostic costs will be borne by the customer.

2. Return & Refund Policy

A. Return Window

  • Standard: You may request a return within 30 days of receiving your order.

  • EU Customers: You have the statutory right to withdraw from the contract within 14 days of receipt without giving a reason.

B. Refund Conditions & Restocking Fees

To protect against policy abuse, the refund amount is strictly determined by the condition of the returned item.

1. Full Refund (100%)

  • The item is Brand New, Unopened, and Unused.

  • The original packaging is intact and sealed.

  • All accessories are present.

2. Partial Refund (Restocking Fee / Value Depreciation)
If the item is returned in a condition that prevents it from being sold as new, OpenELAB reserves the right to deduct a Restocking Fee (or "Compensation for Loss of Value" for EU customers) from the refund.
Deductions apply if:

  • Signs of Use: Visible scratches, mounting marks on screw holes, or fingerprints.

  • Damaged Packaging: Original box is torn, written on, or missing.

  • Technical Modification: The device has been powered on, programmed/flashed, or soldered.

  • Broken Seals: Anti-static bags or security seals have been opened.

Depending on the severity of the usage/damage, the deduction may range from 15% to 50% of the product price. Items damaged beyond repair due to misuse will not be refunded.

C. Shipping Costs

  • Defective / Wrong Item: OpenELAB covers the return shipping cost.

  • Customer Remorse (Changed Mind / Ordered Wrong Item): The customer is responsible for all return shipping costs to our designated return center (located in the US, Germany, or China, depending on your region). Original shipping fees are non-refundable unless required by local law.

3. Return Process (RMA)

To ensure a smooth return process, please follow these steps:

  1. Authorization: Contact us at info@openelab.io before returning any item. Returns without prior authorization will not be accepted.

  2. RMA Number: We will provide you with a Return Merchandise Authorization (RMA) number and the correct return address.

  3. Packing: Ship the item back in its original packaging with the RMA number clearly marked on the shipping label (not on the product box).

  4. Tracking: We strongly recommend using a trackable shipping method. OpenELAB is not responsible for returns lost in transit.
Share

- Pre-Ordering: If an item is unavailable, you can pre-order it. We'll dispatch once stock is replenished. For specific delivery times, please feel free to contact us for inquiries.

- Express Shipping: Need it faster? Contact us via email or through our live chat support, and we'll arrange expedited delivery for you.

Visa
PayPal
Mastercard
American Express
Shop Pay

You want to make a cool robot, maybe a hexapod walker, or maybe just a piece of art with a lot of moving parts. Or maybe you want to drive a lot of LEDs with precise PWM output. Then you realize that your microcontroller has a limited number of PWM outputs! What now?


You could give up or you could just get this handy PWM and Servo driver breakout.
When we saw this chip, we quickly realized what an excellent add-on this would be. Using only two pins, control 16 free-running PWM outputs! You can even chain up 62 breakouts to control up to 992 PWM outputs (which we would really like to see since it would be glorious).



It's an i2c-controlled PWM driver with a built in clock. That means that, unlike the TLC5940 family, you do not need to continuously send it signal tying up your microcontroller, its completely free running!


It is 5V compliant, which means you can control it from a 3.3V microcontroller and still safely drive up to 6V outputs (this is good for when you want to control white or blue LEDs with 3.4+ forward voltages)

  • 6 address select pins so you can wire up to 62 of these on a single i2c bus a total of 992 outputs - that's a lot of servos or LEDs
  • Adjustable frequency PWM up to about 1.6 KHz
  • 12-bit resolution for each output - for servos, that means about 4us resolution at 60Hz update rate
  • Configurable push-pull or open-drain output
  • Output enable pin to quickly disable all the outputs
  • We wrapped up this lovely chip into a breakout board with a couple nice extras terminal block for power input (or you can use the 0.1" breakouts on the side)
  • Reverse polarity protection on the terminal block input
  • Green power-good LED
  • 3 pin connectors in groups of 4 so you can plug in 16 servos at once (Servo plugs are slightly wider than 0.1" so you can only stack 4 next to each other on 0.1" header
  • A spot to place a big capacitor on the V+ line (in case you need it)
  • 220 ohm series resistors on all the output lines to protect them, and to make driving LEDs trivial
  • Solder jumpers for the 6 address select pins
  • This board/chip uses I2C 7-bit address between 0x40-0x7F, selectable with jumpers


Specification

  • This board/chip uses I2C 7-bit address between 0x60-0x80, selectable with jumpers
  • Dimensions (no headers or terminal block) 2.5" x 1" x 0.1" (62.5mm x 25.4mm x 3mm)
  • Weight (with 3x4 headers & terminal block): 9grams


Connection Diagram


thumb

I2C Communication Address Settings

  • For Hardware:

thumb

thumb

Pin A5-A0 is suspended on the module.
The default address is 100 000, that is 40.
We are able to add 0Ωresistance appropriately in the A5-A0; set the communication addresses.
If the pin A5 - A0 all add 0Ωresistance, the address is 111, 1111, that is 7F.

  • For Software:

// called this way, it uses the default address 0x40
Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver();
// you can also call it with a different address you want
//Adafruit_PWMServoDriver pwm = Adafruit_PWMServoDriver(0x41);
