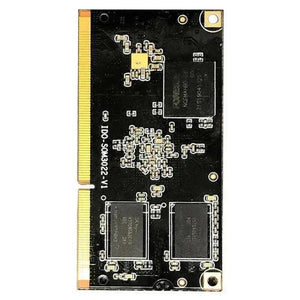

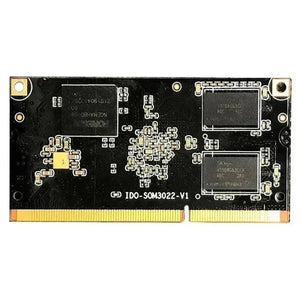

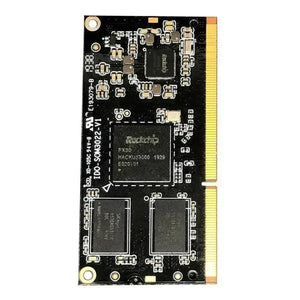

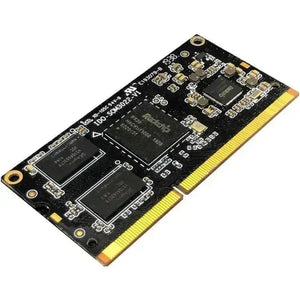

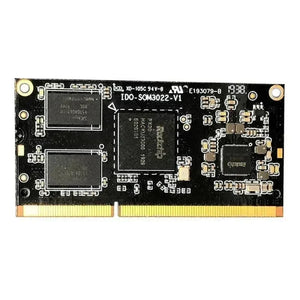

The core board uses the SODIMM 204P interface, which has the best data transmission and expansion performance. The pins are immersed in gold to resistant corrosion . The core board is fixed with 2 studs as a whole, which is firm and reliable, and has a compact and beautiful layout,and have a good heat dissipation effect.Design size is only 67.8mm x 33.7mm, saving more valuable space. Working temperature 0 ℃ -80 ℃, long-term running performance is stable.
Product Parameters
1.Specification Details
|
Product Type
|
SOM board
|
Part Number
|
IDO-SOM3022-DIE8-C
|
|
SoC
|
Rockchip PX30, ARM Coretex-A35 quad-core 64-bit CPU, frequency up to 1.5 GHz;
|
GPU
|
Mali-G31 MP2 advanced GPU
|
|
DDR3
|
DDR3 1600MHz default 1G（2G optional）
|
eMMC
|
Emmc 5.1 default 8GB (16GB~32GB optional)
|
|
System
|
Android or Linux System
|

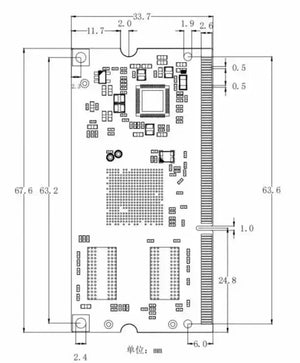

Dimension
|
67.8 x 33.7 x 5 mm
|
|
Video processor
|
Multi-format 1080P 60fps video decoding (H.265, H.264, VC-1, MPEG-1 / 2/4, VP
|
Ethernet
|
10/100M bps ethernet
|
|
WIFI
|
Provide SDIO3.0 signal, support 2.4GHz/5GHz dual-band WiFi, 802.11a/b/g/n/ ac protocol
|
Display
|
Support RGB/LVDS/MIPI-DSI interface，support dual-VOP(Dual screen display)，Resolution up to 1920*1080
|
|
Audio
|
Support 1 x 8ch I²S /TDM、 1×8ch PDM、 1×2ch I²S/PCM 1 x Speaker（ 8Ω， 1.3W） 1 x headphone output
|
Camera
|
MIPI-CSI 4 Lane
|
|
USB
|
1 x OTG， 1 x USB2.0 HOST
|
Infrared
|
Support infrared remote control function
|
|
Extension
|
4×I2C， 6×UART， 2×SPI， 8×PWM、 support SDIO
|
Power
|
DC input 5V
|
|
Interface type
|
Gold finger（SODIMM standard 204P interface， 0.5mm Pitch）
|
PCB design
|
6-layer board
|
