Brief introduction:
IDO-SBC2D06-V1B-22W SBC module with SigmaStar SSD202 dual-core Cortex-A7 processor @ 1.2 GHz with 2D GPU, 128MB DDR3, 2Gbit SPI NAND flash
* Storage – MicroSD card slot
* Display – 4-lane MIPI DSI connector for 4-inch RGB565 display or 7-inch RGB888 display
* Audio – 2-pin Microphone connector
* Connectivity * Dual 10/100M Ethernet ports
* Sigmastart SSW101B 802.11b/g/n 2.4GHz 1T1R WiFi 4 module + u.FL antenna connector
* USB – 1x USB port, 1x Micro USB port
* Expansion * 40-pin expansion header with GPIO, UART, DMIC, USB, etc… as well as 5V, 3.3V and GND power signals
* 6-pin UART header
* Debugging – 4-pin UART console connector
|
CPU
|
SigmaStar SSD201/SSD202
ARM® Cortex-A7 dual-core processor, up to 1.2GHz |
|
Video processor
|
supports max. resolution FHD(1920x1080)/60 fps decode. ， H.265/HEVC decoder，I/P/B slices，all intra-prediction modes,
all inter-prediction modes，supports max. resolution HD(1920x1080)/60 fps decode |
|
RAM
|
Built-in DDR2/DDR3 memory, support auto-refresh and self- refresh modes, 64MB by default (up to 128MB)
|
|
Storage
|
Supports 1/2/4-bit SPI-NOR/SPI-NAND Flash，128MB by default（up to 512MB）
|
|
OS
|
Linux
|
|
Ethernet
|
1-channel 10/100Mbps half duplex/full duplex Ethernet
|
|
WIFI
|
Equipped with Singmaster wifi chip (SSW101B), with high performance and 500m transmission distance in open space
|
|
Display
|
Video output interface:
-1 x RGB, support FHD (1920x1080)/60 fps decoding output, with 1024*600 IPS RGB module by default |
|
Audio
|
1 x left and right channel speaker (PH-4 connector)
|
|
Serial Port
|
1x DEBUG（PM_UART）
1 x RS232 1 x RS485 |
|
USB
|
1x USB 2.0（USB female）
|
|
TF Card
|
1 x Micro SD card standard（support SDIO2.0）
|
|
RTC
|
1220 button battery, easy to maintain
|
|
Extension
|
4 x GPIO
|
|
Power input
|
Default USB TYPE-C power supply;
Optional 4.5~30V DC @1A power supply |
|
PCBA dimensions
|
122mm x 73mm
|

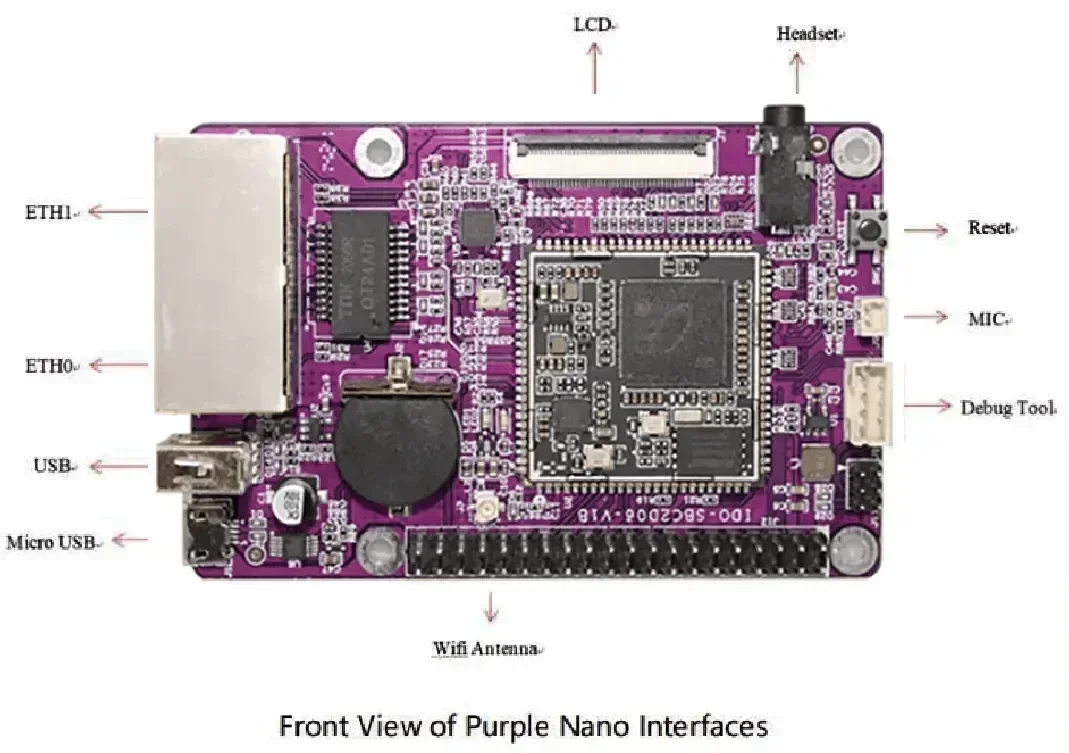

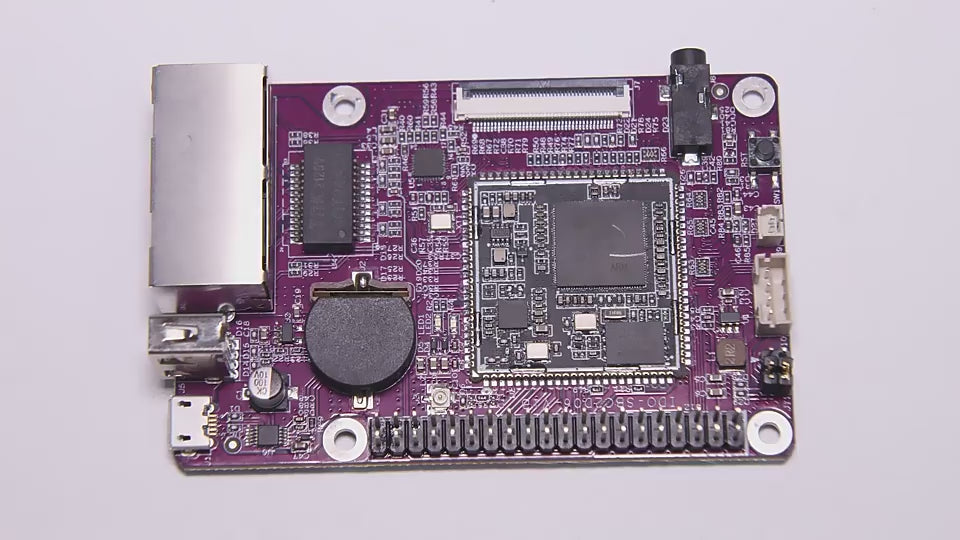

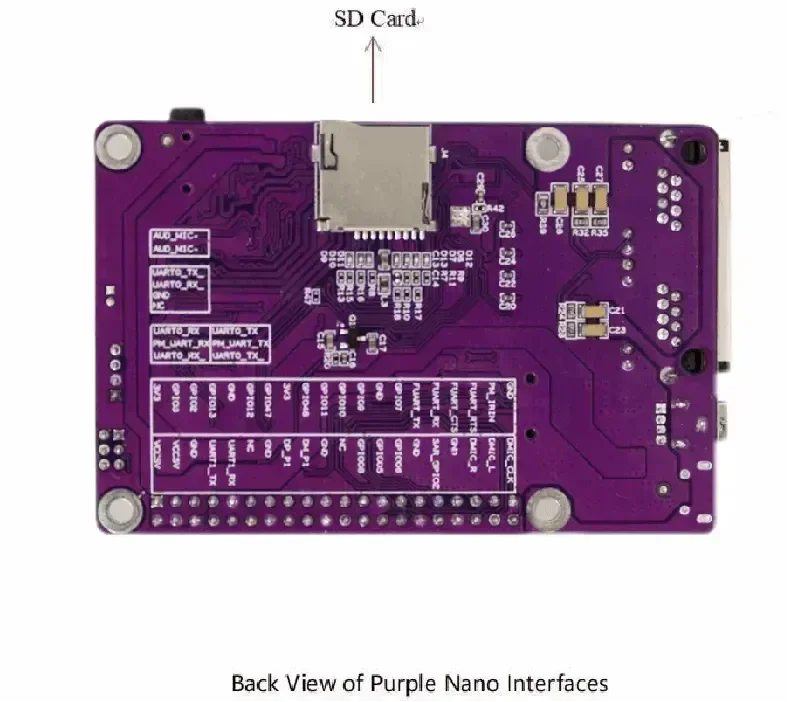

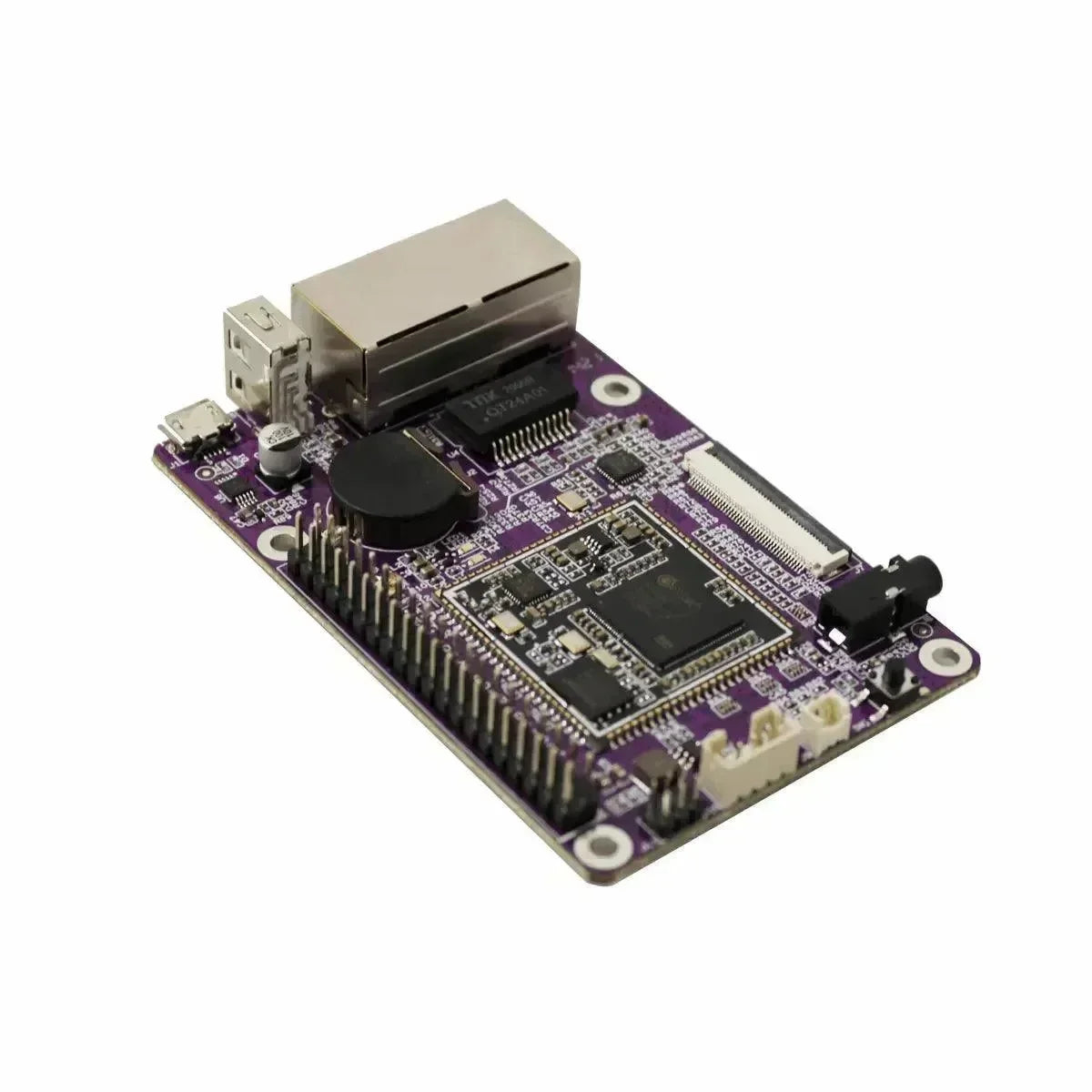

Details Images
