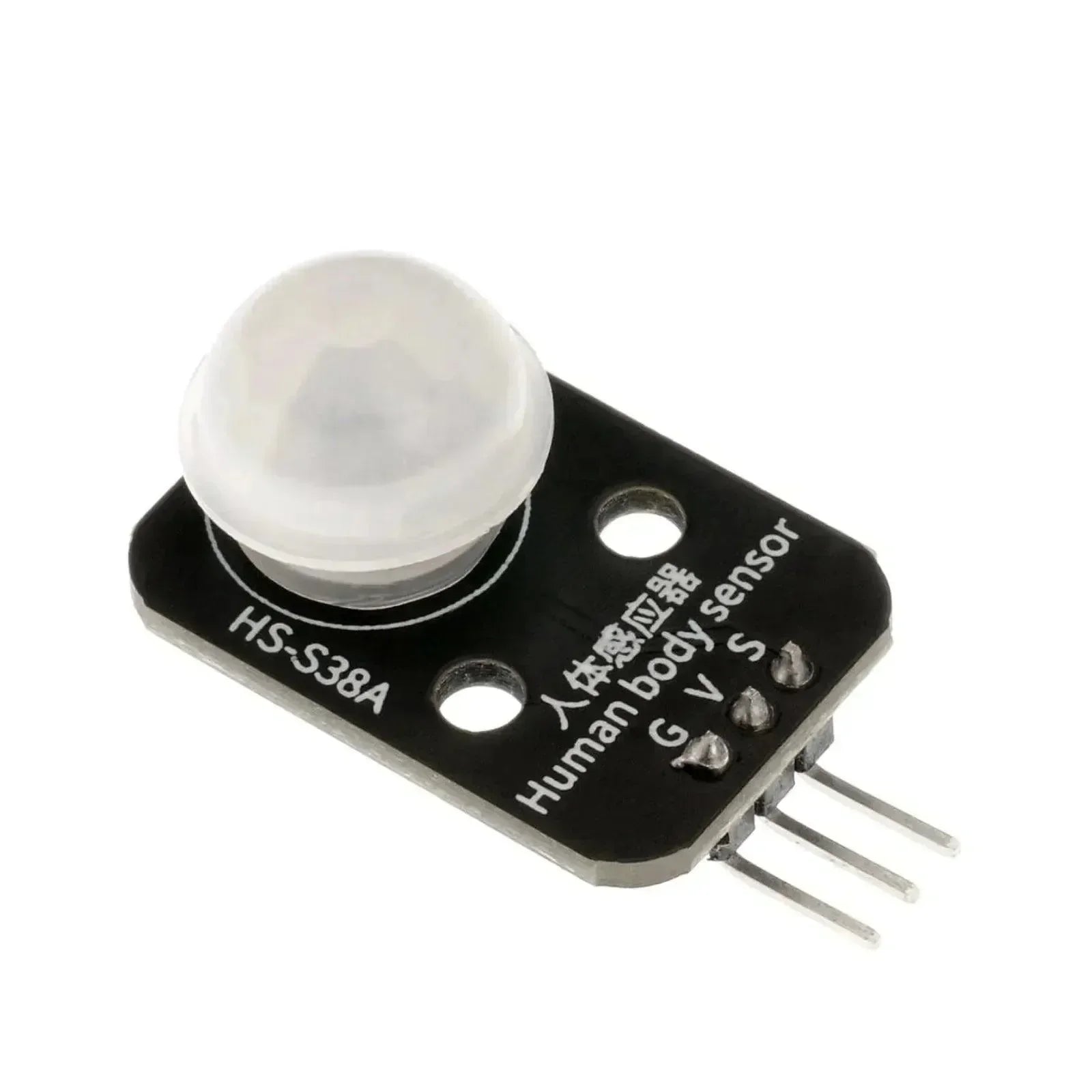

The small human body induction module is an automatic control product based on infrared technology, known for its high sensitivity, strong reliability, ultra-small size, and ultra-low voltage operation mode. It is widely used in various automatic sensing electrical devices, especially those powered by batteries.
Features:
- Automatic Sensing: When a person enters the sensing range, the module outputs a high-level signal. When the person leaves the sensing range, it automatically delays and turns off the high-level output, switching to a low-level signal.
- Repeatable Trigger Mode: After the module outputs a high-level signal if a person moves within the sensing range during the delay period, the output will remain high until the person leaves, at which point the high-level output will delay and then switch to low-level. Each detected movement within the sensing range resets the delay period, starting from the last detected movement.
Module Parameters
Pin Descriptions:
| Pin Name | Description |
|---|---|
| G | GND (Power Input Ground) |
| V | VCC (Power Input Positive) |
| S | Signal Output Pin |

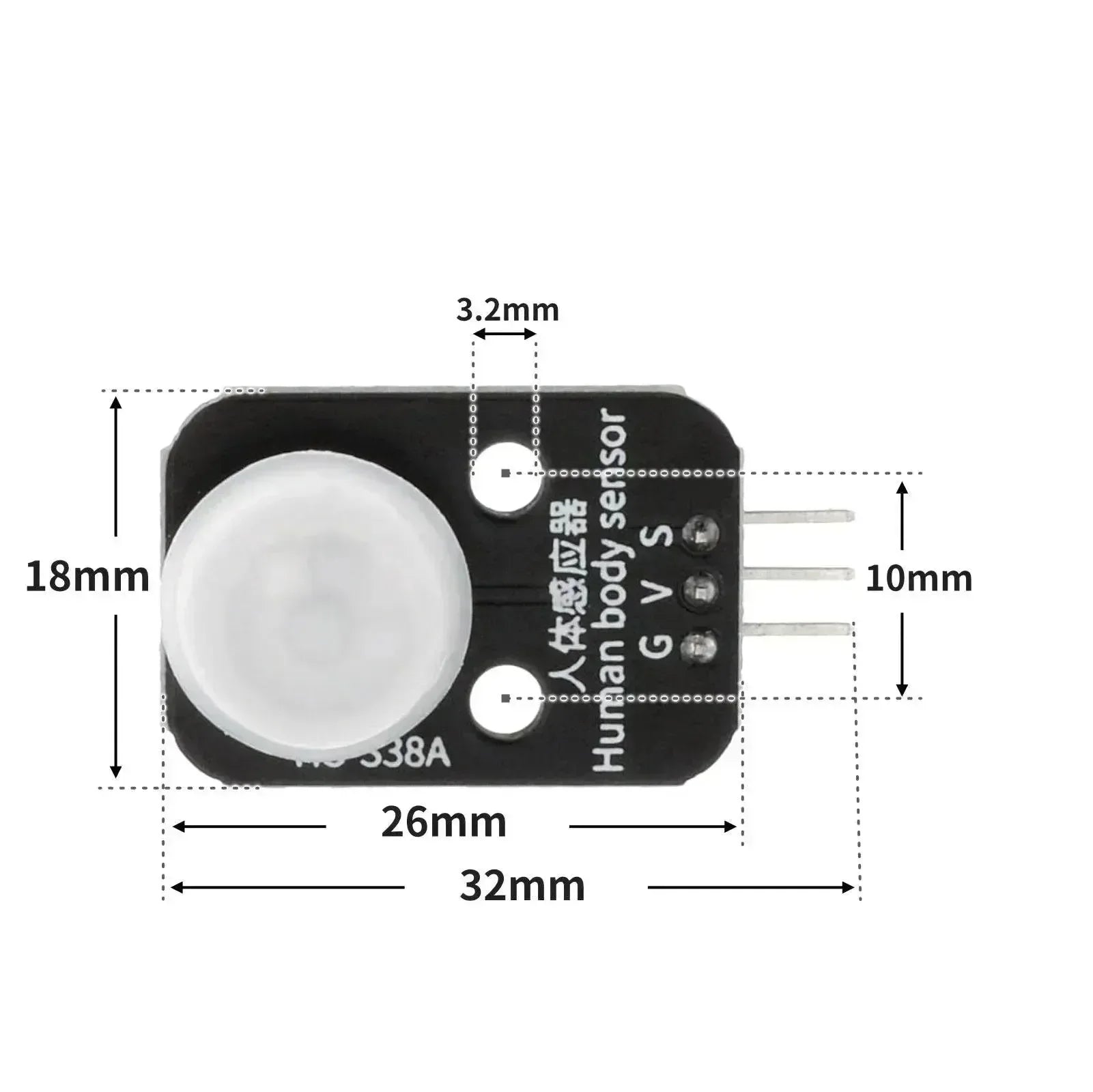

Specifications:
- Supply Voltage: 3.3V / 5V
- Connection Method: 2.54mm Pin Header
- Mounting Method: Fixed with Double Screws
Schematic Diagram
