HELTEC MeshPocket Qi2 Magnetic Charging Power Bank Meshtastic 868Mhz
Need it faster? Contact us via phone or email for expedited delivery.
HELTEC MeshPocket Qi2 Magnetic Charging Power Bank Meshtastic 868Mhz
The HELTEC MeshPocket isn’t just a Qi2 magnetic power bank—it’s a Meshtastic-ready powerhouse engineered for the outdoors and off-grid communication. Equipped with Bluetooth, LoRa (SX1262), and a crisp e-ink display, it offers seamless integration with Meshtastic mesh networks right out of the box. Whether you're hiking remote trails, coordinating in emergency scenarios, or exploring open-source development, the MeshPocket enhances your Meshtastic experience with reliable power and long-range connectivity—all in one compact, intelligent device.
Features
🔋 Dual Capacity Options: Choose between 5000mAh or 10000mAh battery sizes
⚡ Qi2 Compatibility: Supports the latest Qi2 wireless charging standard
📶 Versatile Wireless Charging: Compatible with 5W / 7.5W / 10W / 15W wireless modes
🔌 Fast Wired Charging: Delivers 9V-2.22A and 5V-3A USB-C input/output power
🔄 Wide Protocol Support: Works with PD, AFC, Huawei and other mainstream protocols
🔋🔁 Simultaneous Power Flow: Charge other devices while recharging the power bank
🛡️ Comprehensive Protection: Built-in safeguards against voltage spikes, shorts, overheating & more
📡 Integrated Communication: Features nRF52840 (BLE) + SX1262 (LoRa) for advanced connectivity
🖋️ E-Ink Display: 2.13" screen offers clear, sun-readable updates with minimal power draw
💻 Custom Firmware Ready: Full support for DIY devs and embedded applications
🌐 Meshtastic-Ready: Pre-flashed and ready to plug into your Meshtastic network
Specifications
| Parameters | Description |
|---|---|
| Battery capacity |
5000mAh/3.87V (19.35Wh) 10000mAh/3.87V (38.7Wh) |
| Rated capacity | 3500mAH (USB-C, 5V-2A) |
| Battery type | Lithium polymer battery |
| Working temperature |
Charging: 0~45℃ Discharging: -10~45℃ |
| Storage temperature | -20℃~55℃ |
| USB-C | Input: 9V-2.22A，5V-3A Output: 9V-2.22A，5V-3A |
| Battery charging limit voltage | 4.4V |
| Wireless Charging output | 5W, 7.5W, 10W, 15W |
| Charge+Discharge | USB-C output (10W) + Wireless charging (5W) |
| Shell material | ABS, Tempered glass |
| Dimensions | 102.00*74.10*10.80 (unit: mm) |
| Weight |
140g (5000mAh) |
| RF chip | nRF52840(BLE), SX1262(LoRa) |
| E-Ink | 2.13 Inch |
Components
Dimensions
Highlights
-
Meshtastic Compatible: Equipped with the nRF52840 chip and high-performance SX1262 LoRa RF chip. Preloaded with Meshtastic firmware and supports firmware upgrades via a web interface.
-
Supports Qi2: Supports the Qi2 standard, with devices certified by the WPC to ensure compatibility and safety.
-
Versatile Wireless Charging: Wireless Charging Support for 5W, 7.5W, 10W, and 15W.
-
Robust USB-C: Supports 9V-2.22A and 5V-3A USB-C input and output protocols. Supports industry-standard protocols like PD, AFC, and Huawei adapter protocols.
FAQ
🔌 Can wireless and wired charging be used at the same time?
Yes — when both are active, wired charging delivers 10W while wireless charging provides 5W simultaneously.
🐢 Why is wireless charging slow?
Double-check that your phone supports Qi or Qi2 wireless charging protocols. Incompatible devices may charge slowly or not at all.
🔕 How do I disable Meshtastic?
Press and hold the USER button on the side of the device to turn off Meshtastic functionality.
💧 Is MeshPocket waterproof?
Currently, the MeshPocket does not feature waterproofing, so avoid exposure to water or extreme moisture.
🔋 Does it support charging and discharging at the same time?
Yes! You can charge the MeshPocket via USB-C while wirelessly powering your phone. > Current power split: Wired input → 10W, Wireless output → 5W (subject to input source limitations).
📏 Are there size or weight differences between the 5000mAh and 10000mAh models?
Yes — while their length and width are identical, the thickness and weight differ:
-
5000mAh: 12mm thick, 140g
-
10000mAh: Slightly thicker and heavier (spec not yet listed here)
Precautions
⚠️ Wireless Charging Alert: If output is abnormal or a foreign object (FOD) is detected, the indicator flashes yellow and resets within 5 seconds after removal.
🕹️ Control with Ease: Use the right-side buttons to navigate the Meshtastic interface.
🔋 Battery Maintenance: Charge at least once every 3 months to preserve battery health.
🔥 Avoid Heat Exposure: Keep away from high-temperature areas like cars, direct sunlight, heaters, microwaves, ovens, etc. — risk of explosion!
🚫 No Uncertified Chargers: Only use original or certified cables/adapters to prevent fire or damage.
📦 No Sealed Spaces: Don’t leave the device in unventilated places (like handbags) for long periods — potential fire hazard.
🔧 Do Not Disassemble: Contains lithium-ion batteries — opening the case may cause battery damage or fire.
💥 Handle With Care: Avoid dropping, puncturing, squeezing, or exposing it to water or fire. ♻️ Dispose of properly according to local regulations — never in household trash!
⛈️ No Use During Storms: Avoid using during thunderstorms to prevent malfunction or electric shock.
💦 Keep Dry & Intact: Avoid contact with liquids and discontinue use if battery shows swelling, leakage, or deformity.
🧒 Child Safety: Keep this product out of reach of children.
Docs & Resource
- [Attachment] — Shematic diagram (BLE and LoRa part)
- [Attachment] — Datasheet
- [Resource] — Related Resources
- [Resource] —Heltec nRF52 framework and Lib

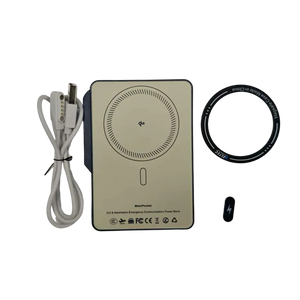

Packing List
The default packing list (without selecting any accessories) includes:
| Item | Quantity |
|---|---|
| MeshPocket | x1 |
| USB-C to USB-C Cable | x1 |
| Paper Manual | x1 |
| 3M magnetic sticker | x1 |
| USB-A to Magnetic Data Cable | x1 |
