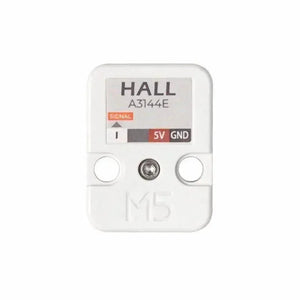

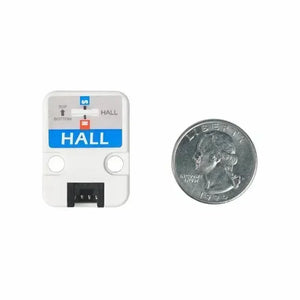

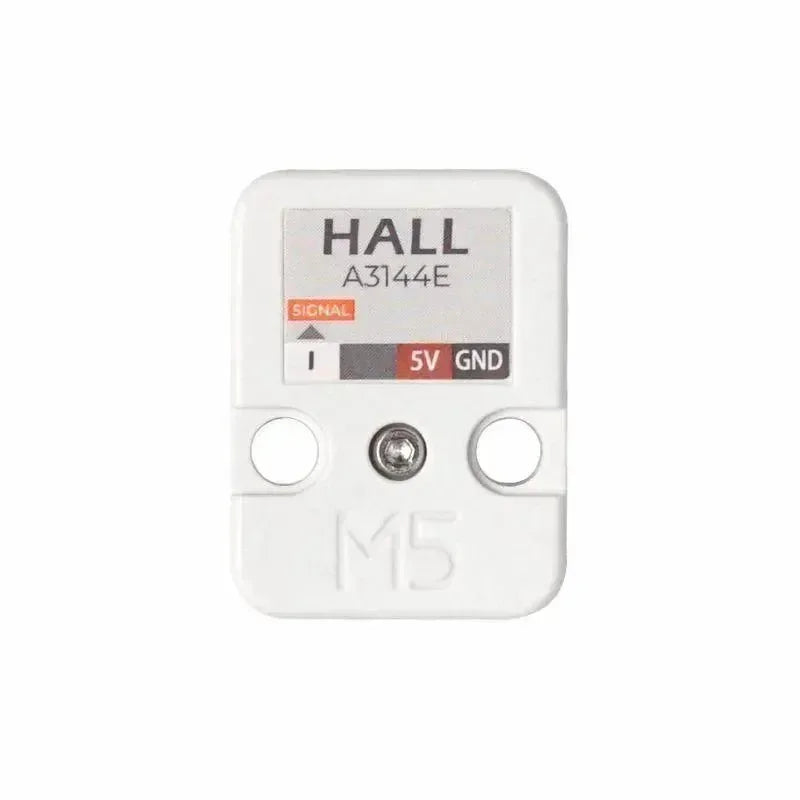

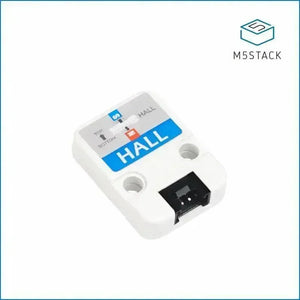

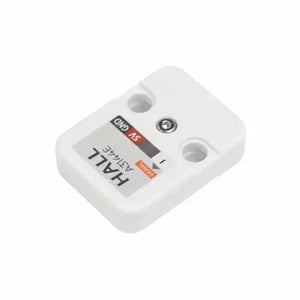

Hall Effect Unit (A3144E Hall Sensor)
Hall effect Unit integrated with three A3144E Hall sensor switches which are processed by 74HC series gate integrated circuits.
Low-level signal can be generated when the magnet S pole is close to the top of the sensor or the N pole is close to the back, and the internal LED indicator will light up.
It is widely used in applications such as door sensor alarms, proximity sensors, rotation speed measurement and so on. The front side is the North pole, and the low level is output when the south pole signal of the magnetic field is sensed.
Future
- Unipolar Hall switch sensor
- Fast response and high sensitivity
- Status indicator
- Low-level output
- Lego compatible

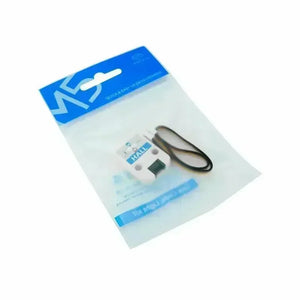

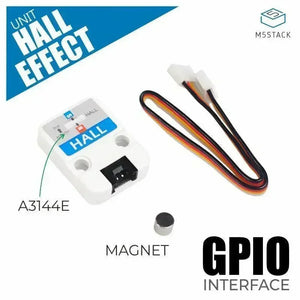

Include
- 1x Hall effect Unit
- 1x GROVE Cable(20cm)
- 1x Magnet
Application
- Door sensor alarm
- Magnetic field proximity sensing
- Speed measurement
Specification
| Hall sensor | A3144E * 3 |
| Logic IC | 74HC08D |
| Status indication | RED LED |
| Output Level | Active Low |
| Net weight | 4g |
| Gross weight | 17g |
| Product Size | 24*32*8mm |
| Package Size | 67*52*11mm |
