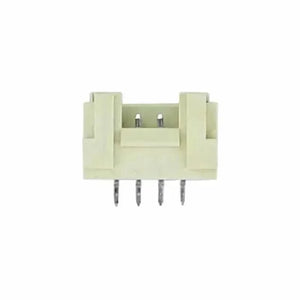

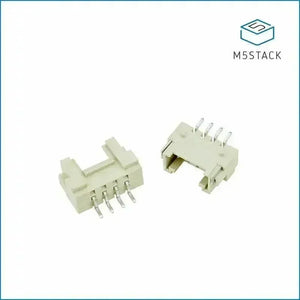

The HY2.0-4P SMD is a 2.0mm-4Pin Grove connector that is equipped with a locating pin. The application of this component to a printed circuit board (PCB) design facilitates a more straightforward and expedient connection to the M5Stack Unit system, thereby enabling the expansion of a greater range of functions.
Features
- HY2.0-4P

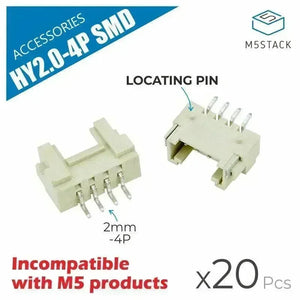

- With Locating Pins
- Suitable for PCB SMD
Include

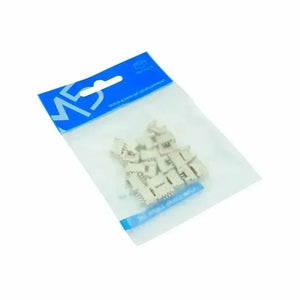

- 20x HY2.0-4P-SMD
Size
Reflow Profile
Specifications
| Specifications | Parameters |
|---|---|
| Pitch | 2.0mm |
| PIN number | 4P |
| Appearance | R-90° (with PIN feet) |
| Working temperature | -25 ~ 105°C |
| Insulation resistance | ≥1000MΩ |
| Single net weight | 0.4g |
| Set gross weight | 11g |
| Product size | 56 * 24 * 9.6 mm |
| Packing size | 93 * 138mm |
