Gravity: UART & I2C NFC Module

€29,90

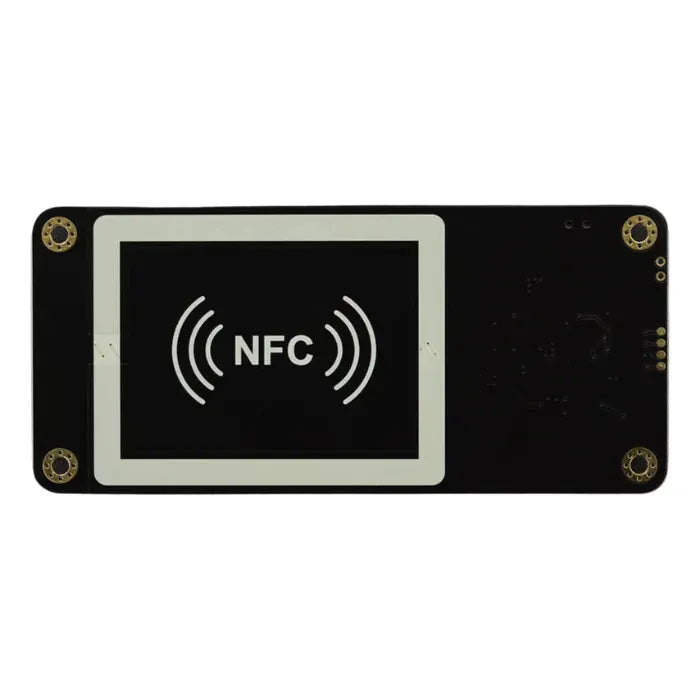

The Gravity: UART & I2C NFC Module is built around the NXP PN532, a highly integrated NFC controller that supports a wide variety of NFC cards and tags, including MIFARE Classic and NTAG series.

This upgraded version adopts the Gravity standard PH2.0-4P interface, making it easy to switch between UART and I2C communication protocols. With improved PCB antenna design, this module ensures greater reading range and better signal quality.

It works seamlessly with popular 3.3V/5V controllers like Arduino, micro:bit, FireBeetle ESP32, and ESP8266.



About NFC

NFC (Near Field Communication) is a short-range, high-frequency communication technology that allows contactless data transmission within 10 cm. It evolved from RFID and is widely used for mobile payments, access control, ID authentication, and device pairing. NFC is also backward compatible with RFID and supports various modes such as reader/writer, card emulation, and peer-to-peer (P2P) communication.



Key Features

  • NXP PN532 NFC controller with high integration

  • Dual communication modes: I2C & UART composite interface

  • Supports a wide range of NFC cards and tags

  • Compatible with 3.3V / 5V controllers

  • Gravity interface for plug-and-play development



Applications

  • Contactless payment systems

  • Smart card-based login or door access

  • Bluetooth and Wi-Fi device pairing

  • NFC-based smartphone interaction

  • Social sharing (photos, videos, contacts)



Connection Diagram

  • Arduino UNO I2C connection

  • PC UART communication

  • MEGA2560 UART wiring



Technical Specifications


Parameter Details
IC NXP PN532
Voltage 3.3V ~ 5.5V
Interface Gravity UART & I2C (PH2.0-4P)
UART Baud Rate 115200 bps
I2C Address 0x48
Frequency 13.56 MHz
Communication Distance ≥10 mm (depends on card type)
Protocol Support ISO/IEC 14443A/B, MIFARE, Felica
Card Emulation Mode ISO 14443A / MIFARE Classic 1K or 4K, Felica
Peer-to-Peer Mode ISO/IEC18092, ECM340
Dimensions 110 × 50 mm / 4.33 × 1.97 in
Weight 20g

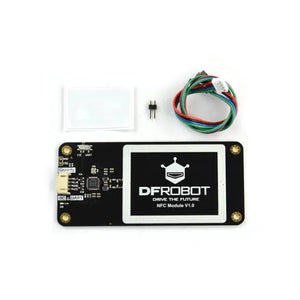

Shipping List

  • 1 × Gravity: UART & I2C NFC Module

  • 1 × Gravity-4P I2C/UART Sensor Wire (PH2.0-4P)

  • 1 × XH2.54-2P Black Header

  • 1 × NFC Tag Sticker



Reference

Product wiki
