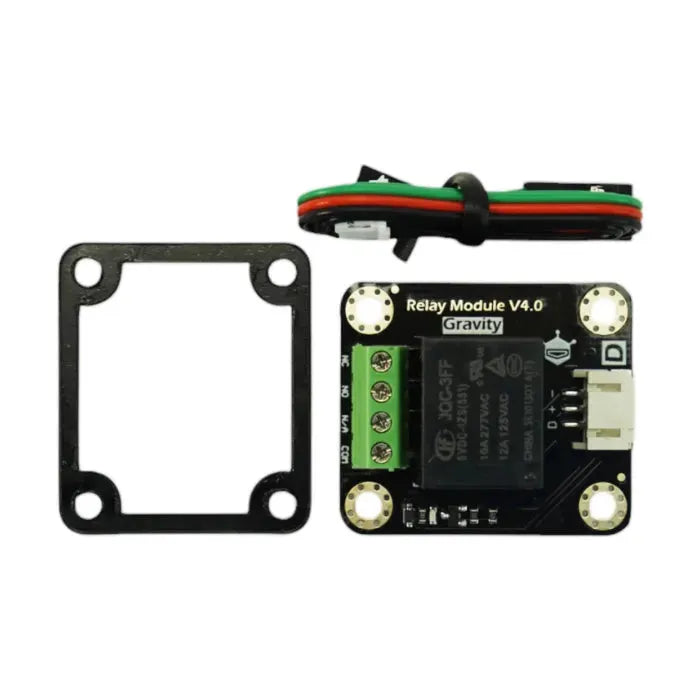

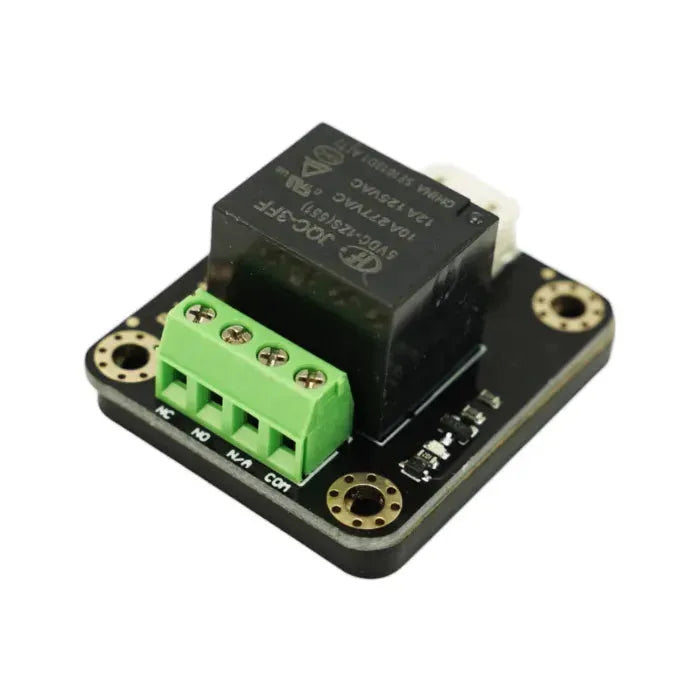

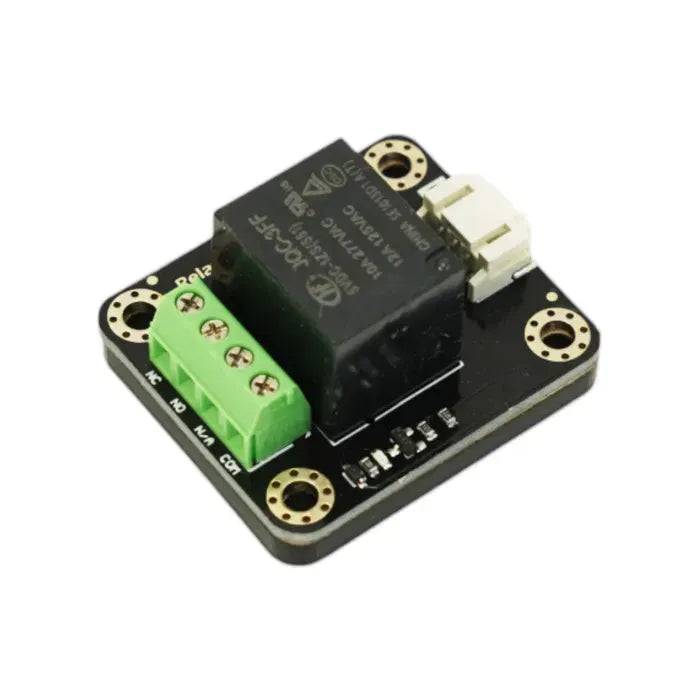

Gravity: Digital 5A Relay Module for Arduino
The Gravity Relay Module is a reliable, easy-to-use solution for switching high-voltage or high-current devices using low-voltage control signals from Arduino or other microcontrollers. Perfect for home automation, smart appliances, and industrial control, this digital relay module bridges the gap between high-power devices and your microcontroller projects.
Designed for plug-and-play compatibility with Arduino, this module includes a status LED for real-time visual feedback, allowing you to monitor relay activation at a glance. It supports a wide range of applications, from lighting and motors to electromagnetic valves and solenoids.
Key Features
-
Single-channel high-current relay module
-
TTL-level digital control (0–0.4V OFF, 2.4–5V ON)
-
Works with Arduino, ESP32, Raspberry Pi, and other controllers
-
Supports up to 250VAC / 30VDC switching
-
Integrated status LED indicator
-
Durable design with high-quality gold-plated connectors
-
Suitable for controlling lighting systems, fans, pumps, motors, and more
Technical Specifications
-

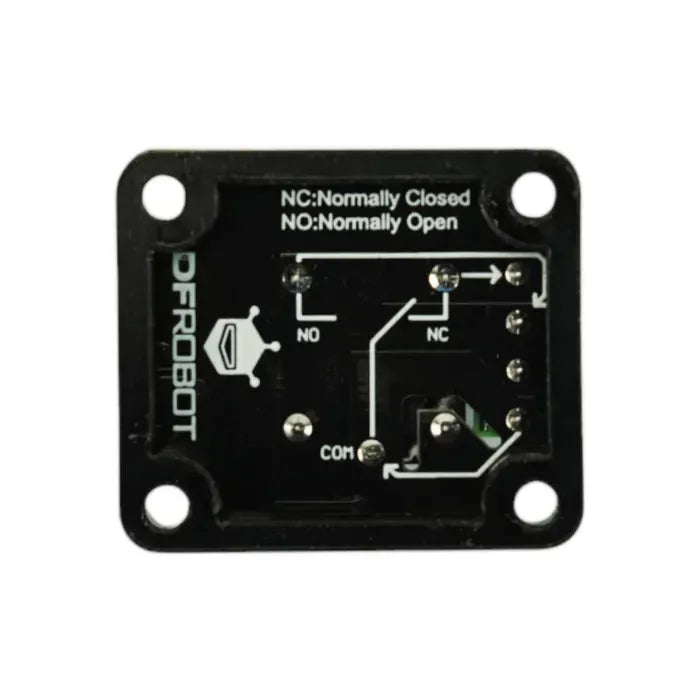

Rated Through Current: 10A (Normally Open), 5A (Normally Closed)
-
Maximum Switching Voltage: 150VAC or 24VDC
-
Contact Rating (Resistive Load): 10A @ 250VAC / 24VDC
-
Max Switching Voltage: 250VAC / 30VDC
-
Max Switching Current: 15A
-
Max Switching Power: 250VA / 240W
-
UL Certified Rating: 10A @ 120VAC / 250VAC
-
Operating Time (Nominal): 10ms
-
Release Time (Nominal): 5ms
-
Interface: Digital (TTL)
-
High-quality connector with immersion gold finish
Compatibility & Notes
This relay module operates at 5V logic level and is compatible with most Arduino boards. For 3.3V systems like ESP32 or Raspberry Pi Pico, you may need a relay that supports 3.3V triggering or use a level shifter.
If you need PWM-based control such as adjusting brightness or fan speed, consider using the Gravity: MOSFET Power Controller, which is designed for smooth analog power control.
Applications
-
Smart home automation
-
Solenoid valves and electronic locks
-
High-power lighting systems
-
AC/DC motor control
-
DIY security systems
-
Industrial equipment control
