In life, it is becoming more and more popular to use GPS positioning. As for Arduino MCU DIY experiments, is there a GPS positioning shield that can be compatible with the Arduino MCU?

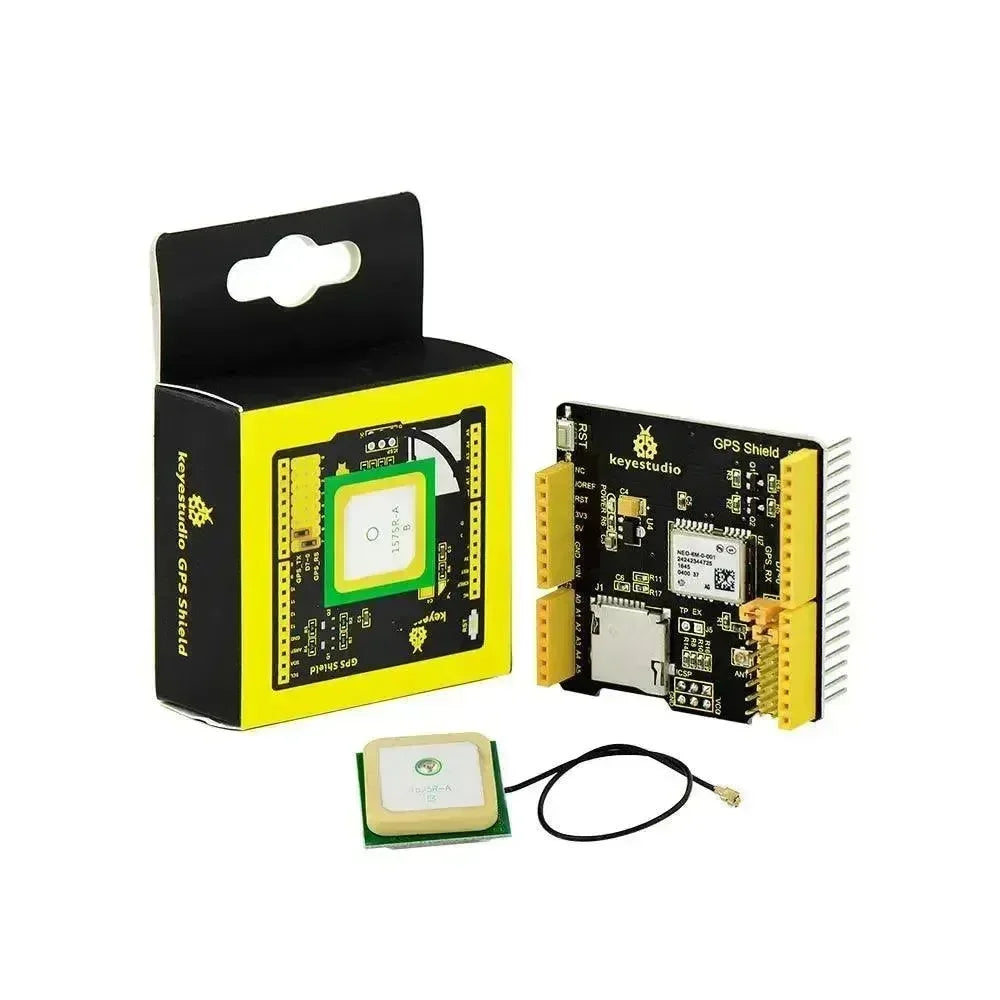

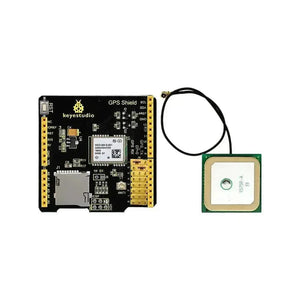

Well, use this GPS shield. It is based on the NEO-6M-0-001 module, and those pins are also compatible with UNO R3 and MEGA 2560 control board.
Regular GPS pins (RX, TX) are connected to Arduino D0-D7, and you are able to set the connection pin via the jumper cap.

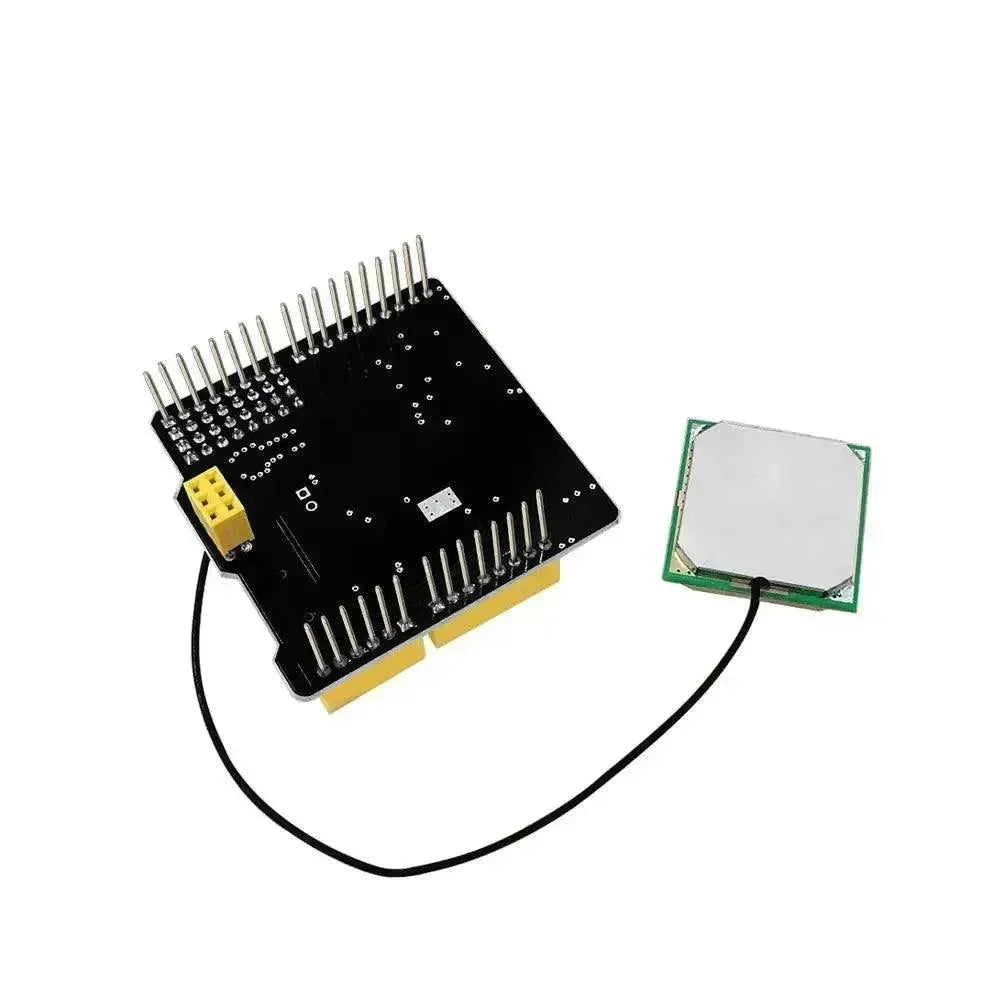

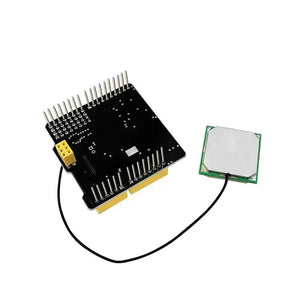

An active antenna is mounted on the GPS shield, allowing you to find your exact location within a few meters. Meanwhile, GPS also provides you with very accurate time!
It can be used in car navigation, personal positioning, fleet management, navigation, and navigation.
In particular, this expansion board can only be positioned outdoors and cannot be used for indoor positioning.
Using an active GPS antenna
Connecting TxD and RxD to Arduino pins (D0-D8 optional) with jumper, and the default jumper caps are D7<-->RX and D6<-->TX.

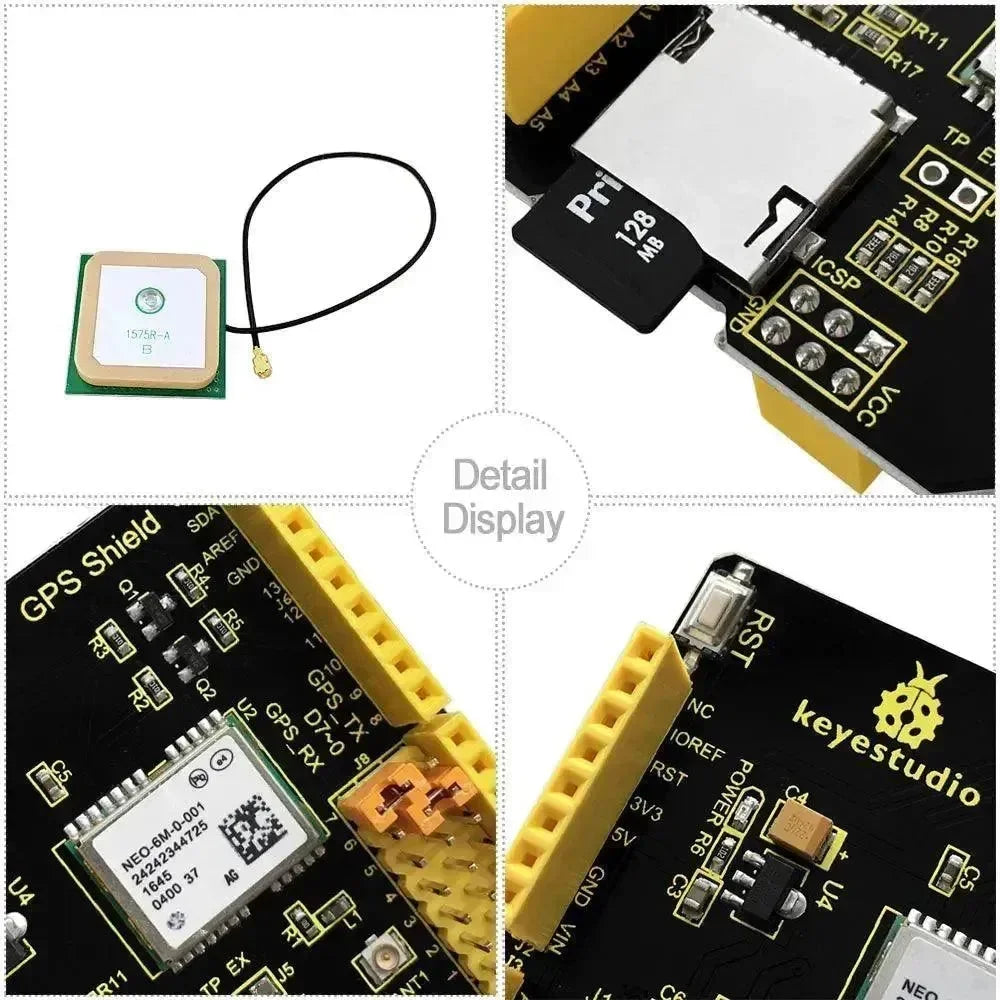

Onboard comes with a SD card socket
Comes with an ICSP pin
Comes with a reset button to reset the Arduino control board
GPS shield dimensions: 54mm*53mm*24mm
Antenna dimensions: 28mm*28mm*7mm
Antenna lead length: 142mm
Weight: 32g
