GigaDevice GD32C231K-START Starter Kit with GD-Link Debugger

57,75 €

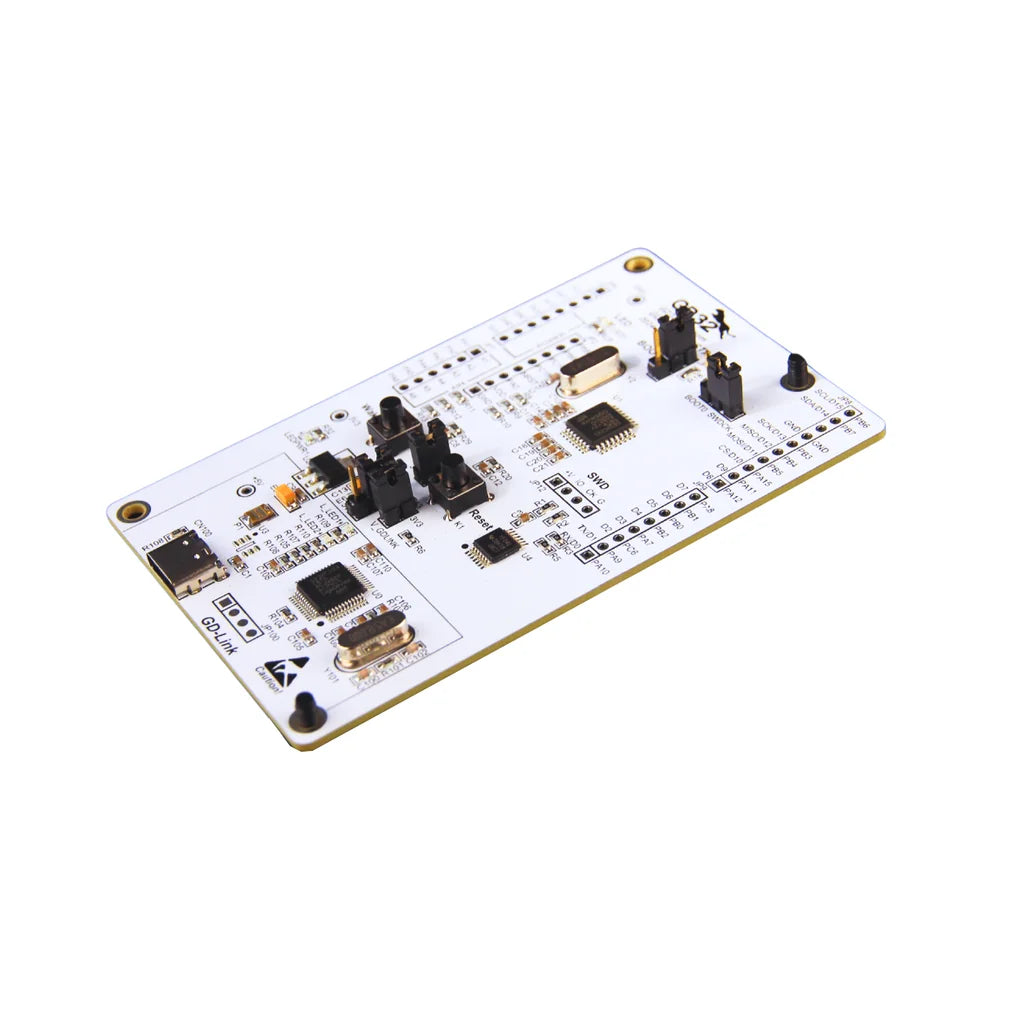

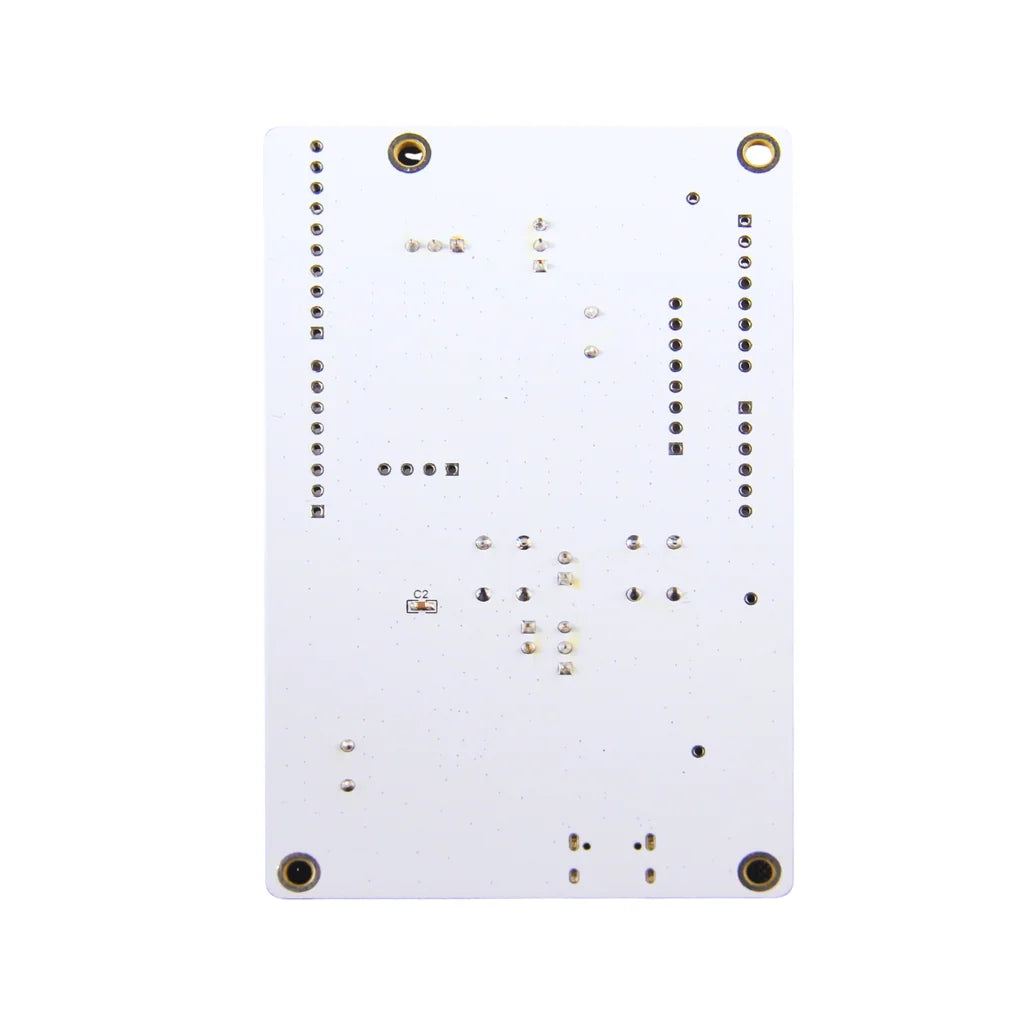

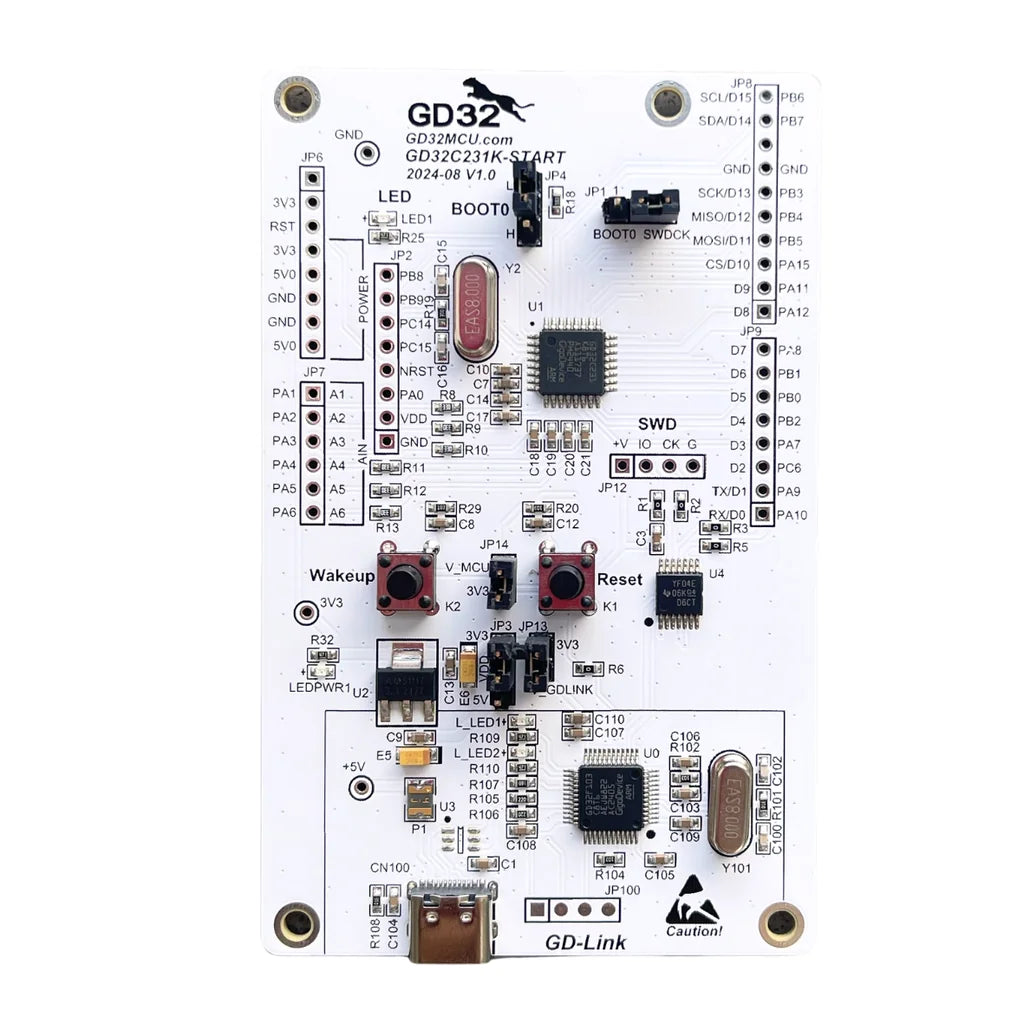

The GD32C231K-START is a comprehensive starter kit from GigaDevice for the GD32C231 series of entry-level 32-bit microcontrollers. Featuring the GD32C231K8T6 MCU with an ARM Cortex-M23 core running up to 72 MHz, the board integrates a GD-Link debugger for rapid prototyping and application development. With 64 KB Flash, 12 KB SRAM, and low-power modes down to 2–5 µA in standby, it is ideal for battery-powered IoT and industrial applications.

Features

  • ARM Cortex-M23 Core: 32-bit RISC with TrustZone, up to 72 MHz
  • Integrated GD-Link Debugger: USB-based SWD programmer/debugger
  • 64 KB Flash + 12 KB SRAM: Memory for applications and data buffering
  • Analog Features: 12-bit ADC (1 MSPS), dual comparators
  • Connectivity: 2× USART/UART (LIN/IrDA/RS-485), 2× I²C, 1× SPI/I²S
  • 27 GPIO Pins: LQFP32 package, all accessible via headers
  • Low Power Modes: Sleep, Deep-sleep (~10–20 µA), Standby (~2–5 µA)
  • Voltage Range: 1.8 V to 3.6 V

Specifications

Parameter Value
MCU GD32C231K8T6 (LQFP32)
CPU Core ARM Cortex-M23 with TrustZone
Max Clock 72 MHz
Flash 64 KB
SRAM 12 KB
GPIO 27 pins
ADC 12-bit, 1 MSPS, 10 channels
Comparators 2
Timers 1× Advanced + 2× GP + 2× Basic
USART/UART 2 (LIN, IrDA, RS-485)
I²C 2 (Standard/Fast/Fast+)
SPI/I²S 1
Voltage Range 1.8 V to 3.6 V
Temperature −40 °C to +85 °C / −40 °C to +105 °C
Debugger GD-Link (SWD)
Package LQFP32 (7 × 7 mm)

Application

  • Industrial Control: Motor control, sensor interfacing, automation
  • Consumer Electronics: Smart devices, appliances, wearables
  • IoT: Sensor nodes, gateways, edge computing
  • Motor Control: BLDC, stepper, and servo systems
  • Education: University labs and student projects
  • Prototyping: Rapid embedded system development

Packing List

  • 1× GD32C231K-START Board (with integrated GD-Link debugger)

Related Products

FAQ

What is the difference between GD32C231K-START and other variants?

K-START uses LQFP32 (27 GPIO). Other variants: F-START (TSSOP20, 18 GPIO), G-START (QFN28, 24 GPIO), C-EVAL (LQFP48, 39 GPIO). All share 64 KB Flash, 12 KB SRAM.

Does the board include a debugger?

Yes, an integrated GD-Link debugger via USB is included. For multi-board debugging, see the standalone GD-Link V2.

Which IDEs are supported?

GD32 Embedded Builder, Keil MDK, IAR EWARM, Eclipse + GCC, VS Code with EIDE plugin.

Does GD32C231 support USB or CAN?

No, the GD32C231 series does not include USB or CAN peripherals. For USB support, consider the GD32E103 or GD32E235 series.

What is the ADC sampling rate?

The 12-bit ADC supports up to 1 MSPS with 10 external channels.

Is it compatible with Arduino shields?

Standard 2.54 mm headers allow breadboard use. Some Arduino shields may be compatible — check pin mapping.

Power supply options?

Powered via USB (5 V), onboard regulator provides 3.3 V. MCU supports 1.8 V to 3.6 V.

Where can I find examples?

Firmware libraries, demo suites, and application notes are available on the GD32 MCU portal.
