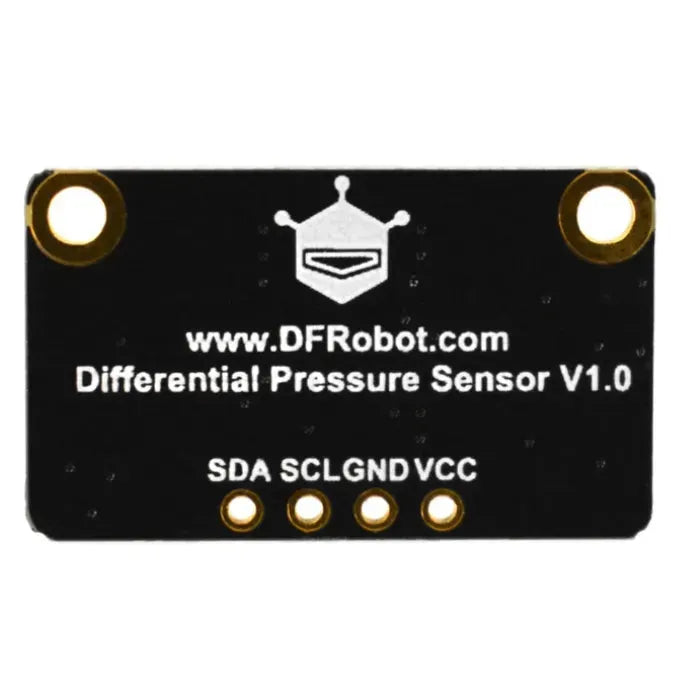

Fermion: LWLP5000 Differential Pressure Sensor - ±500pa (Breakout)
The Fermion LWLP5000 Differential Pressure Sensor is a high-resolution breakout board that uses I2C communication to measure the pressure difference between two points. It features a precision MEMS pressure chip and a dedicated signal conditioning chip for highly accurate measurements. This sensor is ideal for applications requiring real-time differential pressure data in compact embedded systems.
Equipped with a multi-stage temperature-compensation algorithm, it maintains accuracy across varying environments, making it perfect for use in medical devices, industrial control, and HVAC systems.
Key Features
-
±500Pa measurement range with ±1.5% full-scale accuracy
-
I2C digital output for seamless integration with microcontrollers
-
Built-in temperature-compensation for enhanced accuracy
-
Low power consumption, operating at <5mA
-
Compact form factor for space-constrained applications
Applications
-
Home medical equipment
-
Portable medical monitoring devices
-
Industrial automation
-
Central ventilation and HVAC systems
Specifications
-
Operating Voltage: 3.3V to 5V
-
Measurement Range: ±500Pa (±1.5%FS)
-
Operating Current: <5mA
-
Interface: I2C
-
I2C Address: 0x00
-
Operating Temperature: -40°C to 85°C
-
Compensation Temperature: -5°C to 65°C
-

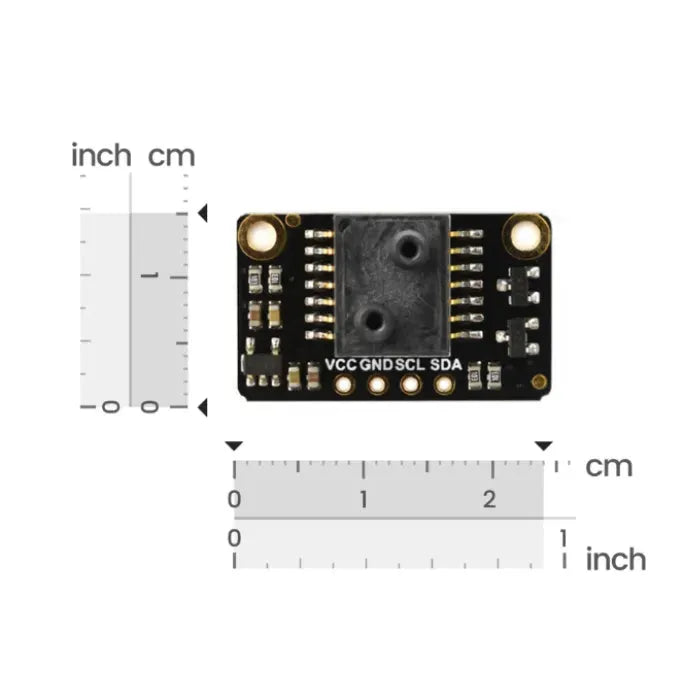

Dimensions: 14.5mm x 24mm (0.57" x 0.94")
Note: Use only in clean air environments. Avoid moisture or water entering the nozzle to prevent sensor damage.

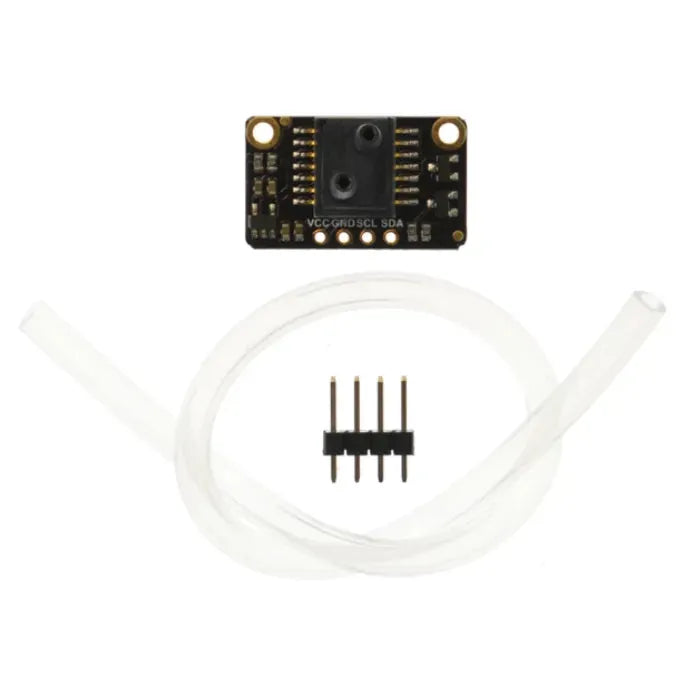

In the Box
-
1 x Fermion LWLP5000 Differential Pressure Sensor (±500Pa)
-
1 x 2.54-4P Black Single Row Pin Header
