Carenuity Original C3-Mini v2.2.1: ESP32-C3 IoT Development Board

€4,69

Carenuity Original C3-Mini v2.2.1: ESP32-C3 IoT Development Board

€4,69

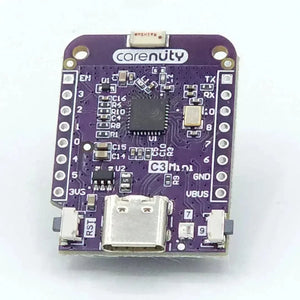

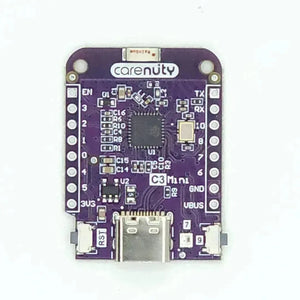

Carenuity Original C3-Mini v2.2.1 Development Board, Limited EURO Edition, Designed in Ukraine. Based on the powerful ESP32-C3 chipset, this board offers a world of possibilities for IoT developers and hobbyists. With 4MB of flash memory and the ability to be programmed using the Arduino IDE, it allows for easy and fast creation of IoT devices.



Technical Specifications:

Chip: ESP32-C3 WIFI & Bluetooth LE RISC-V Single-Core CPU
Operating Voltage: 3.3V
Digital I/O Pins: 12
Clock Speed: 160MHz
CPU: 32-bit RISC-V single-core processor
Flash: 4MB
Dimension: 34.3×25.4mm
Unsoldered pair of pin headers
Weight: 26g

This versatile board comes in the original metal frame, so you can be sure that no one has used this board before. You can simply remove this frame and a number of impressive features become accessible such as WiFi and Bluetooth LE, 12 digital I/O pins, ADC, I2C, SPI, UART and an integrated WS2812B RGB LED for vibrant applications. With its compact form factor of 34.3 x 25.4 mm and an operating voltage of 3.3 V, it is perfect for projects with limited space and power requirements.

Compatibility with the popular Mini Sensor Shields of the same form factor offered in this store and their associated applications, which can be installed for free within 3 minutes (see QR code), expands its possibilities even further.



Included in the package:

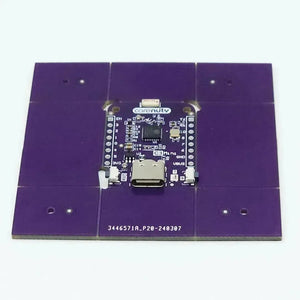

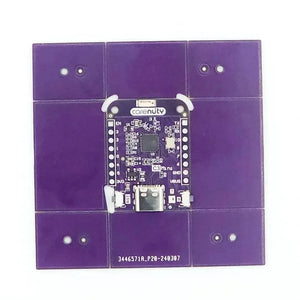

1x Carenuity Original C3-Mini v2.2.1 board in the original snap-off metal frame

2x 1x8 pin header strips for easy adjustments and connections (not soldered)

Dive into the world of IoT and discover countless possibilities with the latest EURO version of the C3-Mini v2.2.1!
