DFRobot Pan-Tilt HAT for Raspberry Pi NVIDIA Jetson Nano

DFRobot Pan-Tilt HAT for Raspberry Pi NVIDIA Jetson Nano

€19,95

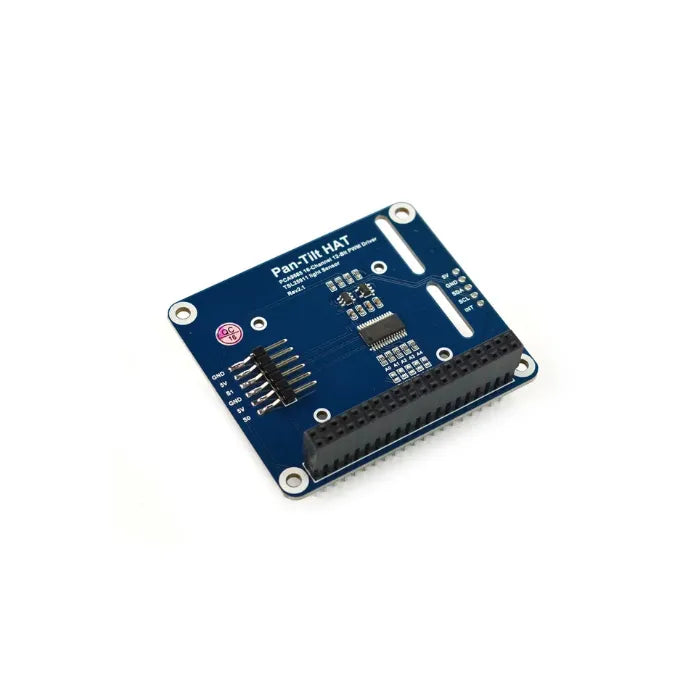

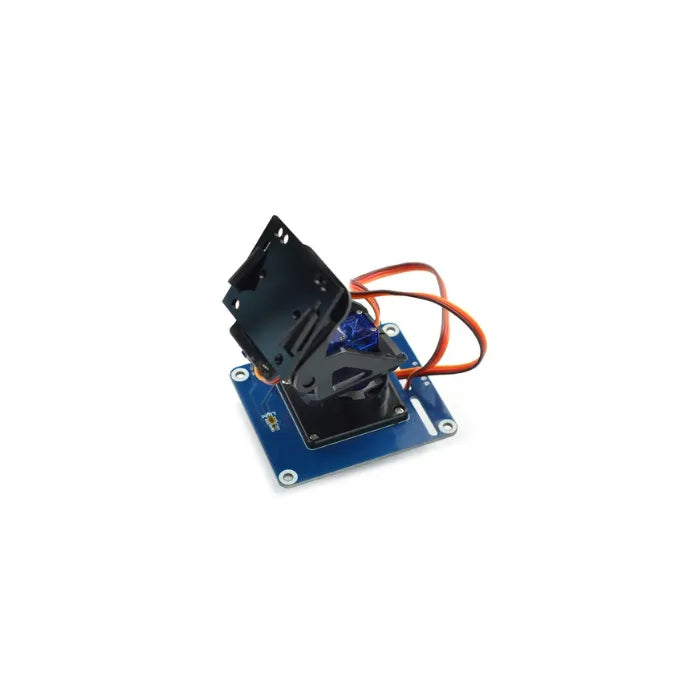

This 2-DOF Pan-Tilt HAT (Horizontal/Vertical Motion) plugs directly into Raspberry Pi's 40-pin GPIO, enabling precise camera positioning with minimal wiring. Using an I²C interface, it controls pan-tilt movement and ambient light detection via just 2 signal lines. The onboard PCA9685 chip generates 12-bit PWM signals for smooth servo control, while the TSL25911FN light sensor mimics human-eye light response to optimize camera performance in varying lighting. Includes a dedicated acrylic mount for securing Raspberry Pi cameras.

Pan-Tilt HAT For Raspberry Pi



Key Features

  • Plug-and-Play Design: Direct GPIO insertion + stackable headers preserve GPIO access for other peripherals

  • Precision Control: 12-bit PWM resolution (vs. standard 8-bit) enables 0.5° servo positioning accuracy

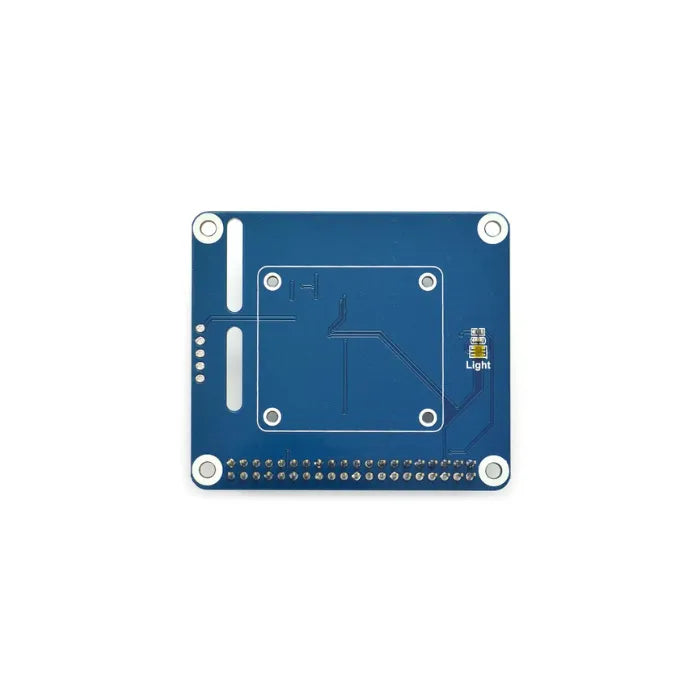

  • Ambient Adaptation: TSL25911FN sensor (12-bit ADC) auto-adjusts camera exposure for consistent image quality in low light or glare

  • Voltage Flexibility: 3.3V/5V logic compatibility via onboard level-shifting circuitry

  • Robust Integration: Compatible with Raspberry Pi Camera V1/V2/HQ and Arducam IMX219/IMX477 modules Pan-Tilt HAT For Raspberry Pi

Specifications

Parameter

Details

Model

Pan-Tilt HAT (SKU: FIT0731)

Control Chip

PCA9685 (16-channel PWM driver)

Light Sensor

TSL25911FN (0–40,000 lux detection)

PWM Resolution

12-bit (4096 steps)

Communication

I²C (Addresses: PCA9685=0x40, TSL25911FN=0x29)

Operating Voltage

3.3V/5V

Dimensions

56.6 × 65mm (2.23 × 2.56")

Servo Support

Two SG90/MG90-type servos (not included)

Mount Compatibility

Standard M2 screw holes for cameras/sensors

Applications

  • Robotics: Object tracking and SLAM navigation on Jetson Nano
  • Security: Auto-follow intruders using OpenCV-based face detection
  • Industrial Automation: Quality inspection with high-precision camera alignment

  • Education: ROS/Arduino projects for pan-tilt mechanics and sensor integration

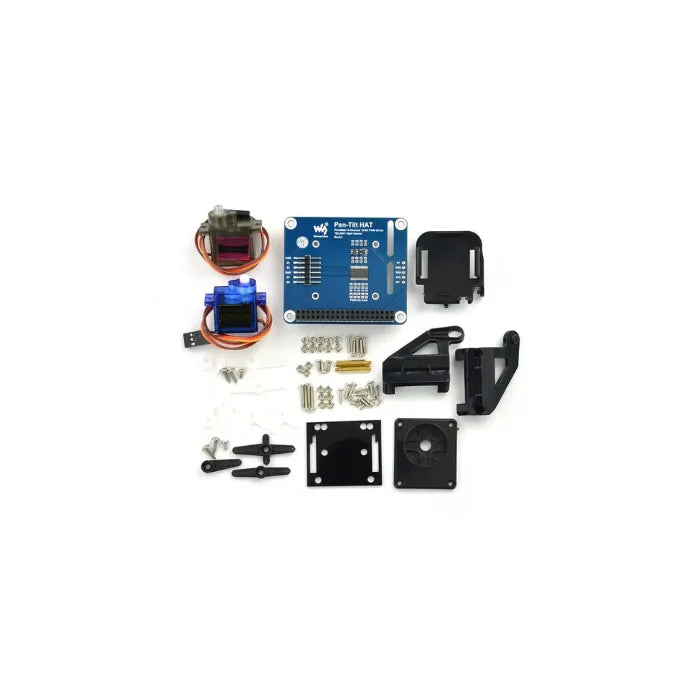

Package Contents

  • Pan-Tilt HAT ×1 (unassembled)

  • Acrylic Camera Mount ×1

  • M2 Screws/Nuts ×5Pan-Tilt HAT For Raspberry PiPan-Tilt HAT For Raspberry PiPan-Tilt HAT For Raspberry Pi

    Documents



Compatibility Notes

Supported

Unsupported

Raspberry Pi 3B+

Raspberry Pi 400

Raspberry Pi 4B (all RAM)

Raspberry Pi Pico

Jetson Nano

Compute Module 4 (CM4)

Advantages

  • Simplified Wiring:

    I²C control reduces cable clutter vs. direct GPIO-PWM setups

  • Industrial-Grade Durability:

    Anodized aluminum servos tolerate -20°C to 85°C environments

  • Plug-and-Play Setup:

    Pre-flashed firmware + Python/Arduino libraries enable operation in <10 minutes

  • Expandable:

    Stackable headers support adding Ultrasonic sensors (obstacle avoidance) or Coral TPU accelerators (real-time AI tracking)
