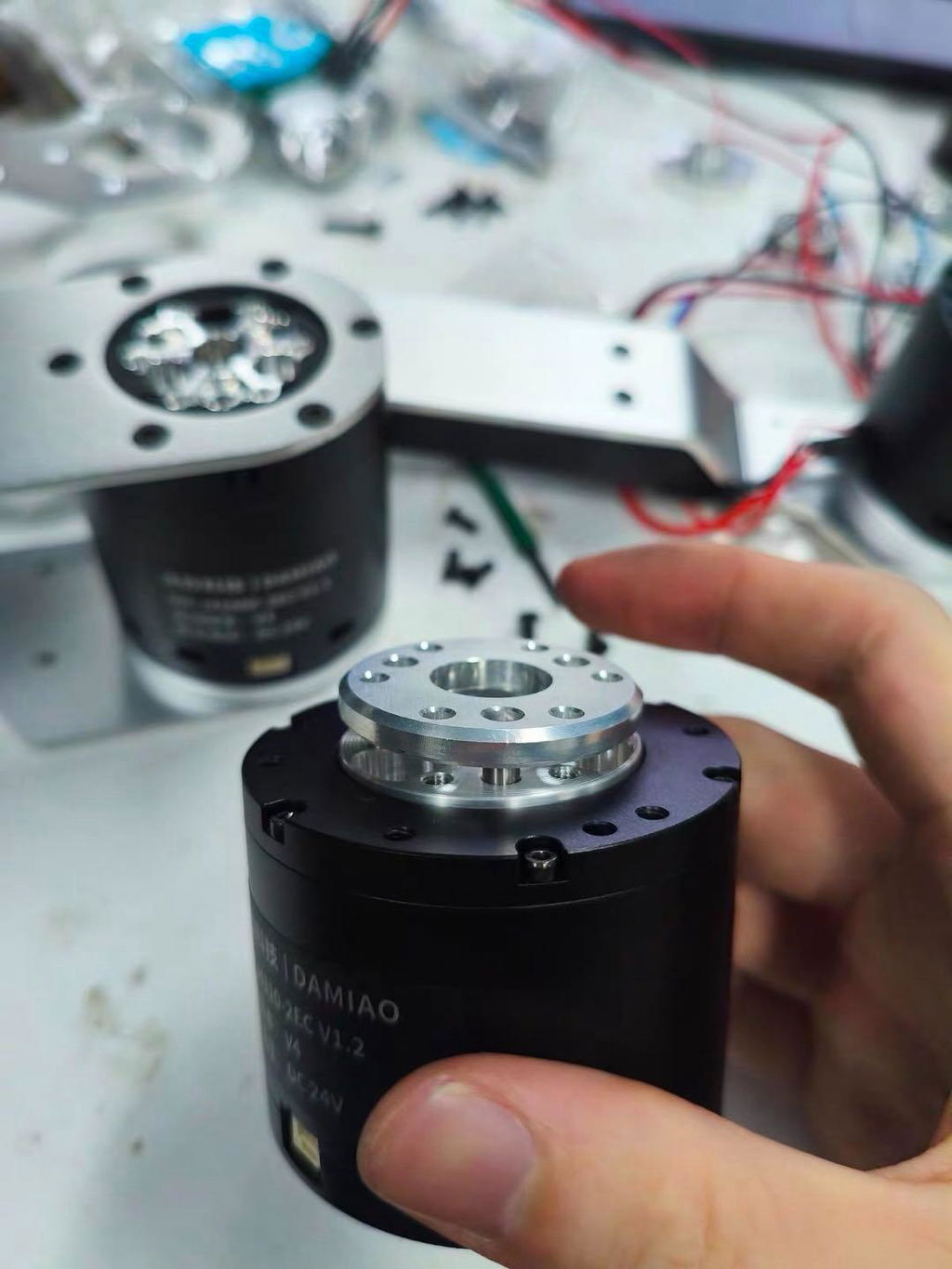

DAMIAO J4310-2EC Brushless Servo Joint Motor MIT Driver Dual Encoder

DAMIAO J4310-2EC Brushless Servo Joint Motor MIT Driver Dual Encoder

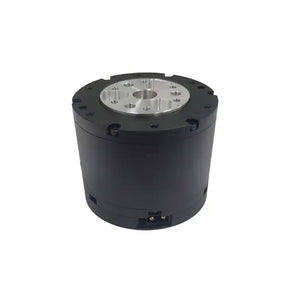

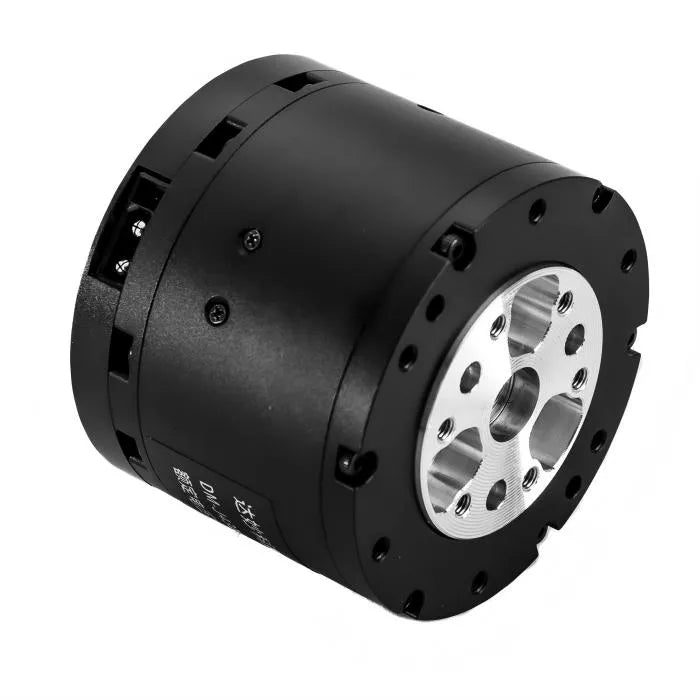

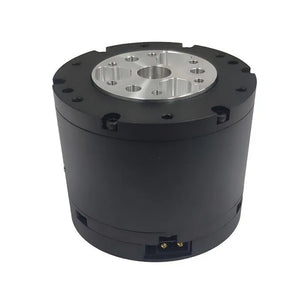

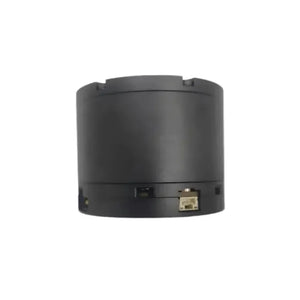

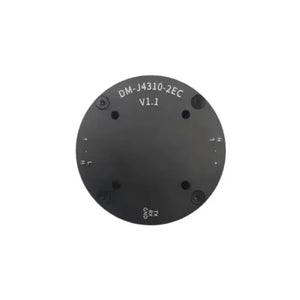

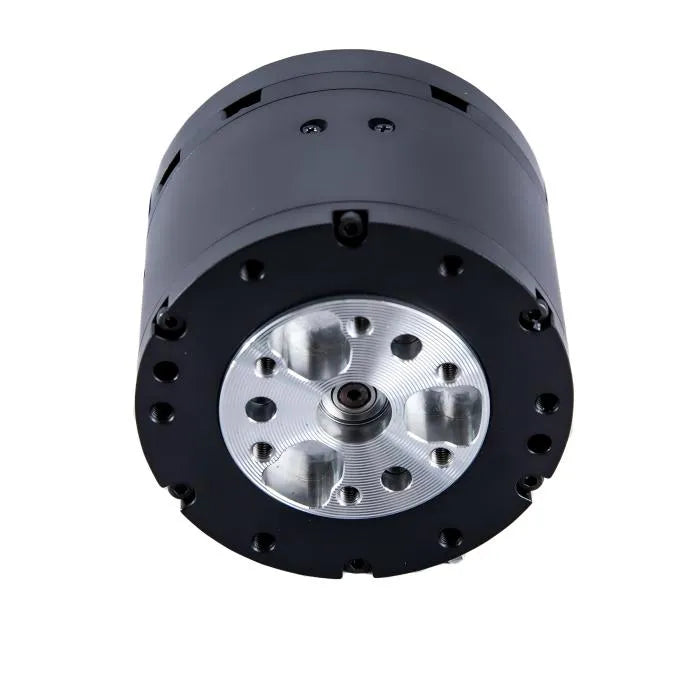

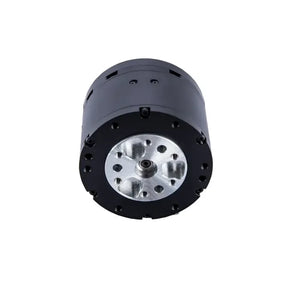

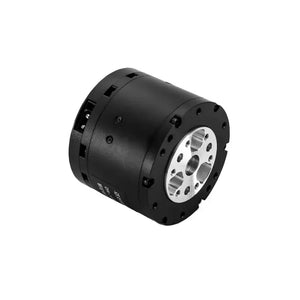

The DM-J4310 Series Integrated Servo Motors (V3 & V4) combine motor and driver in one compact unit. With dual encoders for absolute position, CAN bus feedback, and multiple control modes, they deliver precise torque, speed, and position control. Built-in temperature and voltage protections ensure reliability, while trapezoidal motion profiles provide smooth operation. Available in 24V and 48V versions, they’re ideal for robotics, automation, and smart machinery.



Features

  • Dual Encoders – Provides single-turn absolute position of the output shaft, ensuring no loss of position even after power-off.

  • Integrated Design – Motor and driver combined in one compact unit with high integration.

  • Visual Debugging & Firmware Upgrade – Supports PC-based visualization tools and easy firmware updates.

  • CAN Bus Feedback – Real-time reporting of speed, position, torque, and motor temperature via CAN interface.

  • Dual Temperature Protection – Enhanced safety with two independent temperature protection mechanisms.

  • Trapezoidal Acceleration/Deceleration – Position mode supports trapezoidal motion profiles for smoother control.

Specifications

Category V3  V4 (24V / 48V)
Electrical Specs
Rated Voltage 24V 24V / 48V
Rated Current 2.5A 3.1A@24V / 1.6A@48V
Peak Current 7.5A 16.5A@24V / 12.8A@48V
Performance
Rated Torque 3 Nm 3.5 Nm
Peak Torque 7 Nm 12.5 Nm
Rated Speed 120 rpm 120 rpm
Max No-load Speed 200 rpm 200 rpm@24V / 450 rpm@48V
Gear Ratio 10:1 10:1
Motor Characteristics
Pole Pairs 14 14
Phase Inductance 340 μH ~320 μH
Phase Resistance 650 mΩ ~580 mΩ
Structure & Weight
Outer Diameter 56 mm 57 mm
Height 46 mm 46 mm
Weight ~300 g ~325 g
Encoder
Resolution 14-bit 16-bit
Quantity 2 2
Type Magnetic (single-turn) Magnetic (single-turn)
Communication
Control Interface CAN @ 1 Mbps CAN @ 1 Mbps
Tuning Interface UART @ 921600 bps UART @ 921600 bps
Control Modes MIT, Speed, Position MIT, Speed, Position, Force-Position Hybrid
Protection Features Over-temp, Over-voltage, Over-current, Under-voltage, Comm-loss Same as V3, with identical recommended values





Applications

The DM-J4310 integrated servo motor is ideal for precision motion control in compact and demanding environments. Typical applications include:

  • Robotics – Joint actuation, mobile platforms, collaborative arms

  • Automation Equipment – Pick-and-place systems, linear actuators, smart conveyors

  • Medical Devices – Rehabilitation robots, surgical tools, diagnostic automation

  • Industrial Machinery – CNC auxiliary axes, inspection systems, micro-positioning tasks

  • Education & Research – Mechatronics labs, motion control experiments, prototyping platforms

With built-in dual encoders, CAN bus feedback, and multiple control modes, this motor delivers reliable performance for both commercial and experimental use.



Precautions

  1. Always operate the motor within the specified environmental conditions and winding temperature limits to avoid irreversible damage.

  2. Prevent foreign objects from entering the rotor area to ensure stable operation.

  3. Before use, inspect all components. Do not operate if parts are missing, aged, or damaged.

  4. Ensure correct wiring and secure installation of the motor.

  5. Do not touch the rotor or electronics during operation. High torque output may cause heat—avoid burns.

  6. Do not disassemble the motor. Unauthorized disassembly may affect control accuracy or cause malfunction.



Packing List

Item Quantity Description
Motor (with integrated driver) ×1 DM-J4310-2EC brushless servo motor with built-in driver
Power & CAN Cable ×1 XT30(2+2)-F single-ended connector cable, 100mm
UART Debug Cable ×1 GH1.25 3-pin (reverse side) cable, 300mm
