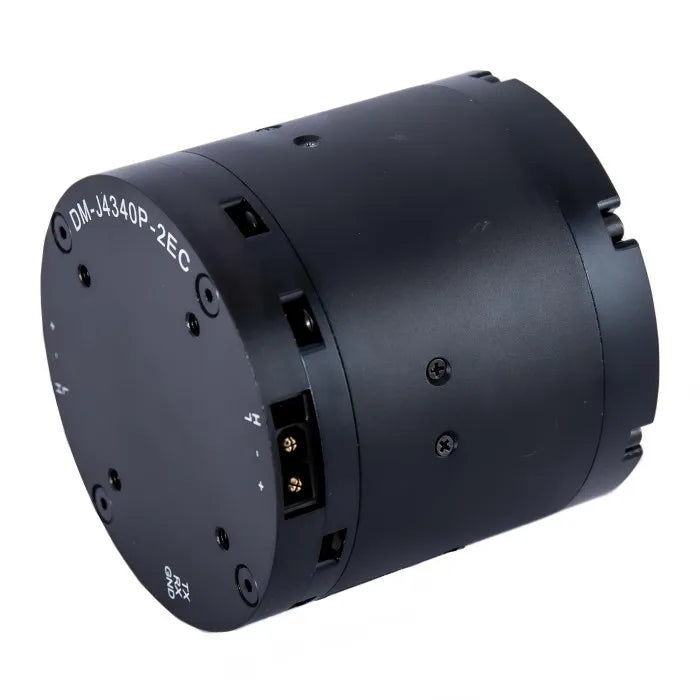

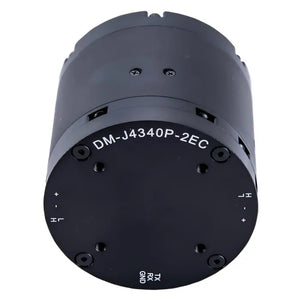

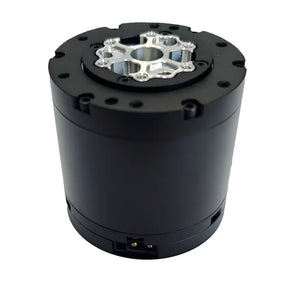

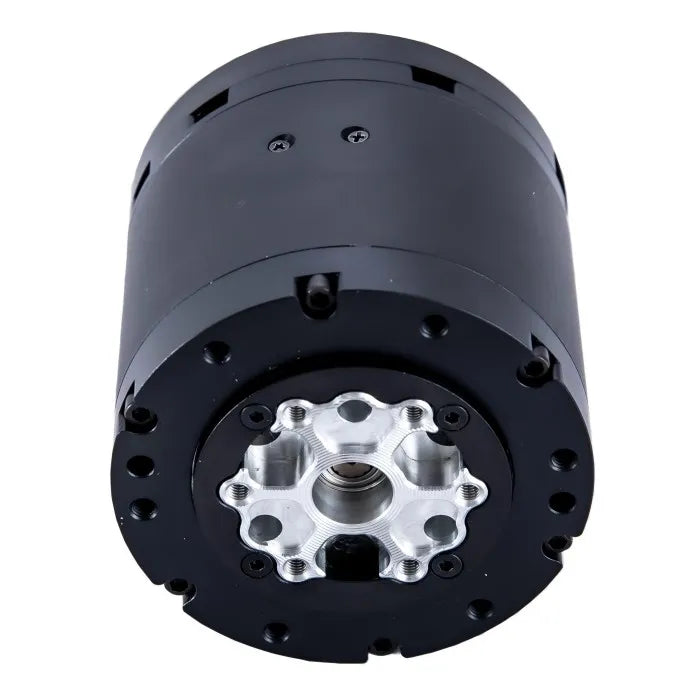

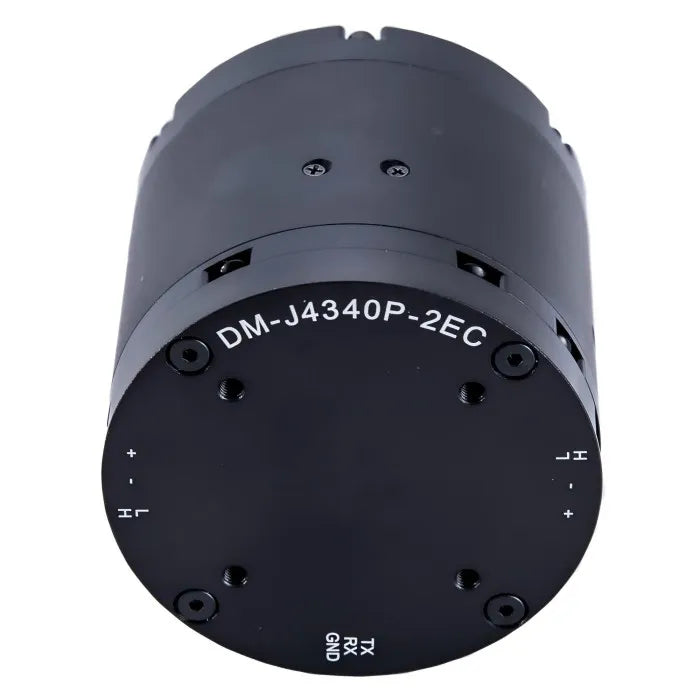

DAMIAO J4340P-2EC Brushless Servo Joint Motor MIT Driver Dual Encoder

DAMIAO J4340P‑2EC Brushless Servo Joint Motor is a precision actuator built for high-torque, low-speed applications in robotics and automation. Equipped with a built-in MIT driver and dual magnetic encoders, it offers absolute single-turn position feedback and maintains accuracy even after power loss. Available in 24V and 48V variants, the motor supports CAN bus communication at 1Mbps and provides real-time feedback on speed, torque, position, and temperature. With a 40:1 gear ratio, it delivers up to 27Nm peak torque, and supports trapezoidal motion profiles for smooth acceleration and deceleration. The compact form factor (57mm diameter, 56.5mm height) and robust protection features—including thermal, voltage, current, and communication safeguards—make it ideal for demanding environments requiring reliable and responsive motion control.

Features

Dual Encoder: Provides absolute single-turn position feedback of the output shaft; retains accuracy even after power loss.
Integrated Design: Motor and MIT driver combined into a compact, high-integration unit.
Visual Debugging: Supports PC-based parameter tuning and firmware upgrades.
CAN Bus Feedback: Real-time reporting of speed, position, torque, and motor temperature via CAN interface.
Dual Temperature Protection: Ensures safe operation with two independent thermal safeguards.
Trapezoidal Motion Profile: Enables smooth acceleration and deceleration in position mode.
Multiple Control Modes: Supports MIT, speed, position, and force-position hybrid control.

Specifications

Category	Parameter	24V Version	48V Version
Electrical Specs	Rated Voltage	24V	48V
	Rated Current	2.5A	2.5A
	Peak Current	8A	8A
Motor Performance	Rated Torque	9Nm	9Nm
	Peak Torque	27Nm	27Nm
	Rated Speed	36rpm	36rpm
	Max No-load Speed	52rpm	100rpm
	Gear Ratio	16:01	16:01
Motor Properties	Pole Pairs	14	14
	Phase Inductance	360µH	360µH
	Phase Resistance	880mΩ	880mΩ
Structure & Weight	Outer Diameter	57mm	57mm
	Height	56.5mm	56.5mm
	Motor Weight	Approx. 375g	Approx. 375g
Encoder	Resolution	14-bit	14-bit
	Quantity	2	2
	Type	Magnetic encoder (single-turn absolute)	Magnetic encoder (single-turn absolute)
Communication	Control Interface	CAN @ 1Mbps	CAN @ 1Mbps
Communication	Tuning Interface	UART @ 921600bps	UART @ 921600bps
Control Modes	Supported Modes	MIT, Speed, Position, Force-Position Hybrid	MIT, Speed, Position, Force-Position Hybrid
Protection	Driver Over-temp Protection	120°C – exits enabled mode	120°C – exits enabled mode
	Motor Over-temp Protection	User-defined (≤100°C recommended)	User-defined (≤100°C recommended)
	Over-voltage Protection	User-defined (≤32V recommended)	User-defined (≤32V recommended)
	Communication Loss Protection	Exits enabled mode if no CAN command	Exits enabled mode if no CAN command
	Over-current Protection	User-defined (≤9.8A recommended)	User-defined (≤9.8A recommended)
	Under-voltage Protection	Exits enabled mode if voltage <15V	Exits enabled mode if voltage <15V

Applications

Robotic joints and collaborative arms requiring high torque and precise low-speed control
Industrial manipulators and automation systems with multi-axis coordination and real-time feedback
Mobile platforms and AGVs where compact size and thermal safety are critical
Medical and assistive robotics needing smooth motion and accurate position tracking
Research and education platforms for advanced motion control experiments and prototyping

Packing List

Item	Quantity	Description
Motor (with integrated driver)	×1	DM-J4340P-2EC brushless servo motor with built-in driver
Power & CAN Cable	×1	XT30(2+2)-F single-ended connector cable, 100mm
UART Debug Cable	×1	GH1.25 3-pin (reverse side) cable, 300mm
