M5Stack DAC 2 I2C Unit (GP8413)

M5Stack DAC 2 I2C Unit (GP8413)

€8,50

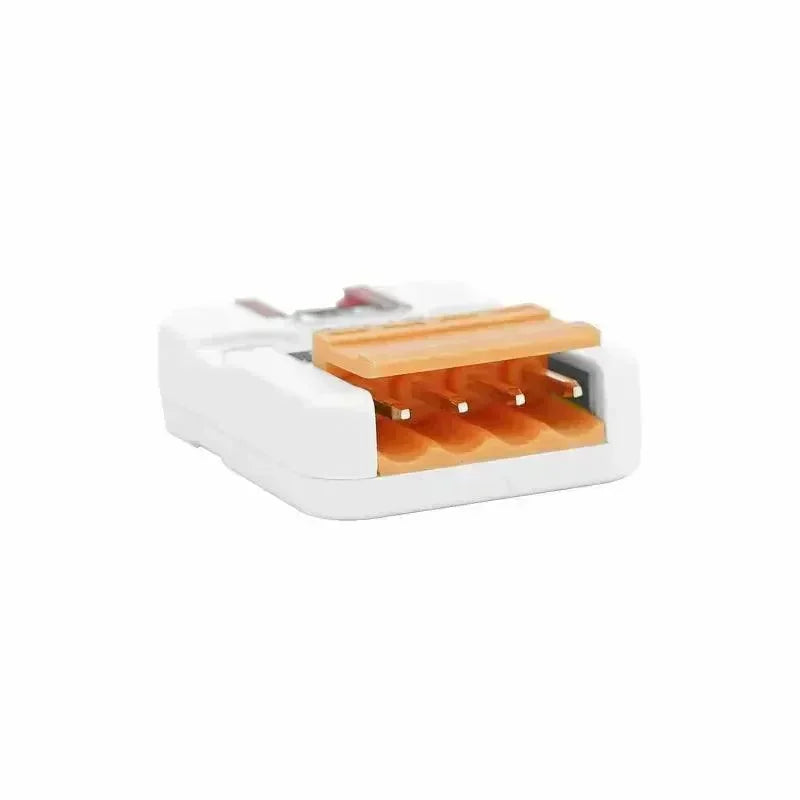

The M5Stack DAC 2 I2C Unit (GP8413) is a compact and high-performance digital-to-analog signal conversion module designed for professional and industrial applications. Also referred to as the M5Stack DAC 2 or DAC2 Unit, this device offers outstanding precision, scalability, and robust safety features.

At its core, the DAC2 Unit utilizes the GP8413 chipset, capable of 15-bit resolution digital-to-analog conversion, outputting two independent analog voltages in the 0–5V or 0–10V range. With up to 0.01% linearity and a voltage error margin of only 0.2%, it ensures highly reliable and stable analog signal generation.

Key Features of M5Stack DAC 2 I2C Unit (GP8413)

  • 15-bit High-Precision DAC Output
    Converts digital signals into two independent 0–5V or 0–10V analog outputs with exceptional accuracy.
  • I2C Communication (Default Address: 0x59)
    Easy and reliable data transmission with support for multiple parallel connections thanks to a 3-bit hardware address, enabling up to 8 DAC2 Units on a single I2C bus.
  • High Precision, Minimal Error
    Achieves 0.01% linearity and maintains a low output voltage error (0.2%), delivering professional-grade analog signal quality.
  • Built-in Short-Circuit Protection
    Protects the module by automatically disabling output in case of a short between the output pins and ground.
  • Compact, Reliable, and Expandable Design
    Perfect for use in scalable IoT and industrial environments.

Communication Protocol

The M5Stack DAC 2 communicates using the I2C protocol, with a default address of 0x59. Thanks to address configurability, multiple DAC2 Units can operate simultaneously in complex systems, offering flexibility for advanced designs.



Typical Applications for the DAC2 Unit

  • General Digital-to-Analog Signal Conversion
    Seamlessly translate digital commands into precise analog voltages.

  • Motor Speed Control
    Achieve fine-grained motor control with adjustable analog voltage output.

  • LED Dimming Control
    Enable smooth and programmable brightness adjustments for LED systems.

  • Industrial Inverter and Power Supply Systems
    Generate reliable analog references for inverters and voltage regulators.

  • Industrial Analog Signal Isolation
    Enhance signal integrity and system stability with precision DAC outputs.

  • Smart Factory and IoT Applications
    Integrate precise analog controls into automated industrial systems.



Includes

  • 1x DAC2 Unit
  • 1x VH3.96-4P
  • 1x Sticker

Applications

  • Universal signal conversion
  • Motor speed regulation, LED dimming
  • Inverter, power supply
  • Industrial analog signal isolation

Specification

DAC Chip GP8413
Rresolution Ratio 15Bit
I2C Serial Communication 0x59 (default)
Maximum Output Voltage 10V
Output Voltage Error <0.2%
Output Voltage Linearity error 0.01%
Operating Temperature 0-40°C
Product Size 32* 24* 10.2mm
Package Size 136* 92* 13.7mm
Product Weight 5g
Package Weight 13.3g



FAQs – M5Stack DAC 2 I2C Unit (GP8413)

Q1: What communication protocol does the M5Stack DAC 2 Unit use?

A:
The M5Stack DAC 2 Unit uses the I2C communication protocol with a default address of 0x59. This allows for easy connection and reliable data transmission between the DAC2 Unit and microcontrollers like M5Core.

Q2: How many DAC2 Units can I connect in one system?

A:
Thanks to its 3-bit hardware address configuration, you can connect up to 8 DAC2 Units in parallel on the same I2C bus, enabling flexible and scalable system designs.

Q3: What is the resolution and accuracy of the M5Stack DAC 2 I2C Unit?

A:
The DAC2 Unit provides a 15-bit digital-to-analog conversion, achieving up to 0.01% linearity and maintaining a very low output voltage error of only 0.2%. This ensures high precision for industrial and professional applications.

Q4: Does the DAC2 Unit offer any protection features?

A:
Yes, the DAC2 Unit is equipped with short-circuit protection. If the output pins are accidentally shorted to ground, the module automatically enters protection mode to prevent damage.

Q5: What voltage ranges does the DAC2 Unit support?

A:
The M5Stack DAC 2 can output two independent analog voltages, either in the 0–5V or 0–10V range, making it versatile for different application requirements like motor speed control, LED dimming, and signal isolation.

Q6: What are typical use cases for the M5Stack DAC 2 Unit?

A:
Typical applications include:

  • Motor speed control

  • LED brightness adjustment

  • Signal conversion in industrial systems

  • Power inverter reference signal generation

  • Analog signal isolation in smart factories and IoT solutions
