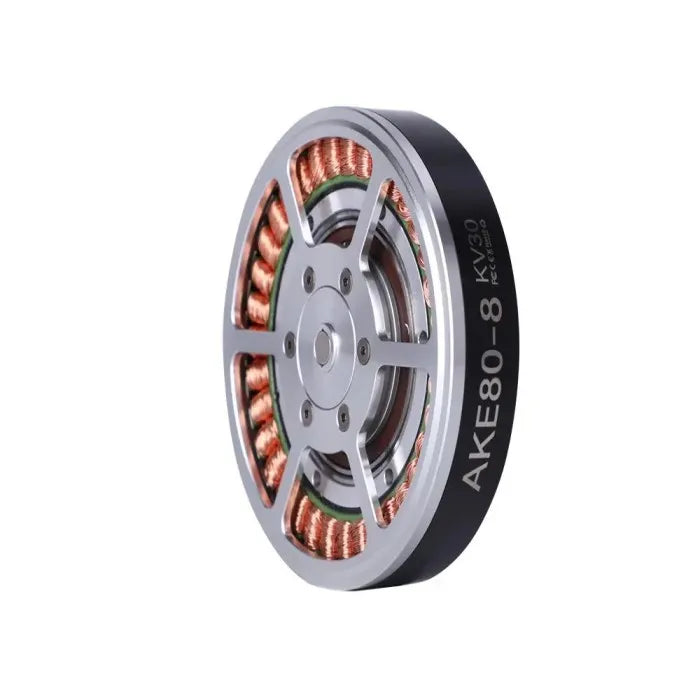

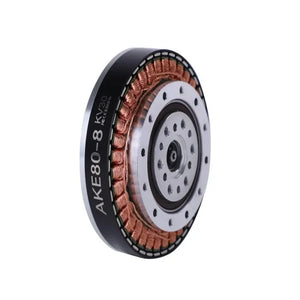

CubeMars AKE80-8 Actuator Motor Compact High-Torque Power Module

CubeMars AKE80-8 Actuator Motor Compact High-Torque Power Module

€458,94

CubeMars AKE80-8 Actuator Motor delivers cutting-edge performance for industrial automation and robotics. Integrating a high-performance motor and a precision planetary gearbox, the AKE80-8 is expertly engineered for demanding applications such as exoskeletons, bipedal robots, robotic arms, and collaborative industrial robots.

With optimized core gearbox components, this actuator achieves a peak torque of 30 Nm, ultra-low backlash of 9 arcminutes, and an exceptional torque density of 52 N·m/kg—all while maintaining a compact, lightweight design (570 g). The modular construction allows for quick installation and straightforward maintenance, and the motor base is equipped with threaded and through holes for flexible, bi-directional mounting, seamlessly meeting diverse integration needs.

Engineered with grade 5 precision gears and an enhanced winding process, the AKE80-8 features quiet, efficient operation, increased slot fill factor (boosted by 10% over previous generations), and superior torque output with reduced thermal rise. These innovations guarantee consistent, precise, and reliable performance.



Features

• Robotic Actuator with a Planetary Gear

• Flexible Installation with Bi-directional Mounting

• Modular Design

• low Arcmin Backlash for High Precision

• Constantly Powerful Performance

• Specially for Exokseleton


Highlights

QUASI DIRECT DRIVE

Robotic Actuator with Planetary Gear

Light and Compact,Precise and Powerful

AKE80-8

PRECISION TRANSMISSION WITH HEAVY LOAD CAPACITY

Achieve higher transmission accuracy within 9 arc backlash;
optimized reducer increases load capacity,reaching peak torque density of 52N.m/kg.

AKE80-8

 QUIET OPERATION WITH PRECISION EXCELLENCE

Utilizing grade 5 precision gears and optimized core components in the reducer significantly reduces operational noise while extending motor lifespan

AKE80-8

 WINDING UPGRADING FOR EFFICIENCY BOOST

Enhanced winding process increases slot fill factor by 10% compared to AK series reducing copper losses and temperature rise for superior torque output

AKE80-8

LIGHT AND COMPACT FOR VERSATILE APPLICATIONS

Lightweight design and compact structure with bi-directional mounting for diverse application

AKE80-8AKE80-8

MODULAR DESIGN FOR HASSLE-FREE MAINTENANCE

Motor and reducer feature separate modular design for easy and quick disassembly and maintenance

AKE80-8


Technical Drawing


Specification

Application Exoskeleton Peak torque (Nm) 30
Driving way FOC Peak current (ADC) 12
Operation ambient temperature -20℃~50℃ Kv (rpm/V) 30
Winding type star Kt (Nm/A) 0.32
Insulation class F Ke (V/krpm) 33
Insulation High-voltage (V) 500 Phase to Phase resistance (mΩ) 870
Insulation resistance (MΩ) 10 Phase to Phase inductance (μH) 990
Pole pairs 21 Inertia (gcm²) 1471.75
Backlash (arcmin) 9 Km (Nm/√W) 0.34
Rated voltage (V) 48 Mechanical time constant (ms) 2.3
No-load speed (rpm) 195 Electrical time constant (ms) 1.13
Rated torque (Nm) 12 Weight (g) 570
Rated speed (rpm) 150 Maximum torque weight ratio (Nm/kg) 52
Rated current (ADC) 4.8


Analysis Chart



Links

AKE80-8-KV30 drawing.pdf

AKE80-8-KV30.zip
