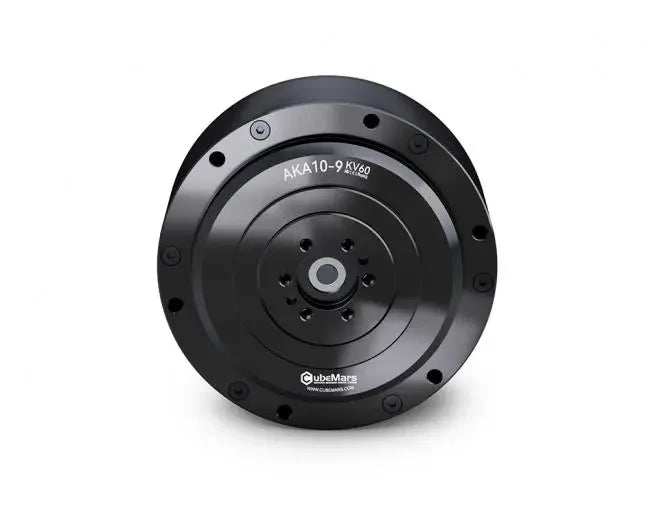

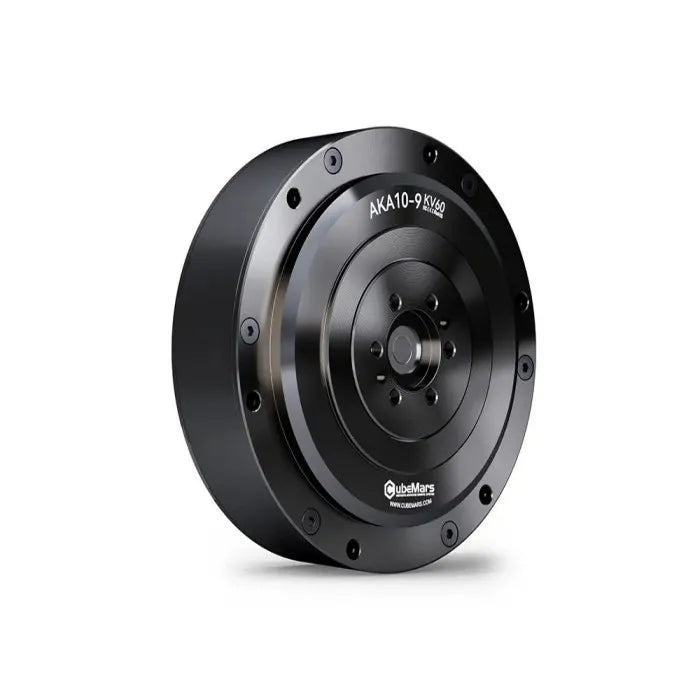

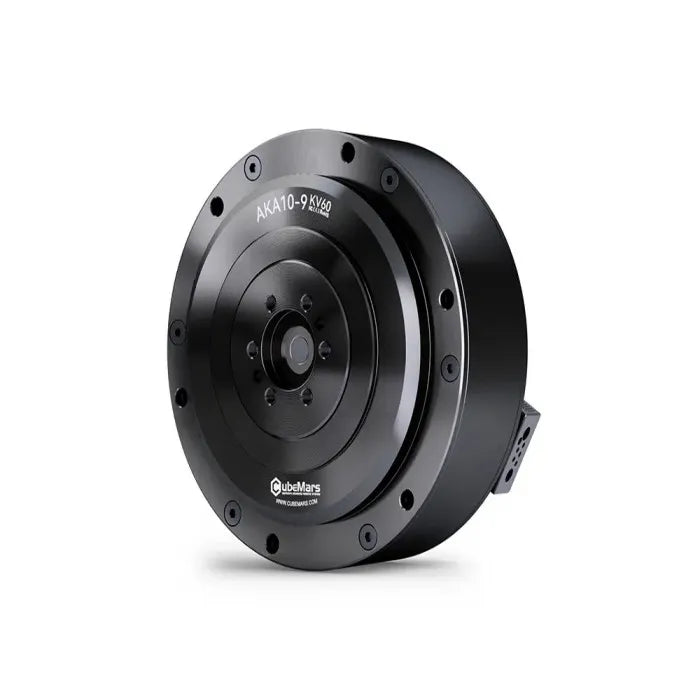

CubeMars AKA10-9 Actuator Motor Compact High-Torque Power Module

CubeMars AKA10-9 Actuator Motor Compact High-Torque Power Module

€1.078,56

The CubeMars AKA Series is designed for high radial load applications such as wheeled robots and AGVs. Featuring a new structural design, the AKA Series achieves over 120% higher radial load capacity compared to previous models, with the ability to withstand up to 50kg of radial load. To improve reliability and ease of use, it adopts a robust 2+5PIN plug, combining signal and power lines, and secured with screws for enhanced durability. The series also supports seamless motor parameter recognition and upgraded driver functionality for easy debugging and maintenance.



Features

• High radial load capacity
• For wheeled robots, AGVs
• Upgraded drive, One-click recognition
• 2+5pin safe & durable plug


Highlights

NEW SOLUTION HIGH RADIAL LOAD CAPACITY

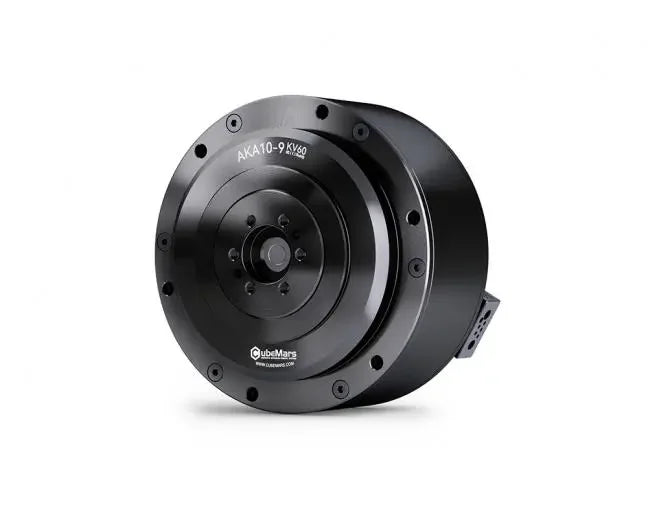

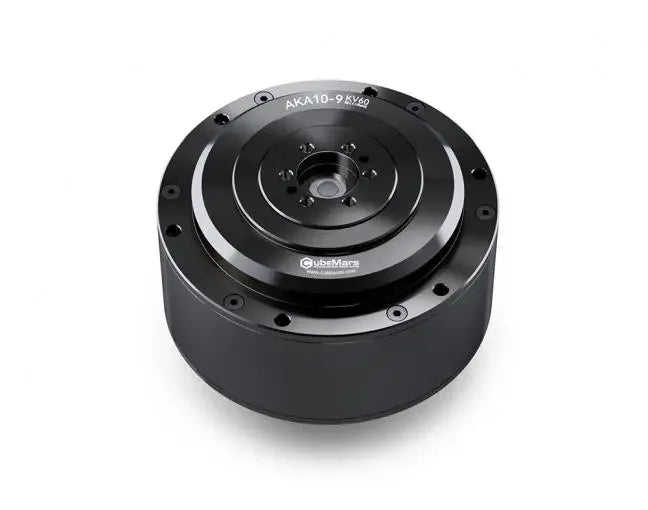

AKA Planetary Reduction Module AKA10-9

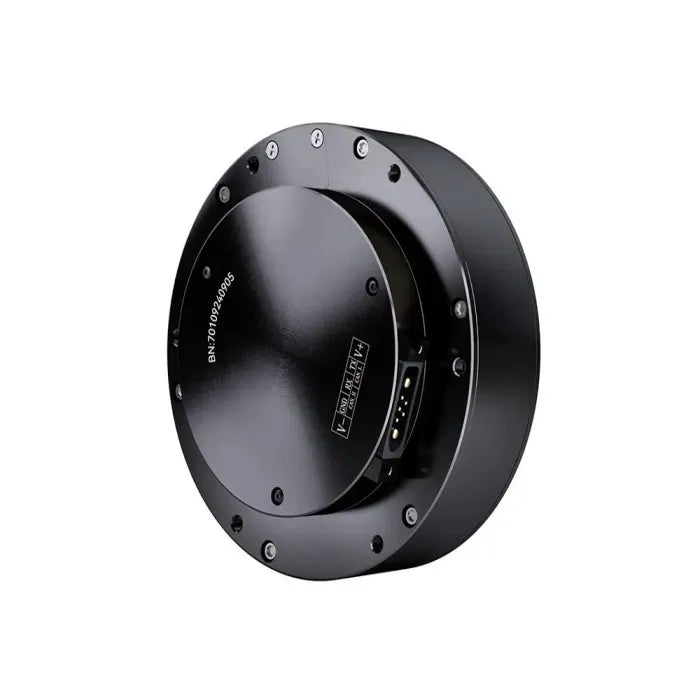

New Plug：Sturdy and Durable

AKA10-9



New Design For Enhanced Radial Load Capacity

The motor structure is redesigned to increase the radial load to 50KG,120% improvement compared to AK10-9.

AKA10-9

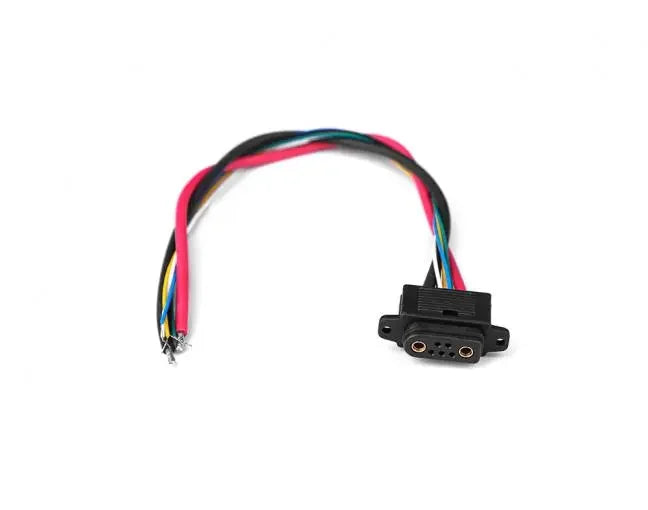

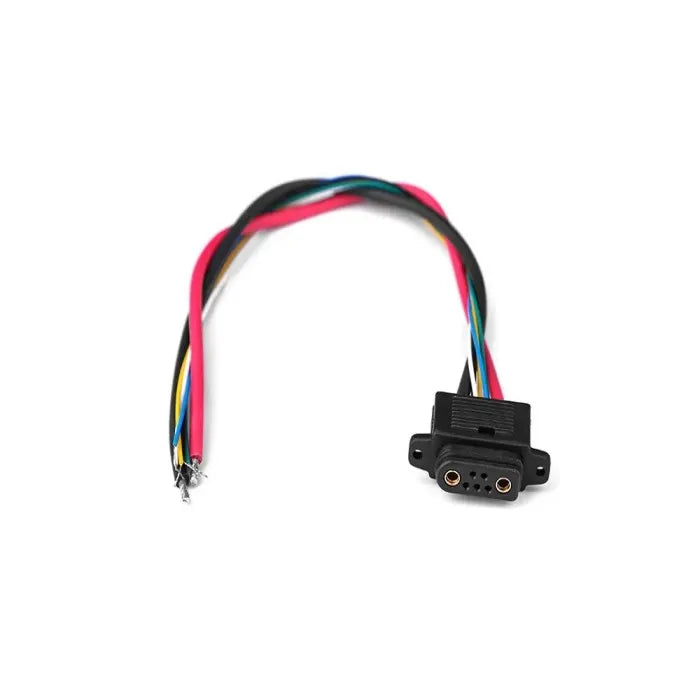

Custom Plugs Safe & Reliable

The power plug, CAN signal plug, and UART signal plug
are integrated into a brand-new 2+5 pin plug.
The new plug is fixed with M2 screws, ensuring safety and reliability

AKA10-9

Upgrade The Driver For Easy Debugging

Open current loop parameters & UART port baud rate settings
One-click for motor parameter recognition
Update selected motor without firmware import necessary

AKA10-9



Technical Drawing


Specification

Application AGV、Wheeled Robot Insulation Class C
Driving Way FOC Insulation High-Voltage 1000V 5mA/2s
Operation Ambient Temperature℃ -20℃~50℃ Insulation Resistance 1000V 10MΩ
Winding Type star Back drive 0.8 Nm
Pole Pairs 21 Backlash 0.15°
Phase 3 Reduction Ratio 9∶1
Temperature sensor NTC MF51B 103F3950 Noise dB
Distance from motor: 65CM
(Environment: 45dB@1200rpm)		 50
Rated Radial Load 50kg Weight 1060g
Electric Parameters
Rated Voltage 48V Ke 0.0167V/krpm
No-Load Speed 320rpm Phase To Phase Resistance 248mΩ
Rated Torque 18Nm Phase To Phase Inductance 235μH
Rated Speed 109rpm Km 0.32Nm/√W
Rated Current 10.6ADC Mechanical Time Constant 1.90ms
Peak Torque 53Nm Electrical Time Constant 0.94ms
Peak Current 32ADC Kt 0.16Nm/A
Inertia 1002gcm² Kv 60rpm/V
Maximum torque weight ratio 53Nm/kg
Wiring Instructions (with Driver)
Outer ring encoder type Magnetic encoder Outer ring
encoder resolution		 16bit


Analysis Chart

AKA10-9 KV60 48V曲线图英文.jpg

Links

AKA10-9 KV60-2D.pdf

AKA10-9-3D.zip

AKA Series Module Product Manual V3.0.0.pdf
