CubeMars AK45-10 Compact High-Torque Brushless DC Motor

CubeMars AK45-10 Compact High-Torque Brushless DC Motor

CubeMars AKSeries Module Driver User Manual

⚙️ CubeMars AK45-10 – Frameless High-Torque BLDC Motor for Robotics & Automation

🧠 The CubeMars AK45-10 is a compact frameless BLDC motor that integrates a high torque brushless DC motor, 3-phase architecture, and a precision planetary gear system. Engineered for advanced robotics, automation, and motion control, it delivers exceptional power density, quiet operation, and precise positioning in a lightweight form factor ⚡🔧.

Ideal for legged robots, exoskeletons, AGVs, and CNC systems, the AK45-10 sets a new benchmark in industrial BLDC motor performance—combining durability, versatility, and plug-and-play integration for demanding environments.

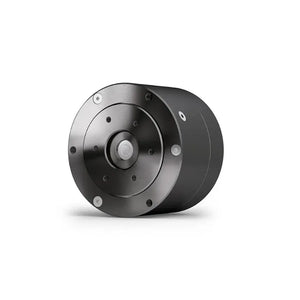

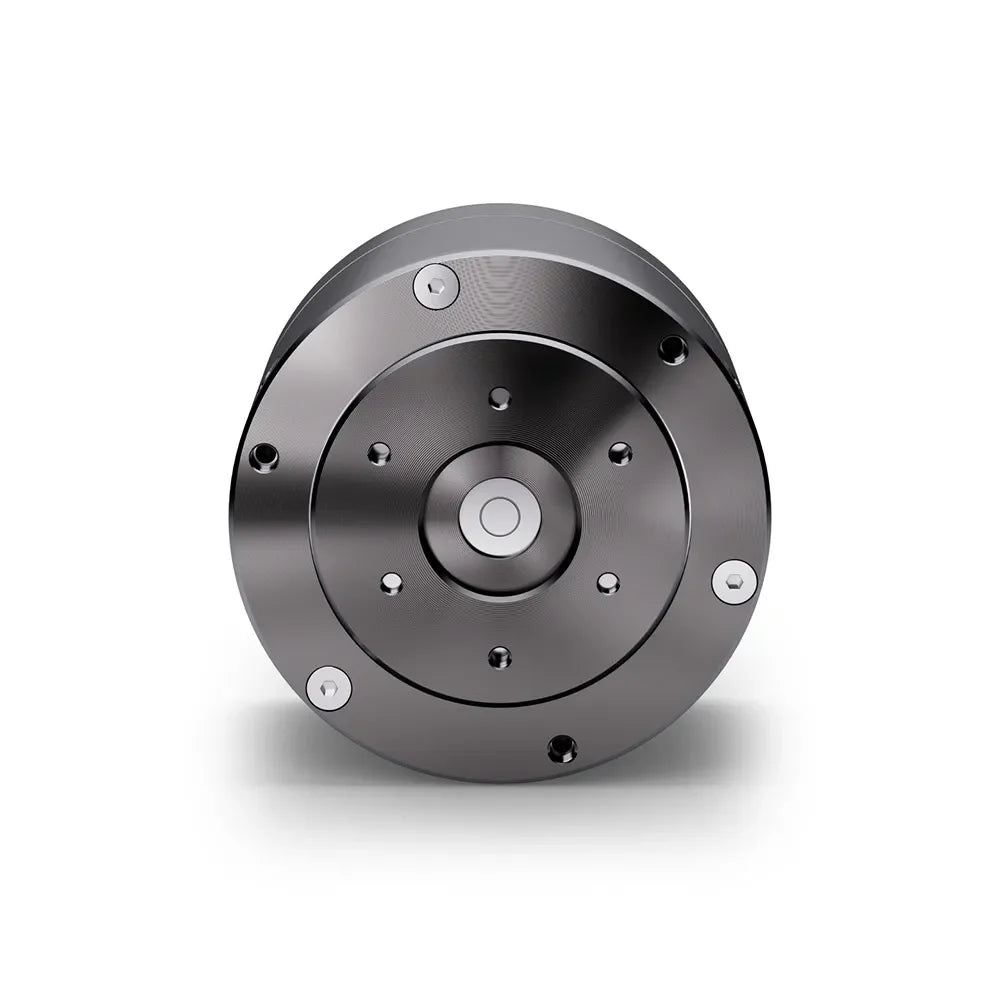

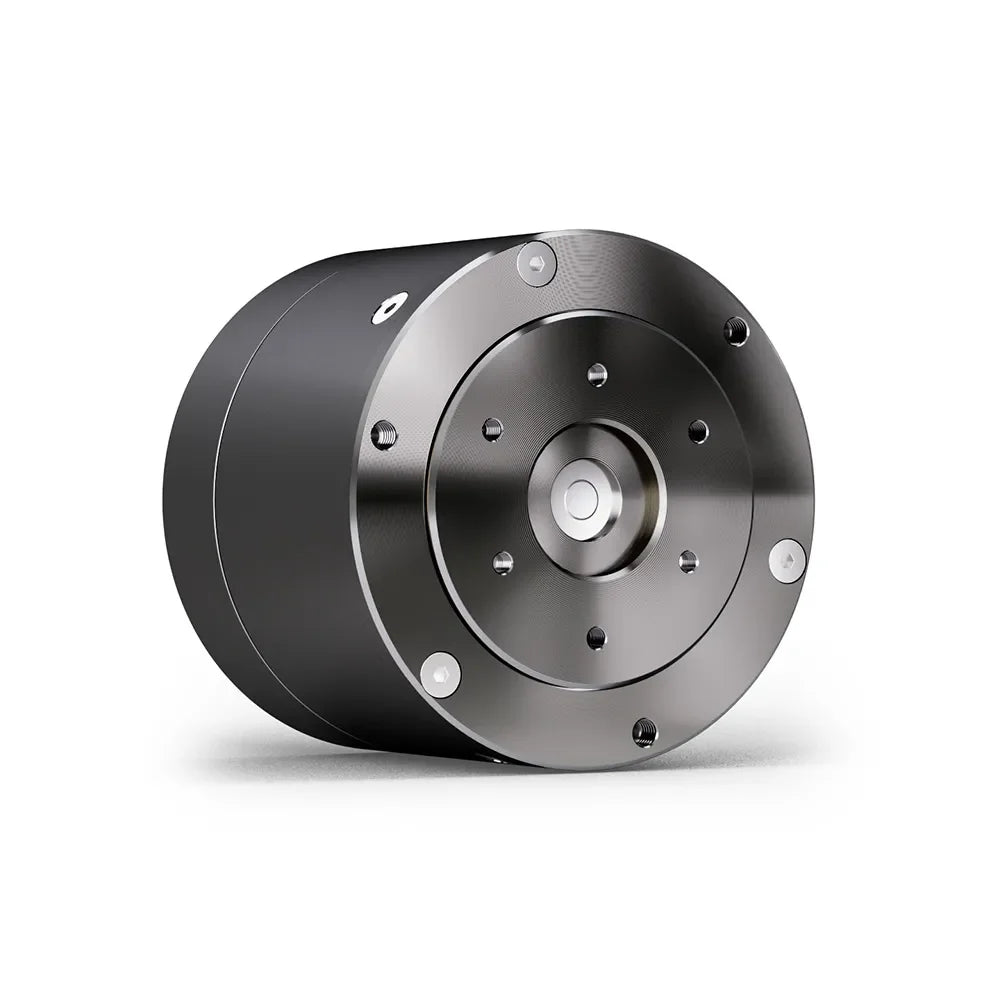

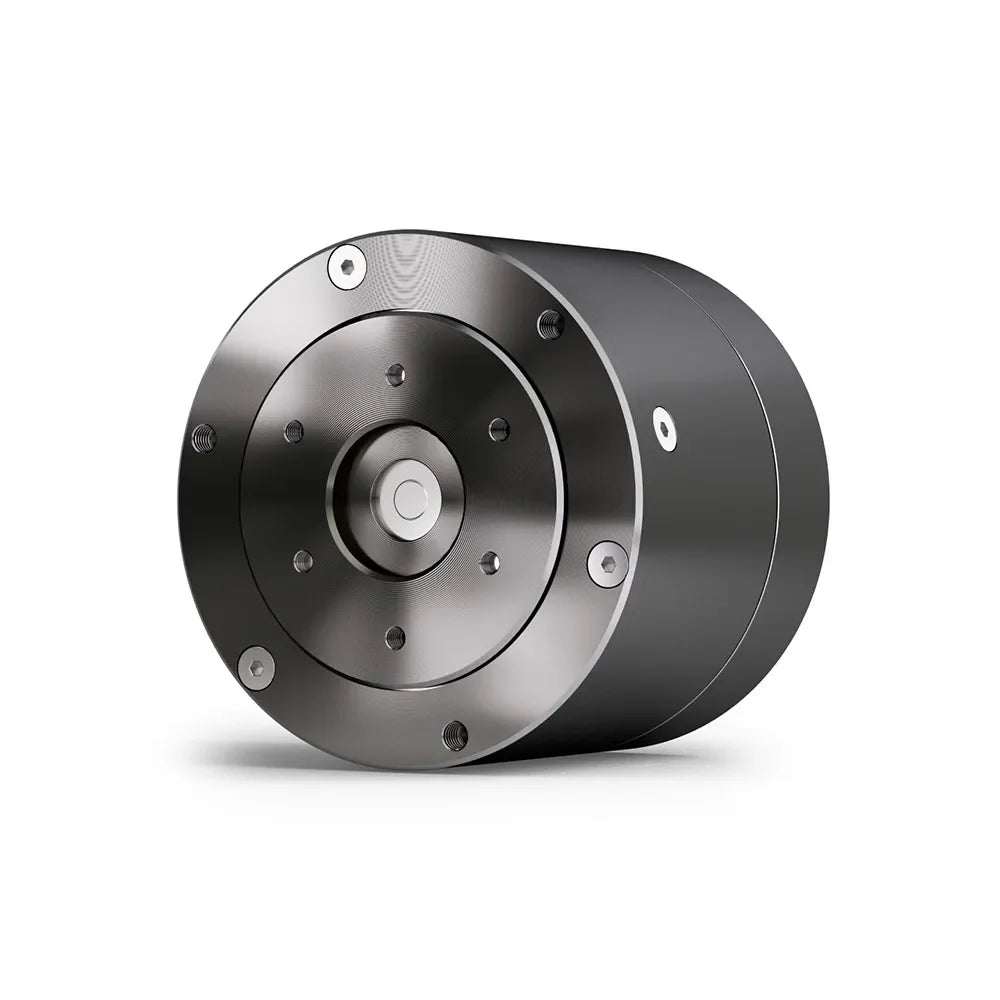

AK45-10 Front View



✨ Key Features

  • 💪 Peak Torque 7 N·m: Delivers up to 7 N·m peak torque, ideal for high-load robotic joints and industrial actuators.
  • ⚖️ Compact & Lightweight: Weighs only 260 g, designed for tight spaces and mobile platforms.
  • 🎛️ Flexible Control Modes: Supports FOC servo control and motion control protocols, including adaptive PID tuning.
  • 🔇 Quiet Operation: Optimized planetary gearbox ensures smooth, low-noise performance (60 dB).
  • 🎯 High Precision: Integrated 14-bit magnetic encoder enables 0.1° positioning accuracy.

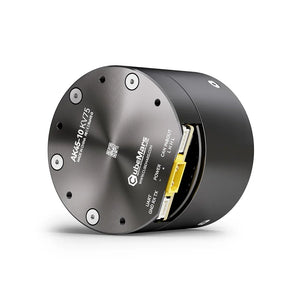

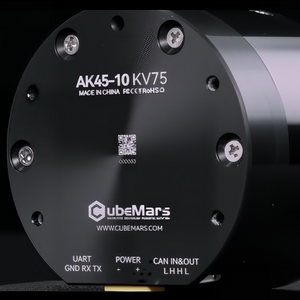

AK45-10 Side View260 g, 7 N·m peak torque, 26.9 N·m/kg — compact actuator for legged robots, exoskeletons and AGVs 🤖🦾. FOC control, integrated driver and 14‑bit magnetic encoder for precise, efficient motion ⚡📈.



📐 Specification

Parameter Original Label Value
Application Application Legged Robot, Exoskeleton, AGV
Driving Method Driving way FOC (Field-Oriented Control)
Operating Temperature Operation ambient temperature -20°C ~ 50°C
Winding Type Winding Type Delta
Insulation Class Insulation Level Class C
High-Voltage Insulation Insulation High-voltage 500V 5mA/2s
Insulation Resistance Insulation resistance 500V 10MΩ
Slots Number of Slots 24
Pole Pairs Pole Pairs 14
Reduction Ratio Reduction Ratio 10:1
Backlash Backlash (arcmin) 18
Noise Level Noise dB 60 dB
Rated Voltage Rated voltage (V) 24 V
Rated Torque Rated torque (Nm) 2.5 Nm
Rated Speed Rated speed (rpm) 40 rpm
Rated Current Rated current (ADC) 2 A
Weight Weight (g) 260 g
Peak Torque Peak torque (Nm) 7 Nm
No-Load Speed No-load speed (rpm) 180 rpm
KV Constant KV (rpm/V) 75 rpm/V
KT Constant KT (Nm/A) 0.127 Nm/A
KE Constant KE (V/krpm) 13.33 V/krpm
Resistance Phase to phase resistance 2.2 Ω
Inductance Phase to phase inductance 1330 μH
Rotor Inertia Rotor Inertia 89 g·cm²
Motor Constant Motor constant 0.0858 Nm/√W
Torque Density Maximum Torque Density 26.9 Nm/kg
Encoder Type Inner loop encoder type Magnetic
Encoder Resolution Inner ring encoder resolution 14 bit
Connectors CAN/UART/Power A1257WR-S-3P / XT30PW-M



🚀 Applications

  • 🤖 Robotics – precision motion control for humanoid joints and mobile platforms
  • 🏭 Industrial Automation – high-efficiency BLDC motor for compact actuators
  • 🛠️ CNC Machinery – smooth, accurate positioning with planetary gear motor
  • 🦾 Exoskeletons & AGVs – lightweight, high-torque drive modules
