CubeMars AK40-10 Compact High-Torque Brushless DC Motor

CubeMars AK40-10 Compact High-Torque Brushless DC Motor

CubeMars AKSeries Module Driver User Manual

⚙️ The CubeMars AK40-10 Actuator Motor is a compact high-torque power module engineered for precision robotics, automation, and mobility. This advanced actuator integrates a high-efficiency BLDC motor with a planetary gearbox, delivering exceptional torque, smooth motion, and reliability across demanding applications.

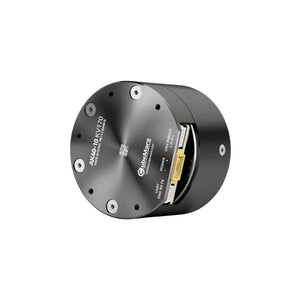

AK40-10 Front View

🔧 Three-in-one actuator: integrated BLDC motor, planetary gearbox, and FOC driver for compact, high-efficiency performance in robotics and automation.



✨ Key Features

💪 High Torque Output: Delivers up to 4.1 N·m peak torque, ideal for legged robots, exoskeletons, and AGVs. A true high torque BLDC motor for demanding tasks.

📏 Compact & Lightweight: Weighs only 200 g, fits tight spaces without sacrificing power. Perfect as a compact brushless DC motor for mobile platforms.

🎮 Versatile Control Modes: Supports servo control and motion control via CAN/UART. A flexible BLDC servo motor for dynamic applications.

🔇 Quiet & Smooth Operation: Optimized gear design ensures low noise (50 dB) and vibration-free motion. Ideal for precision and stealthy systems.

🎯 High Precision: Achieves 0.1° positioning accuracy with 14-bit magnetic encoder. Excellent for fine motion control and feedback systems.

AK40-10 Side View



📐 Specifications

Specification Value Specification Value
Application Legged Robot, Exoskeleton, AGV Peak Torque (Nm) 4.1
Driving Method FOC Peak Current (ADC) 7.3
Operating Temperature -20°C ~ 50°C No-Load Speed (rpm) 435
Winding Type Delta KV Constant (rpm/V) 170
Insulation Level Class C KT (Nm/A) 0.056
High-Voltage Insulation 500V 5mA/2s KE (V/krpm) 5.88
Insulation Resistance 500V 10MΩ Phase Resistance (mΩ) 978
Slots 24 Inductance (μH) 465
Pole Pairs 14 Rotor Inertia (g·cm²) 540
Reduction Ratio 10:1 Time Constant (ms) 2.2
Back Drive Torque None Torque Density (Nm/kg) 20.5
Backlash (arcmin) 18 Motor Constant (Nm/√W) 0.0568
Temp Sensor NTC MF51B CAN/UART Connector A1257WR-S-3P
Noise (dB) 50 Power Connector XT30PW-M
Dynamic Load Cr(N) 2810 Static Load Cor(N) 2760
Encoder Type Magnetic Resolution 14 bit
Rated Voltage 24V Rated Torque (Nm) 1.3
Rated Speed (rpm) 370 Rated Current (ADC) 2.7
Encoders 1 Weight (g) 200

AK40-10 Wiring

🔌 Plug & Play Integration: Built-in 14-bit absolute encoder, 24V driver ⚡, CAN & UART ports 📡🛠️, and open-source software 🧑💻 for fast deployment. Ideal for robotics, AGVs 🚀, and wearable exoskeletons.



🚀 Applications

  • 🏭 Industrial Automation
  • 🤖 Robotics & Exoskeletons
  • 🔄 Motion Control Systems
  • 💪 Compact High-Torque Projects

🧠 The CubeMars AK40-10 is the go-to solution for engineers seeking high torque, precision, and reliability in a compact actuator. Its advanced BLDC motor design and integrated gearbox deliver unmatched performance for mobile and stationary systems.
