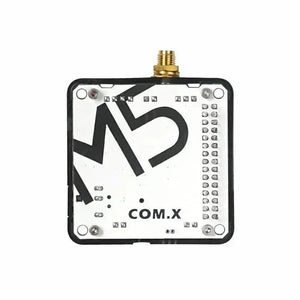

M5Stack COM.LTE Module

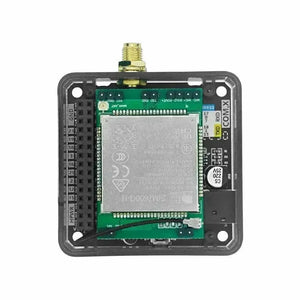

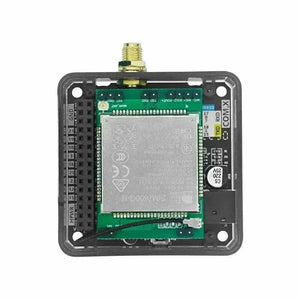

COM.LTE(4G) is a stackable multifunctional LTE communication module, built-in LTE communication module SIM7600G, supports LTE-TDD/LTE-FDD/WCDMA and GSM frequency bands, supports LTE.CAT4 (downlink speed is 150Mbps), supports voice calls SMS with SMS.

It has stable performance, a small appearance, high-cost performance, and can realize the transmission of SMS and data information with low power consumption. The module has a DC power input and can provide a 5V-12V power supply through an external power supply.

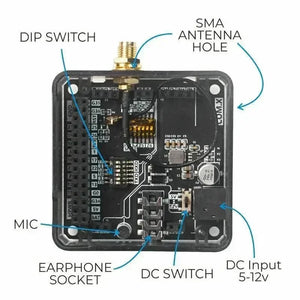

In order to facilitate the user to configure the pin, the DIP switch is used to set the pin. The onboard microphone and 3.5mm headphone jack support the insertion of headphones with a microphone. This module is especially suitable for scenarios that require high-speed network connections, such as video calls, drone data transmission, industrial Internet of Things, etc.

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Product Features

• Stackable design
• Support voice calls, SMS text messages, cellular data transmission
• Independent external power supply
• Built-in microphone
• AT command control
• SIM card type: MicroSIM
• Status signal: two LED indicators

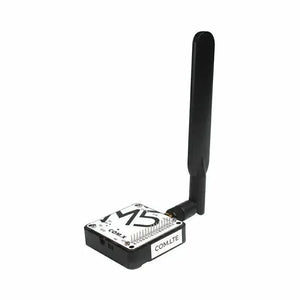

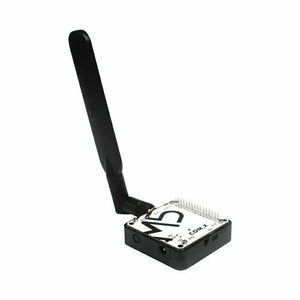

• External antenna: SMA antenna
• Serial communication: UART 115200bps

• Frequency band:
  • LTE-TDD B34/B38/B39/B40/B41
  • LTE_FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/ B18/B19/B20/B25/B26/B28/B66
  • WCDMA B1/B2/B4/B5/B6/B8/B19
  • GSM/GPRS/EDGE 850/900/1800/1900MHz
• Data transmission speed:
• LTE Cat4
  • UL:50Mbps
  • DL:150Mbps
• HSPA+
  • UL:5.76Mbps
  • DL:42Mbps
• WCDMA
  • UL/DL:384Kbps
• EDGE/GPRS
  • UL/DL:236.8Kbps
• Protocol
  • TCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS
  • TLS
  • RNDIS/ECM
  • FOTA

Certification

• CE/RCM/FCC/IC

• PTCRB/GCF

• AT&T/Verizon

• RoHS/REACH

Include

• 1x COM.LTE module
• 1x SMA antenna

Applications

• Remote meter reading system
• Automatic Web Spider SMS-notifier
• Wireless communication
• M2M industrial
• Vehicle-mounted
• Video
