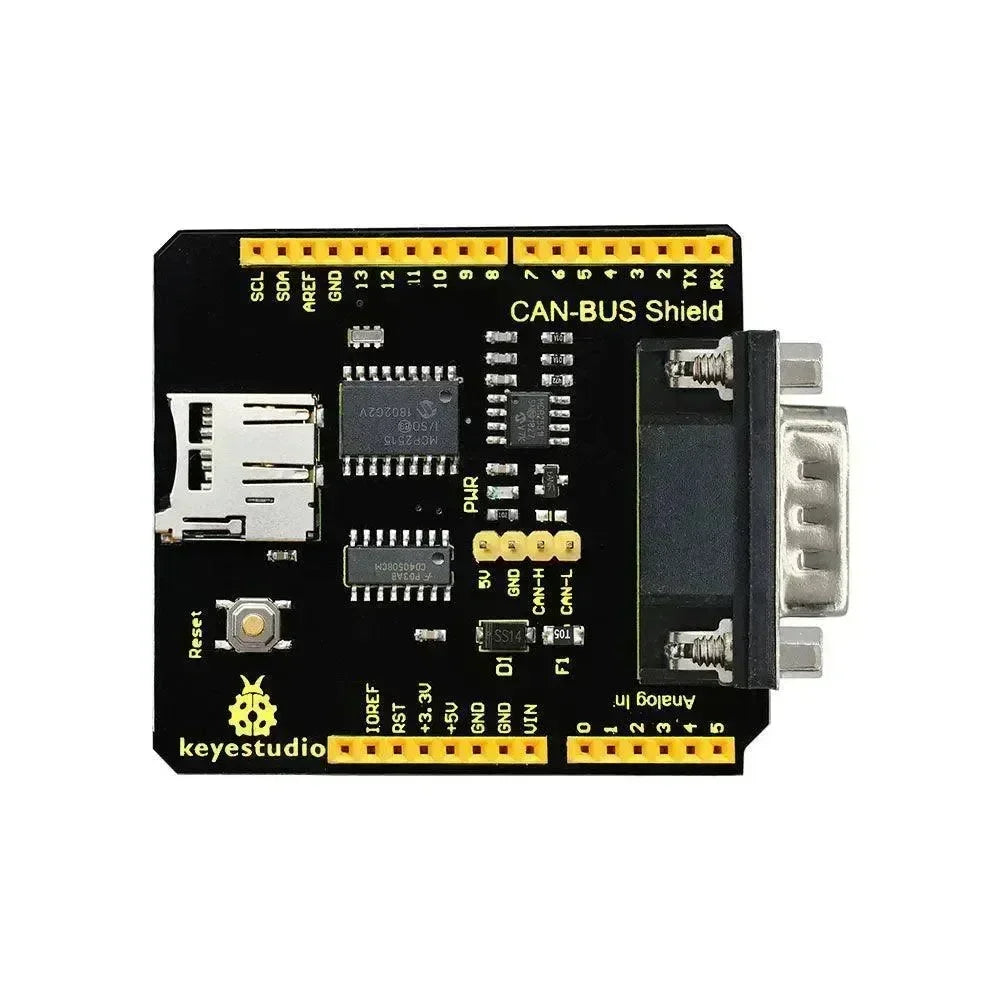

OpenELAB CAN-BUS Shield MCP2515 chip With SD Socket

OpenELAB CAN-BUS Shield is particularly designed for Arduino controllers.
The onboard BUS control chip can realize the data control on the CAN bus and data communication between devices.
It is compatible with the Arduino UNO standard interface; can be perfectly adapted to the main control boards such as Arduino UNO and Leonardo. As shown below.

• Operating voltage: DC5V

• Chip: MCP2515

• Dimensions: 66mm*54mm*28mm

• Weight: 24g

• Environmental attribute: ROHS

• Support standard frame, extended frame of transmission and reception; support two receiving methods: Polling and interrupt

• Provide various interfaces, such as uart, I2C, DB9 connector, etc.

• Support SD card data storage

• Support power supply via Arduino motherboard or DB9 connector
