ATOM Mate Adapter DIY Expansion Kit

Note: All products are tax-inclusive.

Description

ATOM MATE is a DIY expansion kit specifically designed for the ATOM series. The kit includes three types of accessories.

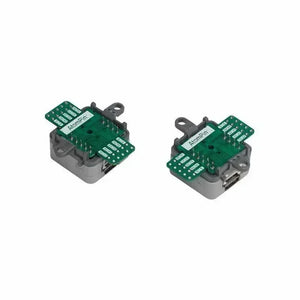

AtomPin: It is a pin breakout board that allows you to access the pins on the bottom of the ATOM board. With the specially designed bracket, you can easily secure the ATOM board without obstructing the use of the pins. The pin breakout board features perforations around the edges, allowing users to break it apart according to their specific needs. AtomPin makes it easier to build circuits on a breadboard or prototype board.

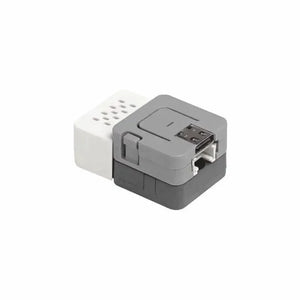

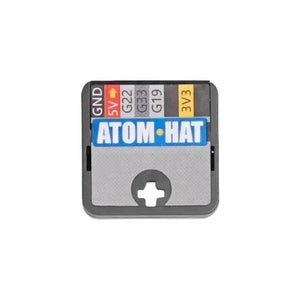

AtomHat: This is an adapter board designed to be compatible with the M5StickC Hat series products. If you already have HAT accessories, you can directly use them with AtomHat, increasing the reusability of your products. The AtomHat has cross-shaped holes at the bottom, making it convenient to connect and secure with building blocks or other components.

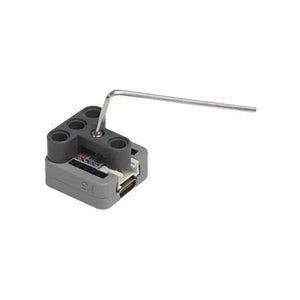

AtomMount: This is a specialized building block accessory designed to securely mount the ATOM board. It only requires a single screw to connect the ATOM board with other building blocks, enabling you to integrate the ATOM board seamlessly into your projects.

Notice

Please check the Hat pins before using AtomHat, you may need to modify the program pin number,when using PIR HAT with AtomHat, it is necessary to set the 33 pin as an internal pull-up

Product Features

• Compatible with Atom Matrix/Atom Lite
• Multiple DIY methods
• Flexible installation
• Adapt to HAT/bread board

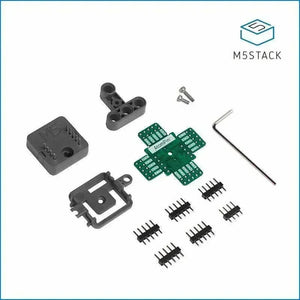

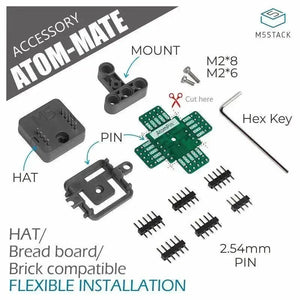

Include

• 1x AtomPin frame
• 1x AtomPin board
• 1x AtomHat
• 1x AtomMount
• 5x 5Pin
• 1x 4Pin
• 1x M2*6 Hexagon socket cup head machine screw
• 1x M2*8 Hexagon socket cup head machine screw
• 1x Hex key

Applications

• Experimental circuit construction
• Use with building blocks
• HAT transfer

Specification
