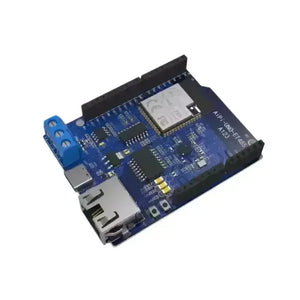

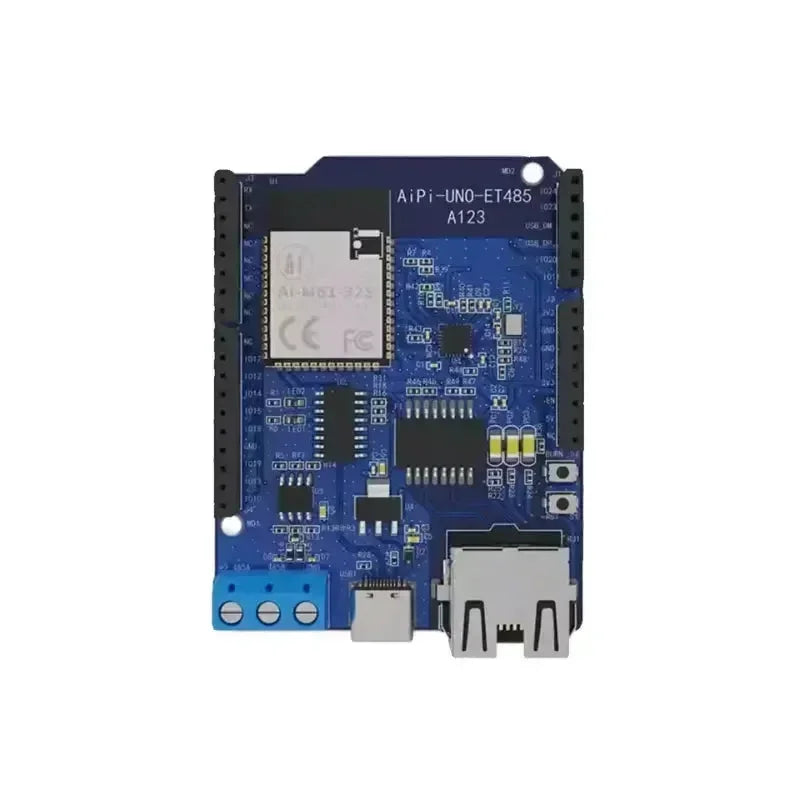

AiPi-UNO-ET485 is the Axiomtek open source team designed specifically for the Ai-M61-32S Arduino development board, support for Arduino IDE development, using the classic Arduino UNO board design, the row of motherboards are also compatible with the classic shape, the on-board Ethernet circuits, 485 interfaces and the CH340C The board is equipped with Ethernet circuit, 485 interface and CH340C serial port. The board is still equipped with the Ai-M61-32SWi-Fi6 module, which leads to all available GPIOs for easy access.
Features
- Ethernet Interface Support
- Arduino UNO classic board design
- Support RS485 interface
- On-board USB to TTL circuit
- Support Wi-Fi 6 & BLE 5.3
- All available IOs of the main control module Ai-M61-32S are pinned out.
- Support Arduino IDE development
Firmware burning instructions
Before burning, you need to select the correct port: ‘COM74’ and the corresponding serial port, and then click the ‘Upload’ button of ArduinolDE to let the board enter the burning mode.
Press and hold the download button
Press the reset button and release it.
Release the download button to enter the burning mode.
Note: After the firmware is burned, you need to press the reset button once for the programme to run.

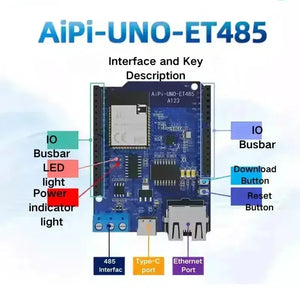

Interface and Key Description
Product Size
