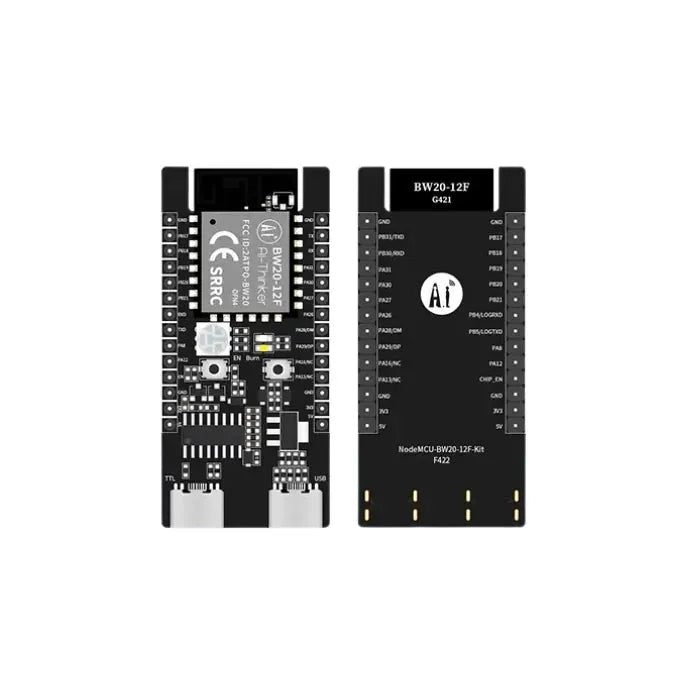

Ai-Thinker BW20-12F-Kit WiFi+BLE5.0 Module
The BW20-12F-Kit is a development board designed for the BW20-12F module, developed by Ai-Thinker Technology. The BW20-12F is a dual-frequency Wi-Fi + BLE SoC module, supporting dual-band Wi-Fi (2.4GHz or 5GHz), 802.11a/b/g/n WLAN protocol, and Bluetooth 5.0. It integrates a dual-core MCU: a high-performance ARM V8.1 (Cortex-M4F) core running at 330 MHz and a low-power ARM V8M (Cortex-M0) core. This development kit is ideal for Internet of Things (IoT), mobile devices, and smart home applications, providing advanced connectivity and processing power for your projects.
BW20-12F-Kit Key Features
-
Dual-Frequency Wi-Fi + BLE Connectivity
Supports Wi-Fi 802.11a/b/g/n (2.4GHz or 5GHz) and Bluetooth 5.0 for versatile wireless communication. Perfect for high-speed applications. -
High-Performance Dual-Core MCU
The module integrates a high-performance ARM V8.1 (Cortex-M4F) core running at 330 MHz for efficient processing and a low-power ARM V8M (Cortex-M0) core for optimized energy efficiency. -
Rich Peripheral Interfaces
Includes multiple interfaces such as UART, GPIO, ADC, PWM, IIC, SPI, SDIO, IR, SWD, and USB to accommodate various applications and ease of integration. -
Wide Application Range
Ideal for use in Internet of Things (IoT), mobile devices, wearable electronics, smart homes, and more. It ensures robust and stable wireless communication for a wide variety of projects. -
Power Supply and Efficiency
The BW20-12F-Kit operates with a supply voltage range of 3.0V ~ 3.6V, with a typical value of 3.3V, providing 500mA+ current to support high-demand applications. -
Temperature and Environmental Resilience
Operates in temperature ranges from -40°C to +85°C, making it ideal for both industrial and consumer environments, even in challenging conditions.
Main chip architecture diagram
Product Specifications
| Parameter | Details |
|---|---|
| Model | BW20-12F-Kit |
| Compatibility | BW20-12F Module |
| Form Factor | DIP-28 |
| Dimensions | 28 x 60 x 4.2mm |
| Frequency Range | 2400~2483.5 MHz and 5180~5825 MHz |
| Operating Temp | -40°C to +85°C |
| Storage Temp | -40°C to +125°C, <90% RH |
| Power Supply | 3.3V, typical 3.3V, 500mA+ |
| Interfaces | UART, GPIO, ADC, PWM, IIC, SPI, SDIO, IR, SWD, USB |
| BLE Version | Bluetooth 5.0 |
| Flash | Default 4MB, expandable to 16MB |
| IO Pins | 17 pins available for use |
Appearance Dimension
Size diagram
Why Choose BW20-12F-Kit?
- Dual-Frequency Support for versatile wireless applications using Wi-Fi 2.4GHz/5GHz and Bluetooth 5.0.
- Dual-Core ARM CPU ensures high performance for complex tasks while maintaining energy efficiency.
- Rich Set of Interfaces enables integration with a wide variety of peripherals, including sensors, actuators, and communication devices.
- Wide Operating Temperature Range from -40°C to +85°C ensures reliability in both industrial and consumer environments.
- Compact Form Factor and robust design make it suitable for prototyping and production applications.
Applications
The BW20-12F-Kit is ideal for developing applications such as:
- Smart Home Devices (lighting, smart switches, security systems)
- Wearable Electronics (fitness trackers, smartwatches)
- Industrial IoT Solutions (remote monitoring, asset tracking)
- Mobile Devices (smartphones, tablets, and other wireless-enabled products)
- Consumer Electronics (wireless audio devices, remote controls)
