Product descriptions

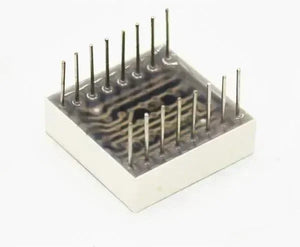

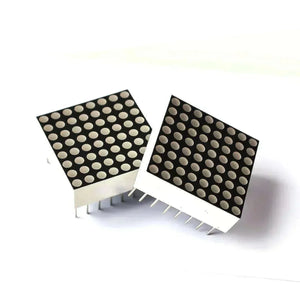

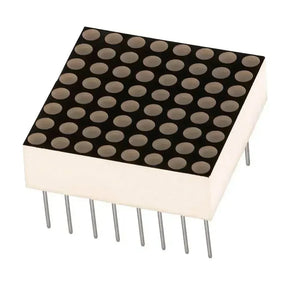

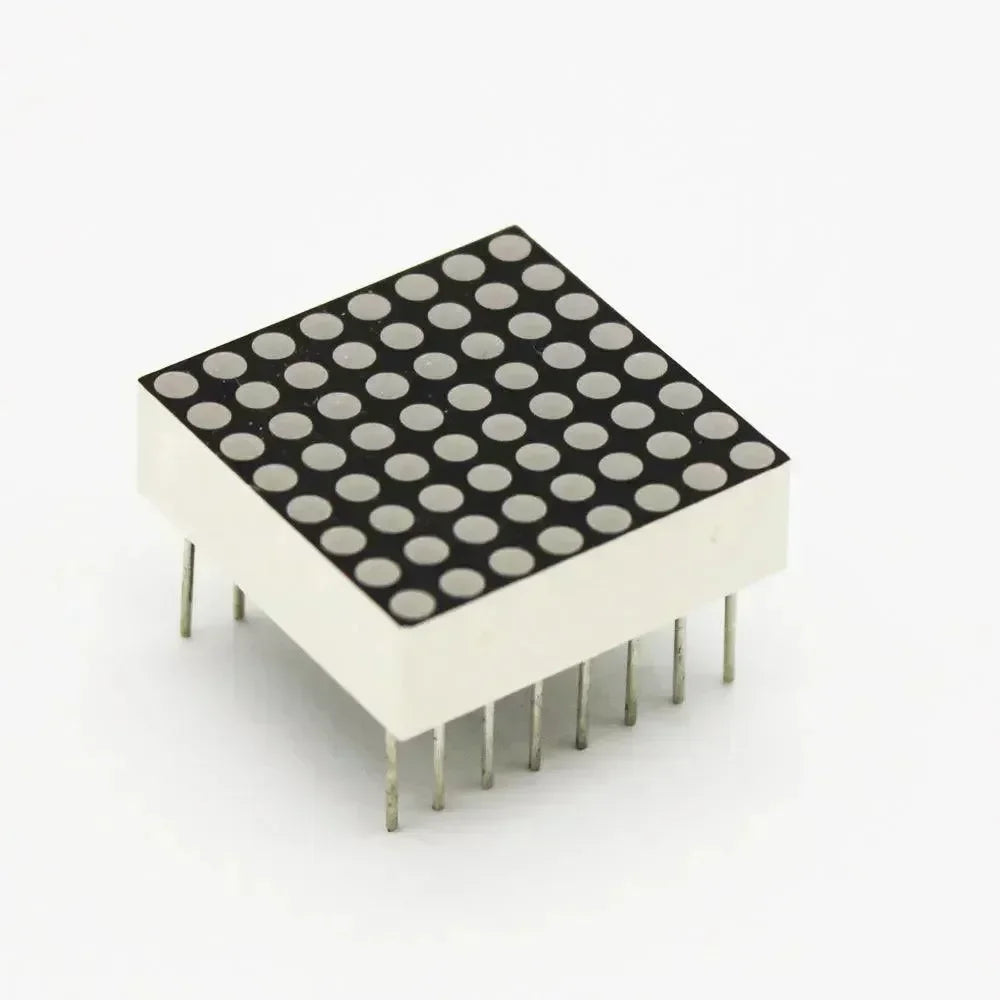

Single color bi-color 1.9mm 8x8 dot matrix small 8*8 led display
1.9mm 8x8 LED dot matrix display
Electro/Optical Characteristics If=20mA Ta=25 C
|
JSD-7881AUR |
JSD-7881BUR |
AlGaInP/GaAs Super red |
630 |
2.0 |
2.5 |
10 |
20 |
|
JSD-7881AUE |
JSD-7881BUE |
AlGaInP/GaAs Ultra |
625 |
2.0 |
2.5 |
40 |
80 |
|
JSD-7881AUA |
JSD-7881BUA |
AlGaInP/GaAs Ultra Amber |
605 |
2.0 |
2.5 |
40 |
60 |
|
JSD-7881AUY |
JSD-7881BUY |
AlGaInP/GaAs Ultra Yellow |
590 |
2.0 |
2.5 |
40 |
60 |
|
JSD-7881AUG |
JSD-7881BUG |
AlGaInP/GaAs Yellow Green |
574 |
2.0 |
2.5 |
10 |
15 |
|
JSD-7881APG |
JSD-7881BPG |
InGaN/Sic Pure Green |
525 |
3.2 |
3.8 |
150 |
200 |
|
JSD-7881AUB |
JSD-7881BUB |
InGaN/Sic Ultra Blue |
470 |
3.2 |
3.8 |
40 |
50 |
|
JSD-7881AUW |
JSD-7881BUW |
InGaN/Sic Ultra White |
x-0.31/y-0.31 |
3.2 |
3.8 |
200 |
400 |
1.9mm 8x8 LED dot matrix display
Absolute Maximum Ratings at Ta=25℃
|
Characteristic |
Symbol |
UR |
UE |
UG |
PG |
Unit |
|
Pulse Forward Current Per Seg. |
IFP |
100 |
100 |
100 |
100 |
mA |
|
DC Forward Current Per Seg |
IF |
30 |
30 |
30 |
30 |
mA |
|
Reverse Current Per Seg. |
IR |
10 |
10 |
10 |
10 |
uA |
|
Power Dissipation |
PD |
36 |
40 |
44 |
66 |
mA |
|
Operation Temperature |
TOPR |
-40 to +80 |
℃ |
|||
|
Storage Temperature |
TSTG |
-40 to +85 |
℃ |
|||
|
Lead Soldering Temperature |
|
260 |
℃ |
|||
Dot-matrix 8x 8 array, standard size or customized sizes
Dot size: 1.9mm
Sizes: 1.9 (0.7), 3.3 (1.3), 4.8 (1.9), 5.8 (2.3) or 10mm (4 inches) height and more customized sizes
Could be single red, green, amber and white for your option and also could be dual-color red and green
Common anode or cathode for your choice
Black or gray face
Applications:
indoor LED display and LED sign, elevator/lift, advertising display, bank screen, bus, train station and airport displays, LED moving message sign, LED strip display, LED clock display and other different display areas of equipment machines
