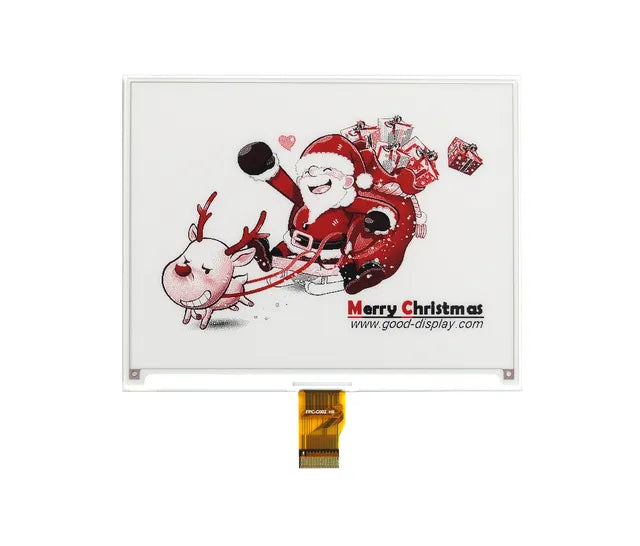

5.83-inch E-Paper Square Color Screen 648x480 E-Ink Display
EPaper Display's Basic Function
- Refresh Method: Full refresh for18s,Fast refresh for 12s,Partial refresh for 1.5s
- Display direction: Horizontal or vertical
EPaper Display's Basic Parameters
- Product size:5.83 inche
- Resolution: 648x480
- PPI: 138.32
- Color: Red, Black and White
- Driver IC: UC8179C
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0-40 ℃
EPaper Display's Main Features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
Product Application
- Shelf tags
- Smart tags
- Smart home applications
- Industrial instruments
|
PART NUMBER |
GDEY0583Z31 |
|
SIZE |
5.83 inch |
|
TYPE |
Dot Matrix |
|
IC |
UC8179C |
|
RESOLUTION |
648x480 |
| PPI | 138.32 |
|
OUTLINE SIZE(mm) |
125.4x99.5x1.2 |
|
ACTIVE SIZE(mm) |
118.7784x88.224 |
|
PIXEL PITCH(mm) |
0.1833x0.1833 |
|
OPERATING TEMP. |
0℃~40℃ |
|
STORAGE TEMP. |
-25℃~60℃ |
|
CONNECTOR |
24 Pin FPC |
|
COLOR |
Black,White, Red |
|
INTERFACE |
SPI |
|
FULL REFRESH(s) |
18 |
| FAST REFRESH(s) | 12 |
| PARTIAL REFRESH(s) | 1.5 |
|
POWER CONSUMPTION OF THE REFRESH(mW) |
9.9 |
|
STANDBY POWER CONSUMPTION (mW) |
0.0066 |
