EPaper Display's Basic Function
- Refresh Method: Full refresh for 22s, Fast refresh for 16s, Partial refresh for 1.3s
- Display direction: Horizontal or vertical
EPaper Display's Basic Parameters
- Product size: 5.79 inch
- Resolution: 792x272
- PPI: 144.63
- Color: Red, Black and White
- Drive IC: SSD1683
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0-40 ℃
EPaper Display's Main Features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
|
PART NUMBER |
GDEY0579Z93 |
|
SIZE |
5.79 inch |
|
TYPE |
Dot Matrix |
|
IC |
SSD1683 |
|
RESOLUTION |
792x272 |
| PPI | 144.63 |
|
OUTLINE SIZE(mm) |
150.92x56.94x1.0 |
|
ACTIVE SIZE(mm) |
139.00×47.74 |
|
PIXEL PITCH(mm) |
0.1755×0.1755 |
|
OPERATING TEMP. |
0℃~40℃ |
|
STORAGE TEMP. |
-25℃~70℃ |
|

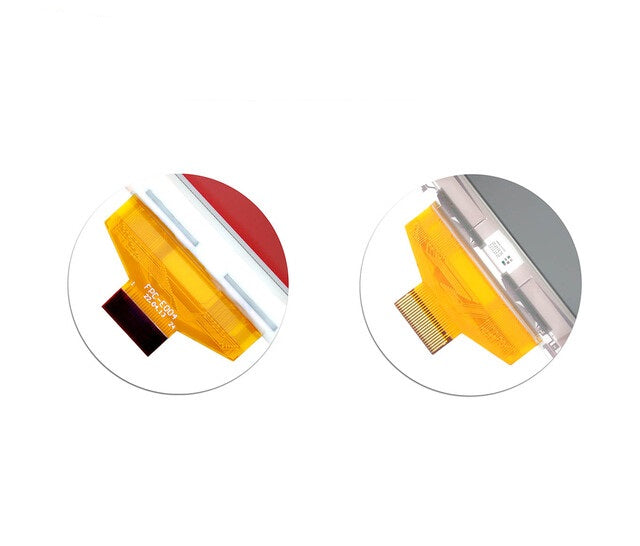

CONNECTOR |
24 Pin FPC, Pitch:0.5mm |
|
COLOR |
Black,White,Red |
|
INTERFACE |
SPI |
|
FULL REFRESH(s) |
22 |
| FAST REFRESH（s） | 16 |
| PARTIAL REFRESHS（s） | 1.3 |
|
POWER CONSUMPTION OF THE REFRESH(mW) |
27 |
|
STANDBY POWER CONSUMPTION (mW) |
0.006 |
