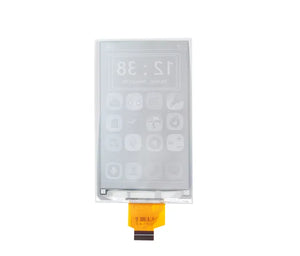

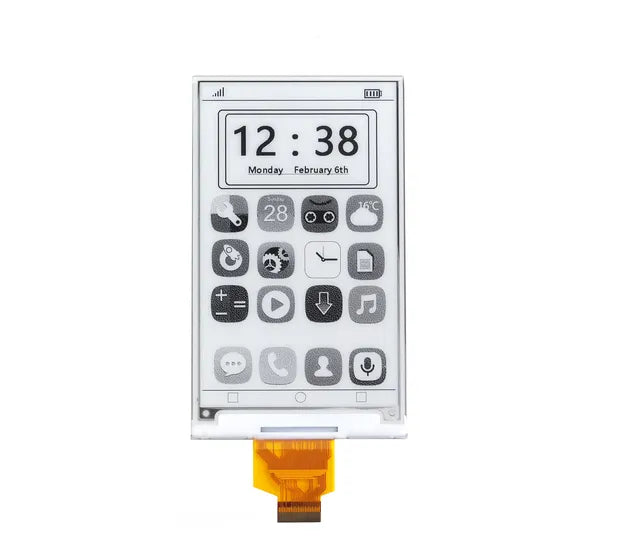

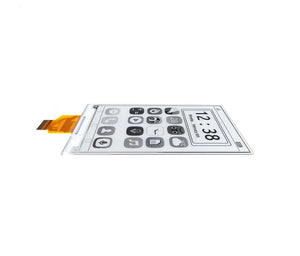

4.26-inch E-Ink Fast Update E-Paper Display 800x480 SPI Screen
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4/5
Thank you for your support - rate us on Trustpilot!
4.26-inch E-Ink Fast Update E-Paper Display 800x480 SPI Screen
EPaper Display's Basic Function
- Refresh Method: Full refresh for 3.5s、Fast refresh for 1.5s、Partial refresh for 0.42s
- Display direction: Horizontal or vertical
EPaper Display's Basic Parameters
- Product size: 4.26 inch
- Resolution: 800x480
- PPI: 219
- Color: Black and White
- Driver IC: SSD1677
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0-50 ℃
EPaper Display's Main Features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
| Part Number | GDEQ0426T82 |
| Size | 4.26 inch |
| IC | SSD1677 |
| Type | Dot Matrix |
| Resolution | 800*480 |
| PPI | 219 |
| Outline Size(mm) | 105.33*62.37*0.926 |
| Active Size(mm) | 92.8*55.68 |
| Pixel Pitch(mm) | 0.116*0.116 |
| Operating Temp. | 0℃~50℃ |
| Storage Temp. | -25℃~60℃ |

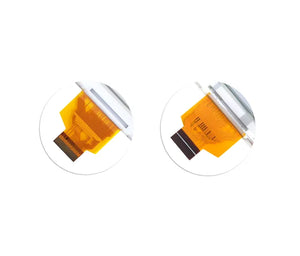

| Connector | 24 Pin FPC, Pitch:0.5mm |
| Color | Black,White |
| Max grayscale | 4 |
| Interface | SPI |
| Power consumption of the refresh(mW) | 26.4 |
| Standby power consumption Pc(mW) | 0.0066 |
| Partial Refresh Time(s) | 0.42 |
| Fast Refresh Time(s) | 1.5 |
| Time of refresh(s) | 3.5 |
