EPaper Display's Basic Function
- Refresh Method: Full refresh for 15s, fast refresh for 10s, partial refresh for 1.3s (Partial refresh only supports black-and-white display and does not support red)
- Display direction: Horizontal or vertical
EPaper Display's Basic Parameters

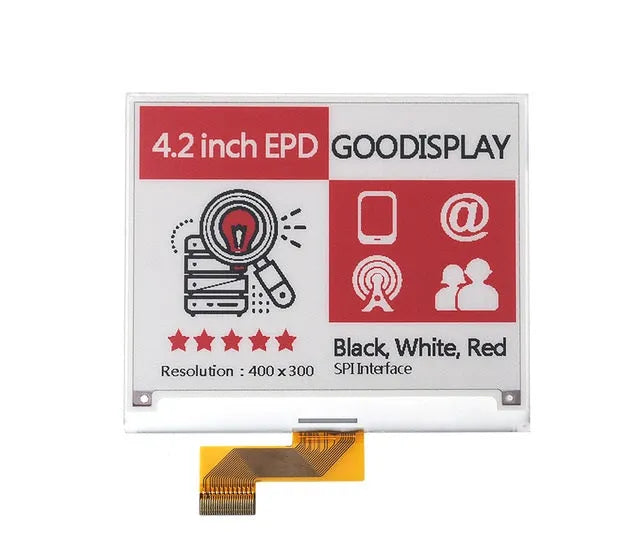

- Product size: 4.2 inch
- Resolution:400X300
- PPI: 119.05
- Color: Red, Black and White
- Drive IC: SSD1683
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0-40 ℃
EPaper Display's Main Features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
|
PART NUMBER |
GDEY042Z98 |
|
SIZE |
4.2 inch |
|
TYPE |
Dot Matrix |
|
IC |
SSD1683 |
|
RESOLUTION |
400x300 |
| PPI | 119.05 |
|
OUTLINE SIZE(mm) |
91x77x1.2 |
|
ACTIVE SIZE(mm) |
84.8x63.6 |
|
PIXEL PITCH(mm) |
0.212x0.212 |
|
OPERATING TEMP. |
0℃~40℃ |
|
STORAGE TEMP. |
-25℃~60℃ |
|

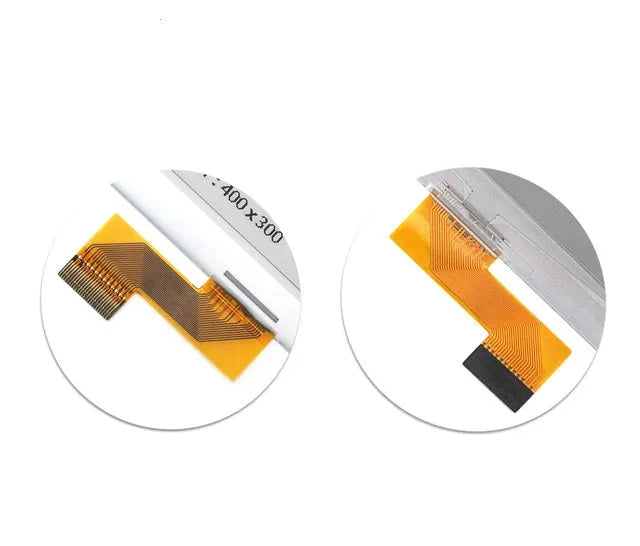

CONNECTOR |
24 Pin FPC |
|
MAX GRAYSCALE |
2 |
|
COLOR |
Black,White, Red |
|
INTERFACE |
SPI |
|
FULL REFRESH(s) |
22 |
| FAST REFRESH(s) | 16 |
| PARTIAL REFRESH(s) | 1.3 |
|
POWER CONSUMPTION OF THE REFRESH(mW) |
24.75 |
|
STANDBY POWER CONSUMPTION (mW) |
0.0165 |
