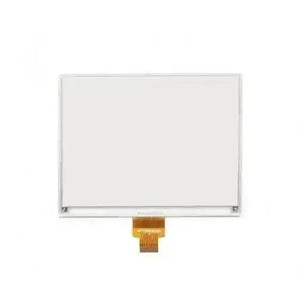

Waveshare 5.83 inch 3 Color Raw E-Ink Display 648x480 E-Paper

Overview

This is an E-Ink raw display, 5.83inch, 648×480 resolution, with embedded controller, communicating via SPI interface, supports red, black, and white three-color display.

Due to the advantages like ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf label, industrial instruments, and so on.

Features

• No backlight keeps displaying the latest content for a long time even when powered down

• Ultra-low power consumption, basically power is only required for refreshing

• Comes with development resources and manual (driver board schematic, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)


Specifications

• Operating voltage: 3.3V

• Interface: 3-wire SPI, 4-wire SPI

• Outline dimension: 125.40mm × 99.50mm × 1.18mm

• Display size: 119.232 × 88.320mm

• Dot pitch: 0.184 × 0.184mm

• Resolution: 648 × 480

• Display color: red, black, white

• Grey level: 2

• Full refresh time: 20s

• Refresh power: 26.4mW(typ.)

• Standby power: <0.017mW

• Viewing angle: >170°
