EPaper Display's Basic Function
- Refresh Method: Full refresh for 2s, Fast refresh for 1.5s, Partial refresh for 0.3s
- Display direction: Horizontal or vertical
EPaper Display's Basic Parameters
- Product size: 3.7 inch
- Resolution: 416x240
- PPI: 129.8
- Color: Black and White
- Driver IC: UC8253
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0-50 ℃
|
Customization |
Front Light | Available with front light or without, customizable brightness levels |
| Touch Screen | Available with touch screen or without | |
| Cover Plate | Glass/PMMA/AG (Anti-Glare)/AR (Anti-Reflective)1Customizable | |
| Plastic Enclosure | Standard or custom designs | |
| Additional Features | NFC Tag / Low Temperature | |
|
Delivery |
Delivery | 3~25 Days |
| Delivery port | Dalian.China | |
| Samples | 10000 piece can be customized | |
EPaper Display's Main features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
PARAMETERS
|
PART NUMBER |
GDEY037T03 |
|
SIZE |
3.7 inch |
|
TYPE |
Dot Matrix |
|
IC |
UC8253 |
|
RESOLUTION |
416x240 |
| PPI | 129.8 |
|
OUTLINE SIZE(mm) |
92.99x53x1.0 |
|
ACTIVE SIZE(mm) |
81.54x47.04 |
|
PIXEL PITCH(mm) |
0.196x0.196 |
|
OPERATING TEMP. |
0℃~50℃ |
|
STORAGE TEMP. |
-25℃~70℃ |
|
CONNECTOR |

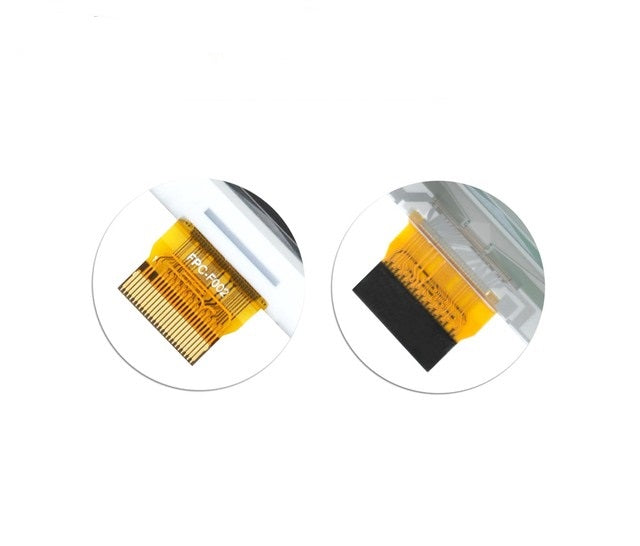

24 Pin FPC |
|
MAX GRAYSCALE |
4 |
|
COLOR |
Black,White |
|
INTERFACE |
SPI |
|
FULL REFRESH(s) |
2 |
| PARTIAL REFRESH(s) | 0.3 |
|
FAST REFRESH(s) |
1.5 |
|
POWER CONSUMPTION OF THE REFRESH(mW) |
18 |
|
STANDBY POWER CONSUMPTION (mW) |
0.003 |
