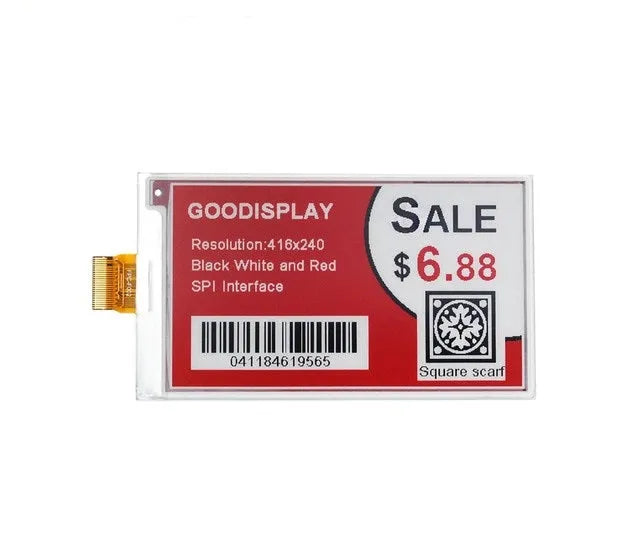

3.7-inch E-Paper Black Red White E-Ink Display 416x240 Screen

🏭 Product Inventory Location: China

€16,95 EUR
€16,95 EUR
€16,95 EUR
Please hurry! Only 200 left in stock
Subtotal: €16,95

Free Shipping from 30€ in Germany, 50€ in the EU & US!

- EU Countries & US Delivery Time: 2 weeks.

- Other Countries Delivery Time: 2.5 ~ 3 weeks.

3.7-inch E-Paper Black Red White E-Ink Display-01

3.7-inch E-Paper Black Red White E-Ink Display 416x240 Screen

€16,95
3.7-inch E-Paper Black Red White E-Ink Display-01
3.7-inch E-Paper Black Red White E-Ink Display-02
3.7-inch E-Paper Black Red White E-Ink Display-03
3.7-inch E-Paper Black Red White E-Ink Display-04
3.7-inch E-Paper Black Red White E-Ink Display-05

3.7-inch E-Paper Black Red White E-Ink Display 416x240 Screen

€16,95
Description

EPaper Display's Basic Function

  • Refresh Method: Full refresh for 16s, Fast refresh for 11s, Partial refresh for 1.5s
  • Display direction: Horizontal or vertical



EPaper Display's Basic Parameters

  • Product size: 3.7 inch
  • Resolution: 416X240
  • PPI: 129.8
  • Color: Red, Black and White
  • Drive IC: UC8253
  • Interface: SPI
  • Operating voltage: 3.3V
  • Operating temperature: 0-40 ℃



EPaper Display's Main Features

  • Display feature: Bistable display (retains the current content after a power outage)
  • Display mode: Pure reflection
  • Viewing angle: Wide viewing angle exceeding 170 degrees
  • Surface Treatment: Hard-coated for anti-glare effects
  • Energy conservation: No power consumption when not refreshing the screen
  • Eye Protection: No blue light emission, zero radiation



PART NUMBER

GDEY037Z03

SIZE

3.7 inch

TYPE

Dot Matrix

IC

UC8253

RESOLUTION

416x240
PPI 129.8

OUTLINE SIZE(mm)

92.99x53x1.0

ACTIVE SIZE(mm)

81.54x47.04

PIXEL PITCH(mm)

0.196x0.196

OPERATING TEMP.

0℃~40℃

STORAGE TEMP.

-25℃~70℃

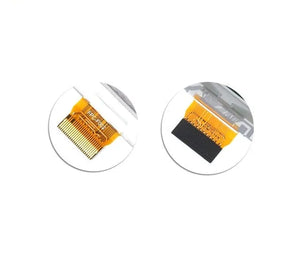

CONNECTOR

24 Pin FPC

MAX GRAYSCALE

2

COLOR

Black, White, Red

INTERFACE

SPI

FULL REFRESH(s)

16
FAST REFRESH(s) 11
PARTIAL REFRESH(s) 1.5

POWER CONSUMPTION OF THE REFRESH(mW)

26.4

STANDBY POWER CONSUMPTION (mW)

0.003
