E-POWERRC 25kg Servo Steel Gear

€50,00 EUR
€50,00 EUR
€50,00 EUR
Save €0,00
Color: DC5525-180
Subtotal: €50,00

Free Shipping from 50€ in EU / 80€ Worldwide

- Product Inventory Location: China

- EU Countries Delivery Time: 1.5 weeks.

- Other Countries Delivery Time: 2 ~ 2.5 weeks.

E-POWERRC 25kg Servo Steel Gear - OpenELAB

E-POWERRC 25kg Servo Steel Gear

€50,00

E-POWERRC 25kg Servo Steel Gear

€50,00
Color: DC5525-180

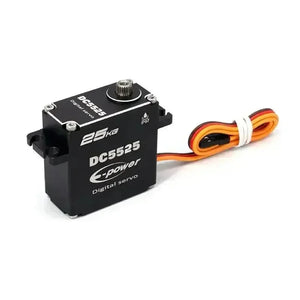

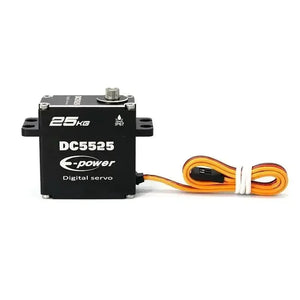

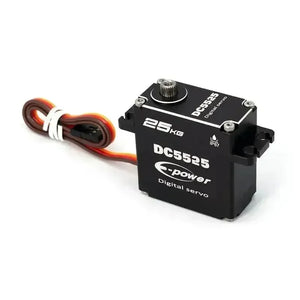

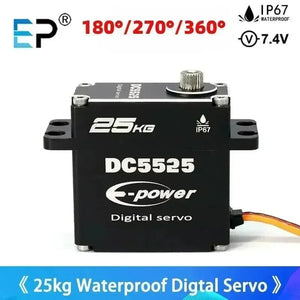

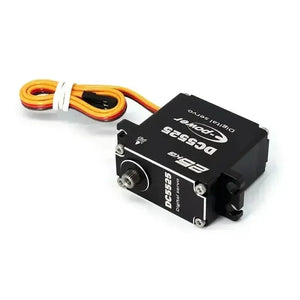

EP DC5525 25kg RC Waterpoof Servo 180°/270° Full Aluminum Case Metal Gear High Torque for 1/8 1/10 1/12 RC Car/Robot/Boat DIY

Features:

1. 4.8V -7.4V high voltage, high performance.

2. Waterproof performance:  IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 /270 degrees, excellent linearity, precision control.

3. Widely Use Digital High Torque Servo: this 25kg waterpoof Servo's maximum torque is up to 25 kg/cm@7.4V , compatible with 1/8, 1/10, 1/12 Scale Clawer Truck, trx4 defender, trx 4 sport, and gen8, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.

4. Metal Gear Servo: equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight. Dual ball bearings.

5.High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g)



Description:

DC5525 25KG Large torque Digital Waterproof servo, adopt DC motor, compared with ordinary servo, the speed is much faster and the reaction is also fast,4.8V -7.4V High Operation Voltage Range.

It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!



Specifications:

Brand:E-Power

Model:DC5525

Color:Black

Control Angle:180°/ 270°optional

Gear Material:Metal Gear

Case Material:Full Aluminum Case

Control System:PWM Control (1500usec in the central point)

Operation Voltage Range:4.8V -7.4V

Storage Temperature Range: -30℃~80℃

Operation Temperature Range:-20C°~ +60C°

Circle:>80000 times without load

Operation Travel:60°±1

Limit angle :180°± 1/270°± 1 optional

Direction:Re-clock wise/ Pulse Travel 500→2500 μsec

Diver type:Mos Drive

Motor Type:DC motor

Potentiometer Type:Direct Drive

Amplifier Type:Digital Control

Waterproof performance: IP67



Dimensions:40x20x40.50mm

Weight:80g (without servo horn)



Test Voltage: 5V / 6V / 7.4V

Idle current(at stopped): 270mA@5V / 320mA@6V / 360mA@7.4V

Operating speed (at no load):0.24 sec/60°@5V; 0.2sec/60°@6V; 0.16sec/60°@7.4V

Stall torque (at locked): 18.6kg-cm@5V; 22.4kg-cm@6V; 25.9kg-cm@7.4V

Running Current: 1.9A@5V; 2.3A@6V; 2.8A@7.4V



Dead band width :2µsec



Ball Bearing:2BB

Connector Wire Length: 300MM JR Plug

Connector Wire Gauge:22AWG

Wire Info (Brown):Negative

Wire Info (Red):Positive

Wire Info (Black):Negative

Wire Info (Yellow):S Sinqle



Package included:

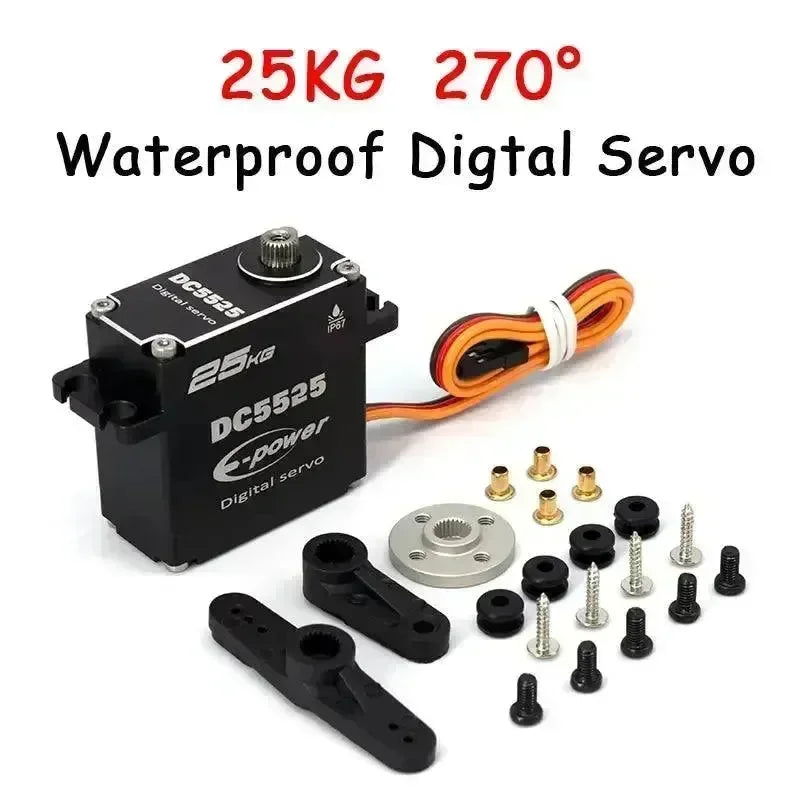

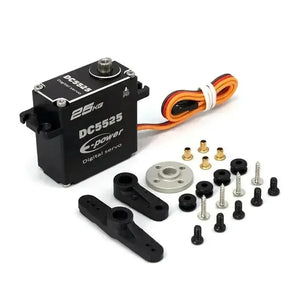

1 x 25KG Waterproof Digital Servo

1 x 25T Adjustable metal servo arm

1 x 25T Round Type Servo Horn

one set of accessories
