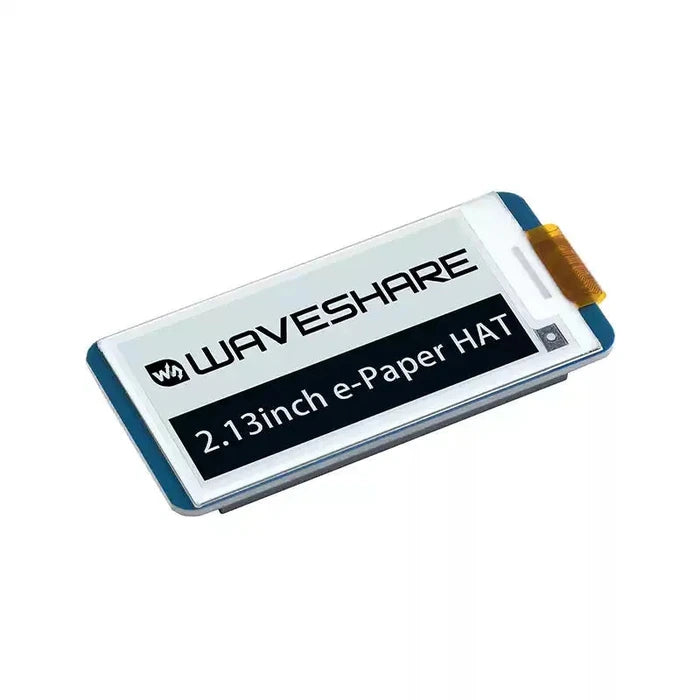

250x122, 2.13inch E-Ink Display HAT For Raspberry Pi, SPI Interface
2.13″ E-Paper HAT
Partial Refresh Support, Low Power, Wide Viewing Angle, Paper-Like Effect
Ideal for price tags, shelf labels, industrial instruments...
-
Size
2.13"
-
Resolution
250×122
-
Viewing Angle
>170°
-
Display Color
Black and White
-
Communication
SPI
-
Display Panel
E-paper
-
ExperiencePaper-like
-
Environment
Ambient Light Required
-
Display Type
Passively Reflective
-
Refreshing
Partial Refresh Support
Features At A Glance
-
No backlight, keeps displaying last content for a long time even when power down
-
Ultra low power consumption, basically power is only required for refreshing
-
Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
-
SPI interface, for connecting with controller boards like Arduino/STM32, etc.
-
Onboard voltage translator, compatible with 3.3V / 5V MCUs
-
Comes with online development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
|
OPERATING VOLTAGE |
3.3V/5V |
GREY SCALE |
2 |
|
INTERFACE |
3-wire SPI, 4-wire SPI |
PARTIAL REFRESH TIME |
0.3s |
|
OUTLINE DIMENSIONS |
65 × 30.2mm |
FULL REFRESH TIME |
2s |
|
DISPLAY SIZE |
48.55 × 23.71mm |
REFRESH POWER |
26.4mW (typ.) |
|
DOT PITCH |
0.194 × 0.194mm |
STANDBY CURRENT |
<0.01uA (almost none) |
|
RESOLUTION |
250 × 122 pixels |
VIEWING ANGLE |
>170° |
|
DISPLAY COLOR |
black, white |
|
|
Advantages Of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.

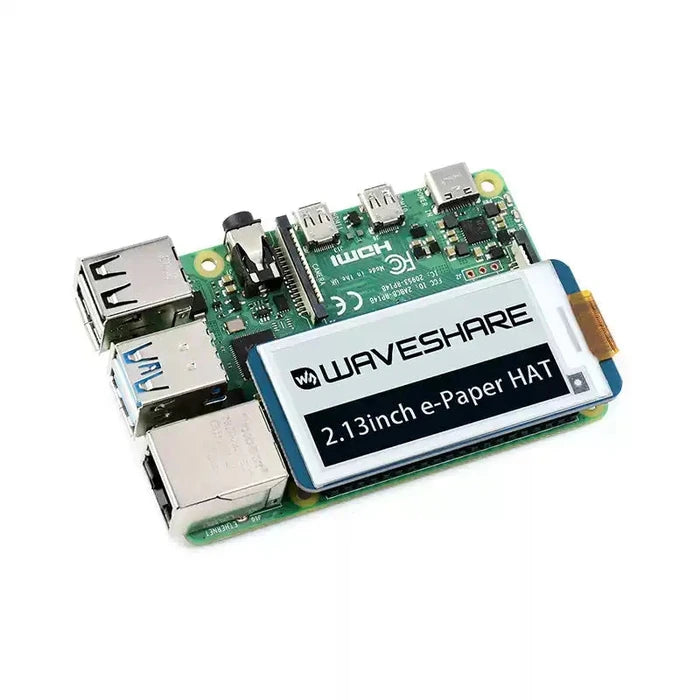

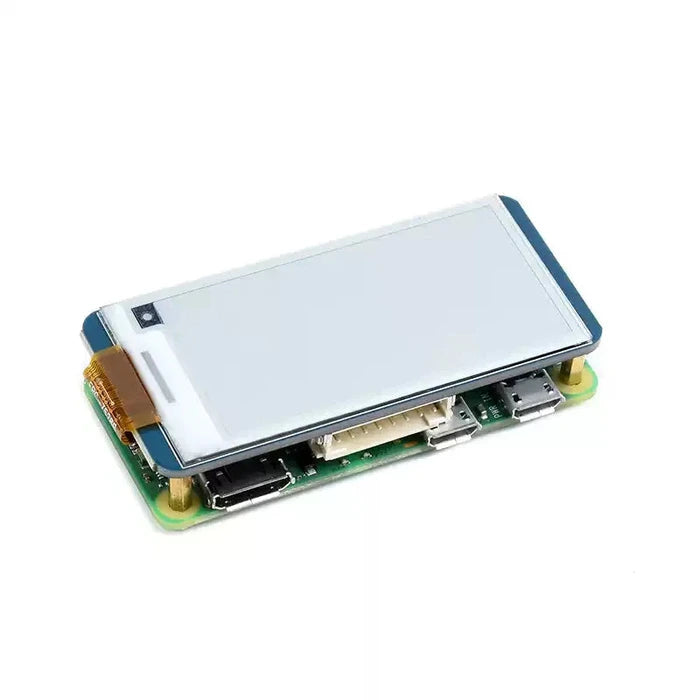

for reference only, the Raspberry Pi in the picture is NOT included
|

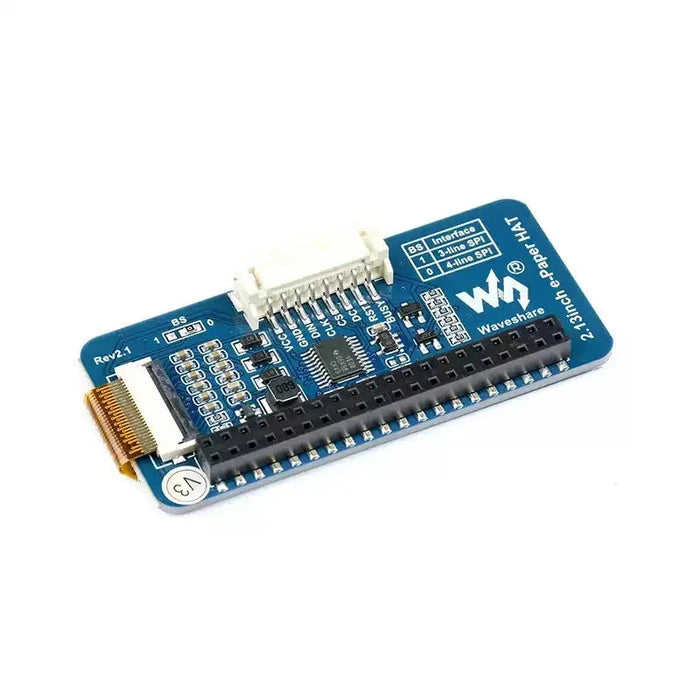

VCC |
3.3V/5V |
|
GND |
Ground |
|
DIN |
SPI MOSI pin |
|
CLK |
SPI SCK pin |
|
CS |
SPI chip selection, low active |
|
DC |
Data / Command selection (high for data, low for command) |
|
RST |
External reset, low active |
|
BUSY |
Busy status output (high for busy) |
Onboard Voltage Translator
Compatible With 3.3V / 5V MCUs
Application Examples
Suitable For Price Tags, Asset/Equipment Tags, Shelf Labels, Conference Name Tags...
Weight: 0.014 kg
- 2.13inch e-Paper HAT x1
- RPi screws pack (2pcs) x1
- PH2.0 20cm 8Pin x1
