Waveshare 1.02 inch E-Ink Module 128×80 E-Paper

Weight: 0.012 kg

1. 1.02inch e-Paper Module x1

2. 8PIN squid wire x2


1

2

Overview

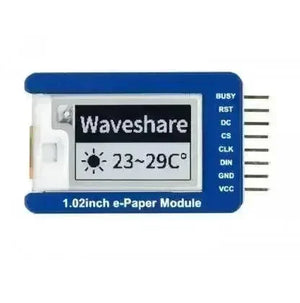

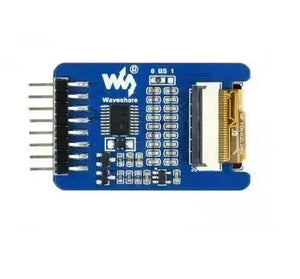

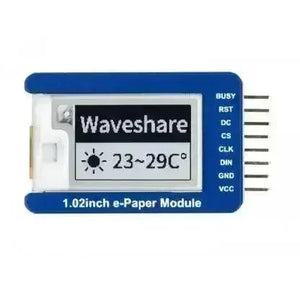

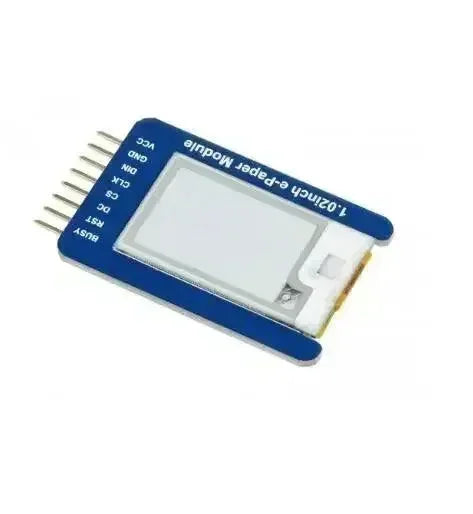

This is an E-Ink display module, 1.02inch, 128×80 resolution, with embedded controller, communicating via SPI interface, and supports partial refresh.

Due to advantages like ultra-low power consumption, wide viewing angle, and clear display without electricity, it is an ideal choice for applications such as shelf labels, industrial instruments, and so on.

Features

• No backlight keeps displaying the latest content for a long time even when powered down

• Ultra-low power consumption, basically power is only required for refreshing

• SPI control interface, for working with host boards such as Raspberry Pi/Jetson Nano/Arduino/Nucleo

• Onboard voltage translator, compatible with 3.3V/5V MCUs

• Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)


Specifications

• Operating voltage: 3.3V / 5V

• Interface: 3-wire SPI, 4-wire SPI

• Outline dimension: 42mm × 27mm

• Display size: 21.76mm × 14mm

• Dot pitch: 0.175 × 0.17

• Resolution: 128 × 80

• Display color: black, white

• Greyscale: 2

• Full refresh time: 2s

• Refresh power: 26.4mW(typ.)

• Standby power: <0.017mW

• Viewing angle: >170°
