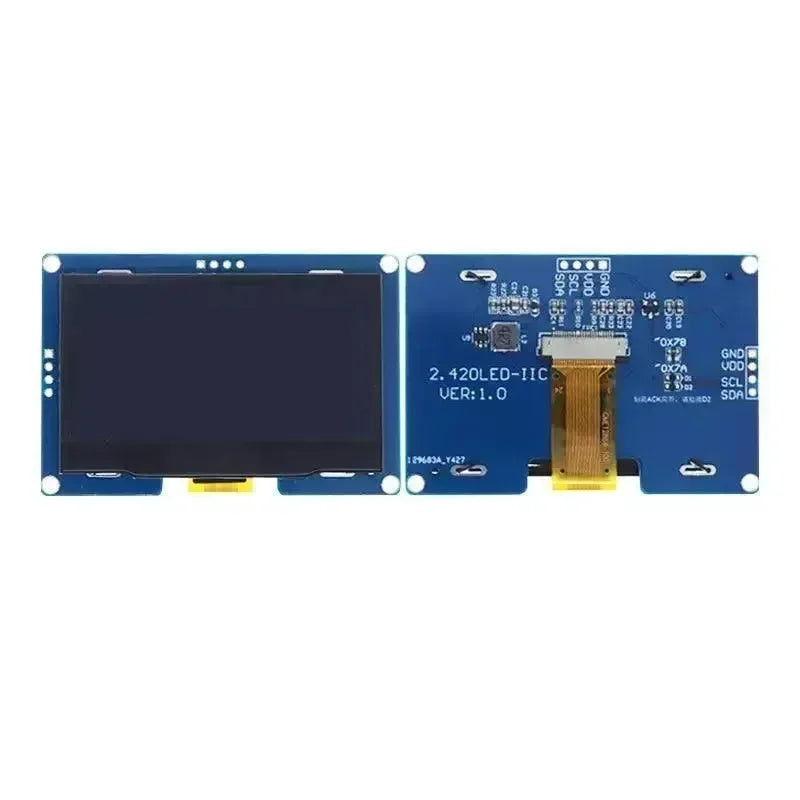

2.42 inch OLED Display Module, 128×64 Resolution, SPI / I2C Communication

Product Specifications

• Size: 2.42-inch OLED Module

• Material: PM OLED

• Resolution: 128*64

• Interface Type: IIC Interface

• Operating Voltage: 3V~5V

• Controller Chip: SSD1309

• Display Colors: White, Blue, Yellow, Green

• Display Area: 57.8 x 29.76 (mm)

• Module Dimensions: 70.08 x 48.04 x 5.23 (mm)

• Pixel Pitch: 0.219 x 0.219 (mm)

• Pixel Size: 0.175 x 0.175 (mm)

• Pin Count: 4 Pins

• Effective Display Area: 55.40 x 27.78 (mm)

• Operating Temperature: -40 to 70 degrees Celsius
