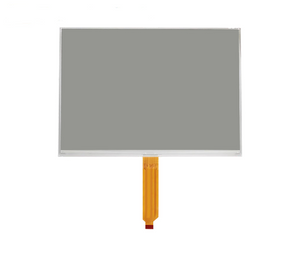

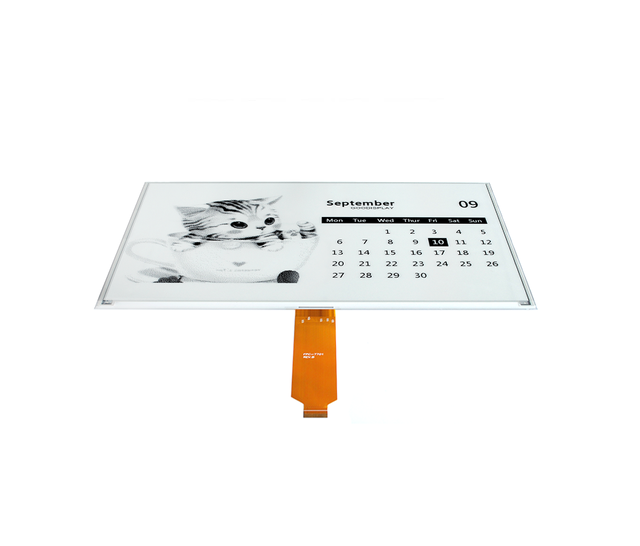

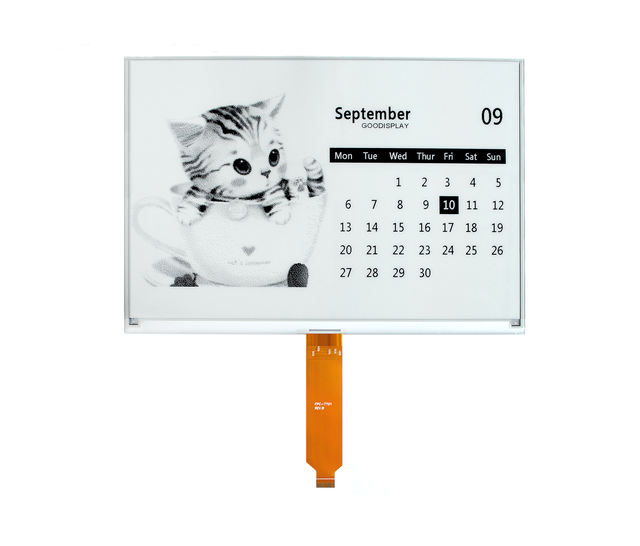

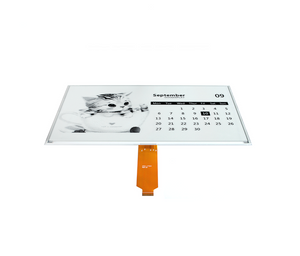

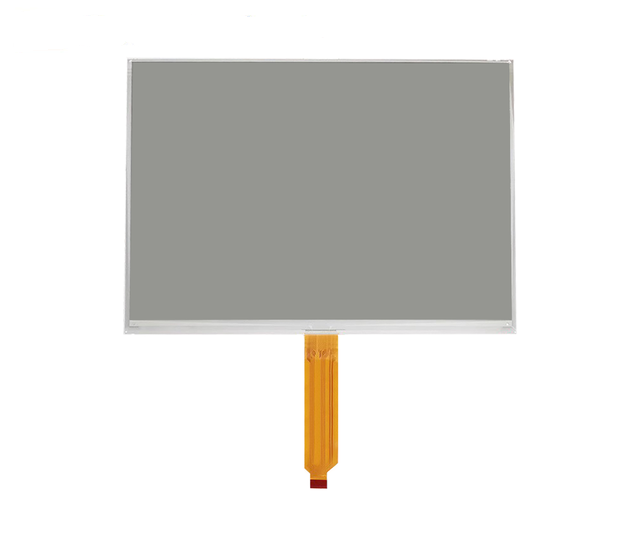

13.3-inch E-Paper HD E-Ink 960x680 Display A4 SPI Screen
📦 Location of the warehouse: China
Free shipping for you
Free Shipping from 30€ in Germany, 50€ in the EU!
Trustpilot rating: 4.4/5.0
Thank you for your support - rate us on Trustpilot!
13.3-inch E-Paper HD E-Ink 960x680 Display A4 SPI Screen
EPaper Display's Basic Function
- Refresh Method: Full update for 4s、Partial update for 0.4s (tested at 25°C ambient temperature)
- Display direction: Horizontal or vertical
EPaper Display's Basic Parameters
- Product size: 13.3 inch
- Resolution: 960x680
- PPI: 88.45
- Color: Black and White
- Driver IC: SSD1677
- Interface: SPI
- Operating voltage: 3.3V
- Operating temperature: 0 ℃-50 ℃
EPaper Display's Main Features
- Display feature: Bistable display (retains the current content after a power outage)
- Display mode: Pure reflection
- Viewing angle: Wide viewing angle exceeding 170 degrees
- Surface Treatment: Hard-coated for anti-glare effects
- Energy conservation: No power consumption when not refreshing the screen
- Eye Protection: No blue light emission, zero radiation
PARAMETERS
|
PART NUMBER |
GDEM133T91 |
|
SIZE |
13.3 inch |
|
IC |
SSD1677 |
|
RESOLUTION |
960x680 |
| PPI | 88.45 |
|
OUTLINE SIZE(mm) |
286.32x212.26x1.20 |
|
ACTIVE SIZE(mm) |
275.52x195.16 |
|
PIXEL PITCH(mm) |
0.287x0.287 |
|
OPERATING TEMP. |
0℃~50℃ |
|
STORAGE TEMP. |
-25℃~70℃ |
|

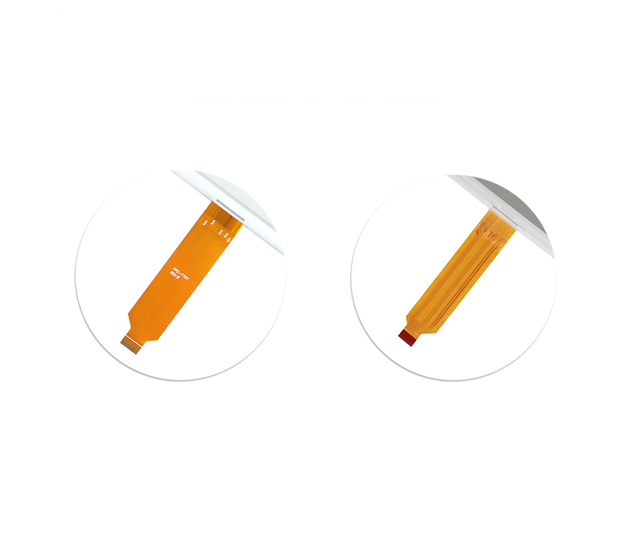

CONNECTOR |
24 PIN |
|
COLOR |
Black,White |
|
INTERFACE |
SPI |
| MAX GRAYSCALE | 4 |
|
REFRESH UPDATE(s) |
4 |
| PARTIAL UPDATE(s) | 0.4 |
| POWER CONSUMPTION(mW) | 66 |
|
STANDBY POWER CONSUMPTION(mW) |
0.003 |
