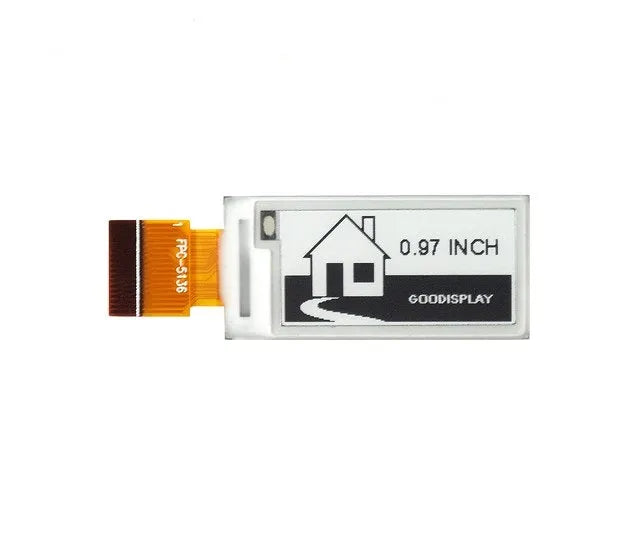

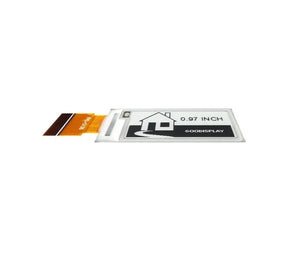

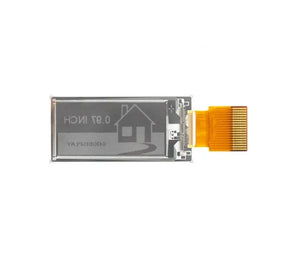

0.97 inch Small E-ink Screen Mini E-Paper Display

ePaper Display's Basic function

• Refresh Method: Full refresh for 2s、Partial refresh for 0.3s、4 grayscale refresh for 2s
• Display direction: Horizontal or vertical

ePaper Display's Basic parameters

• Product size: 0.97 inch
• Resolution:184x88
• PPI: 210.27
• Color: Black and White
• Driver IC:SSD1680

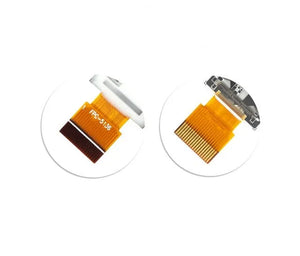

• Interface: SPI (18Pin)
• Operating voltage: 3.3V
• Operating temperature: 0-50 ℃
• Optional customized:  cover plate and shell

ePaper Display's Main features

• Display feature: Bistable display (retains the current content after a power outage)
• Display mode: Pure reflection
• Viewing angle: Wide viewing angle exceeding 170 degrees
• Surface Treatment: Hard-coated for anti-glare effects
• Energy conservation: No power consumption when not refreshing the screen
• Eye Protection: No blue light emission, zero radiation

Product Application

• Shelf tags
• Smart tags
• Wearable devices
• Smart home applications
• Industrial instruments
• Smart card
