Waveshare ESP32‑S3 WiFi/BLE Relay 6CH | RS485 | DIN‑Rail, Isolated

Waveshare ESP32‑S3 WiFi/BLE Relay 6CH | RS485 | DIN‑Rail, Isolated

27,85 €

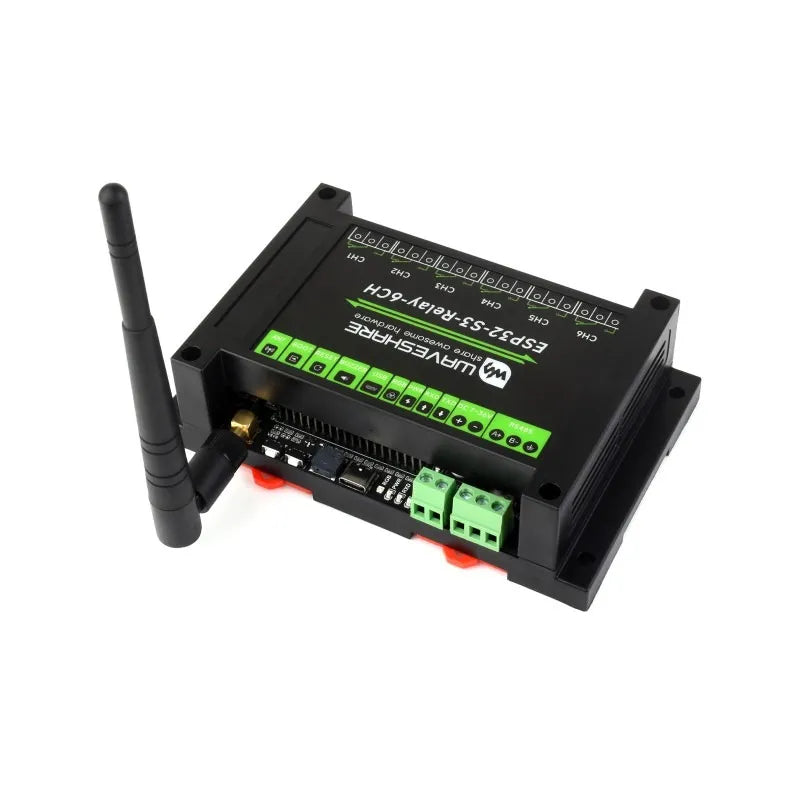

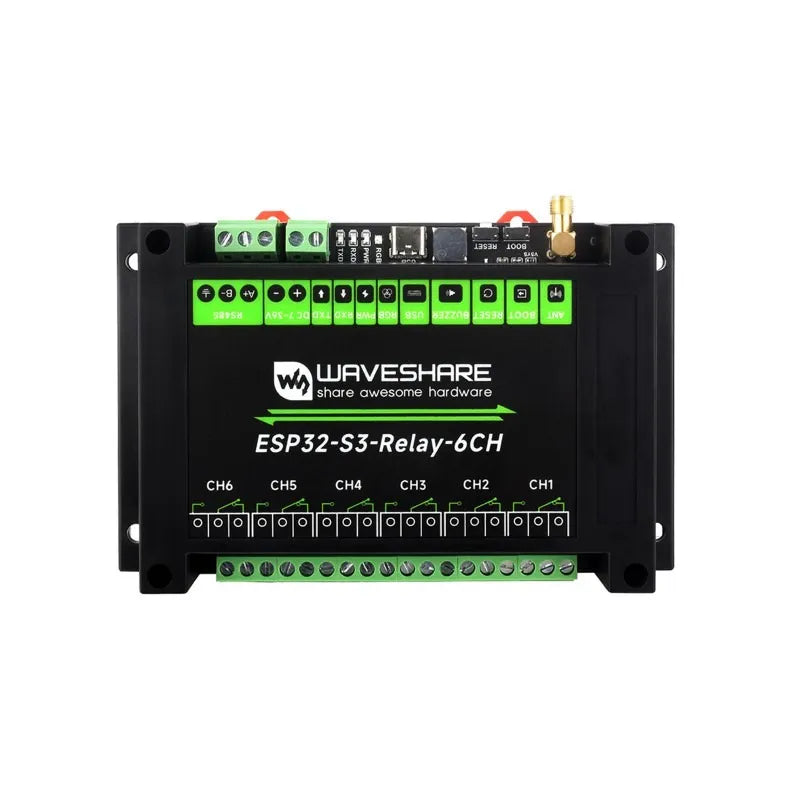

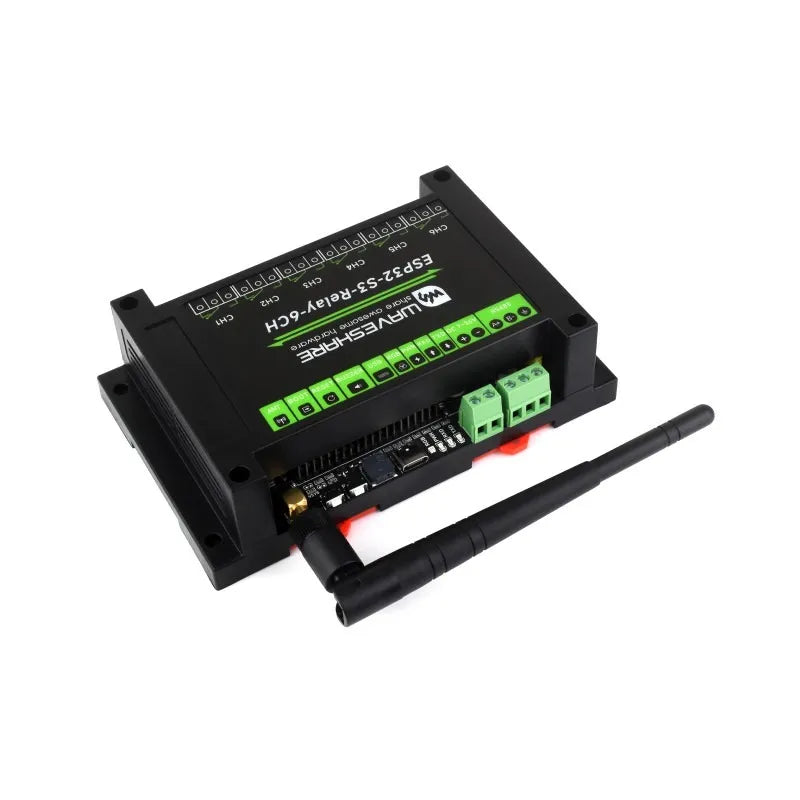

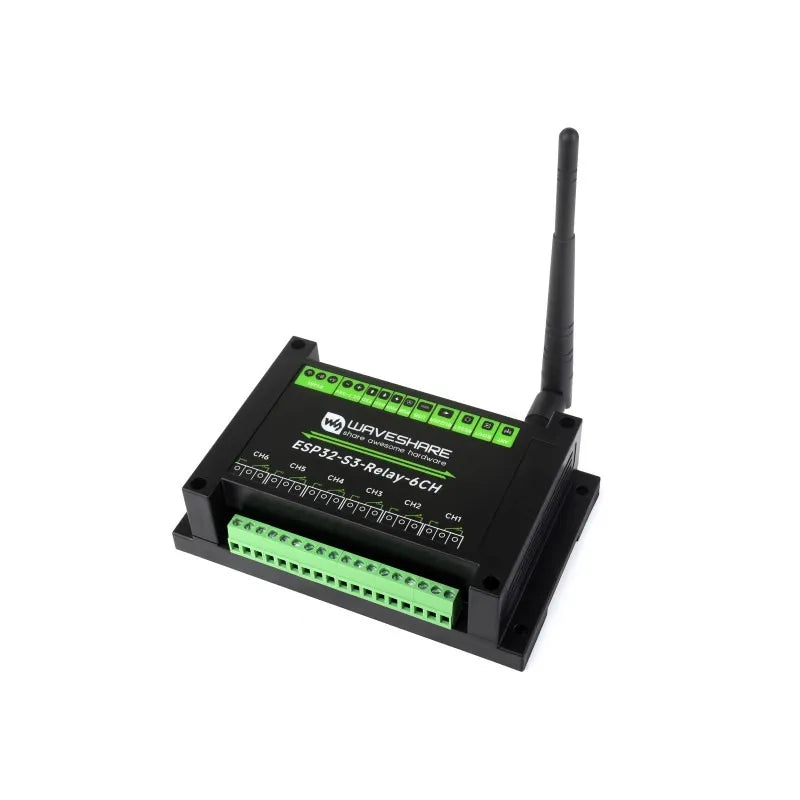

Waveshare ESP32‑S3 Relay 6CH is an industrial‑grade relay control board designed for IoT, automation, and smart home applications. Powered by the ESP32‑S3 dual‑core processor, it supports Wi‑Fi, Bluetooth LE, and an onboard isolated RS485 interface for reliable communication with Modbus devices. The board integrates six high‑quality relays (≤10A 250VAC / 30VDC) with optocoupler and digital isolation, ensuring safe and stable operation even in demanding environments. A 40‑pin Pico HAT compatible header allows expansion with modules such as RTC, CAN, RS232, or LoRa, while the rail‑mounted ABS case provides secure installation. With wide voltage input (7–36V), USB Type‑C for programming, and built‑in indicators, this module offers a flexible and dependable solution for industrial and AIoT projects.


Key Features

  • High‑Performance MCU — ESP32‑S3, Xtensa® 32‑bit LX7 dual‑core @ 240 MHz with AI computing capabilities and encryption.

  • Wireless & Wired Connectivity — Integrated 2.4 GHz Wi‑Fi + Bluetooth 5 LE; onboard isolated RS485 port.

  • 6 Quality Relays — Contact rating ≤ 10 A 250 VAC / 30 V DC; direct control of high‑voltage appliances or DC loads.

  • Industrial‑Grade Isolation — Power isolation, optocoupler isolation, and digital signal isolation for enhanced safety.

  • Pico HAT Expansion — 40‑pin header compatible with Raspberry Pi Pico HATs (add RTC, CAN, RS232, LoRa, sensors, etc.).

  • Robust Protection — TVS diodes, surge suppression, ESD protection, and onboard matching resistor (enable via jumper).

  • User Indicators — RGB LED, power indicator, RS485 TX/RX LEDs, and onboard buzzer for status feedback.

  • Flexible Power Input — USB‑C or 7–36 V DC via screw terminal; onboard isolated power output for RS485 devices.

  • Compact DIN‑Rail Enclosure — ABS case for safe, easy installation.



Specifications

Microcontroller ESP32-S3 (Default module: ESP32-S3-WROOM-1U-N16, customizable for other modules)
Wireless communicatoin 2.4GHz WiFi (802.11 b/g/n)、Bluetooth 5, BLE
USB Connector USB Type-C
Power supply 5V
Functions Power supply, USB communication, firmware downloading, etc.
ISOLATED RS485 Connector Screw terminal
Direction control Hardware automatic control
Protection TVS diode, surge protection & ESD protection
Resistor Onboard reserved 120R matching resistor, NC by default, enabled via jumper
Expanded interface Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, easy to expand other functions such as RTC / CAN / RS232 / LoRa / sensor, etc
Relay Contact rating ≤10A 250VAC/30VDC
Relay channels 6
Contact form 1NO 1NC
Isolation Optocoupler isolation
LED indicators RGB RGB colorful LED, supports programmable control for display color
PWR Red power indicator, lights up when there is USB connection and voltage is detected
TXD Green TX indicator, lights up when the RS485 port sends data
RXD Blue RX indicator, lights up when the device port sends data back
power supply Screw terminal Voltage range 7~36V
Appearance Enclosure Rail-mount ABS protective case
Dimensions 145 × 90 × 40mm



Part List

  • ESP32-S3-Relay-6CH x1
  • 2.4G 4DB SMA antenna x1
  • Screwdriver x1



Onboard multiple isolation protection circuit

Multiple protections, more safe and reliable



High quality 6-Ch relays, supports RS485 and Bluetooth / WIFi remote control

Contact rating of the onboard relay up to 10A 250VAC/30VDC
Directly controlling 220VAC home appliances, or devices below 30VDC



Onboard Pico HAT compatible interface and RS485 interface for easy expansion

Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard 40PIN header compatible with some Raspberry Pi Pico HAT, for expanding more functions such as RTC / CAN / RS232 / LoRa / sensor, etc.



Supports Arduino, Micropython development

Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started



Applications

  • Industrial equipment control and monitoring

  • Home and building automation

  • Remote IoT relay switching via Wi‑Fi / Bluetooth / RS485

  • Sensor‑triggered relay control with full electrical isolation

  • Integration with Arduino, MicroPython, ESPHome, Home Assistant, and custom firmware


Support Batch Customization

Support software and hardware customization
Including hardware interface, LOGO, label, case and web page, etc.



What's On Board

  1. ESP32-S3
    up to 240MHz operating frequency, with 2.4GHz WiFi and BLE
  2. 6-channel quality relays
    contact rating per channel: ≤10A 250V AC or ≤10A 30V DC
  3. Optocoupler isolation
    prevents interference from external high-voltage circuit connected to the relay
  4. Digital isolation
    prevents interference from external signal
  5. Power supply isolation
    provides stable isolated voltage, needs no extra power supply for the isolated terminal
  6. TVS diode
    effectively suppresses surge voltage and transient spike voltage in the circuit
  7. Ceramic gas discharge tube
  8. Relay screw terminals
    for connecting with user devices
  9. 40PIN Raspberry Pi Pico HAT header
  10. RS485 bus interface
    for connecting to external RS485 devices
  1. Power supply screw terminal
    Supports DC 7~36V wide voltage input
  2. LED indicators
    PWR: power indicator
    RXD: RS485 RX indicator
    TXD: RS485 TX indicator
  3. WS2812 RGB LED
    controllable via GPIO38
  4. USB Type-C connector
    for module power supply, firmware downloading and USB communication
  5. Passive buzzer
    sound frequency is controllable via GPIO21
  6. ESP32 RESET button
  7. ESP32 BOOT button
  8. External antenna connector
    SMA female connector, for WiFi and Bluetooth wireless communication
  9. RS485 matching resistor jumper
    Onboard reserved 120R matching resistor, enabled via jumper
  10. Relays default control pin setting

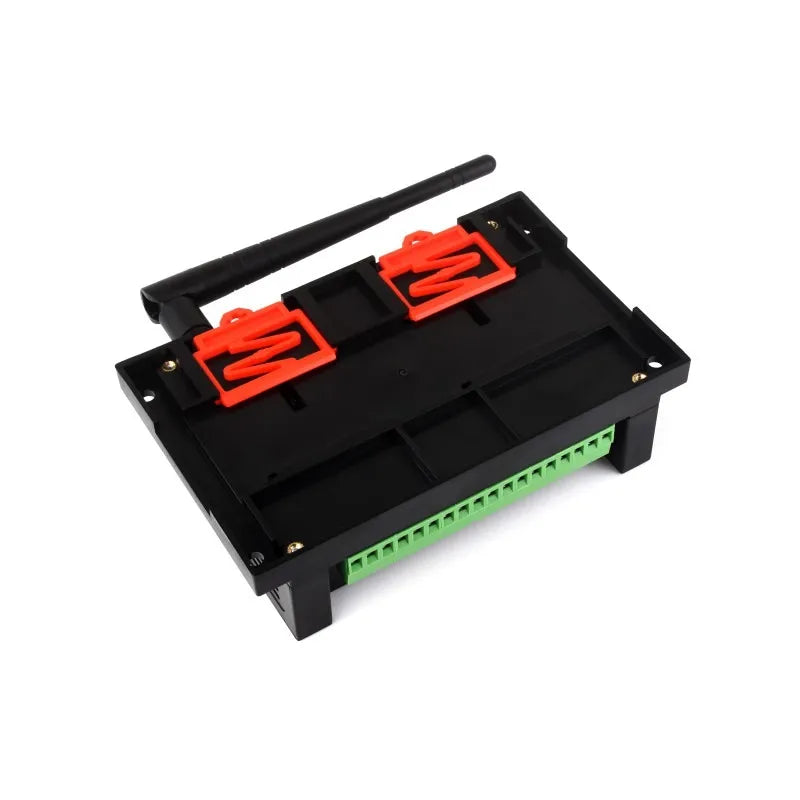

Enclosure Design

ABS Protection Enclosure With Rail-Mount Support, Easy To Install, Safe To Use



Size
