Home Waveshare Luckfox Core1106 Smart 86 Box Wireless Development Board

Waveshare Luckfox Core1106 Smart 86 Box Wireless Development Board

Trustpilot
SKU: Waveshare-31280
Type: Waveshare - RV1106G2
Sale price 65,95 €
incl. VAT
excl. VAT

Shipping within 72 hours

*Excluding pre-order items

Visa
PayPal
Mastercard
American Express
Shop Pay

Ask a question

Guarantee & Return Policy

Effective Date: December 10, 2025

At OpenELAB, we are committed to providing accurate product descriptions and high-quality electronics. The following policy outlines your rights and obligations, designed to be fair to both our customers and our business operations globally.

1. Warranty Policy

A. Standard Limited Warranty (Global & US)

For customers in the United States, Asia, and other non-EU regions:

  • Warranty Period: OpenELAB provides a 12-month warranty from the date of delivery.

  • Coverage: This warranty covers defects in material and workmanship under normal use.

  • Resolution: We will repair or replace defective units at no charge.

B. Statutory Rights for EU/UK Customers (EU Compliance)

If you are a consumer residing in the European Union or the UK purchasing from our global site:

  • Statutory Guarantee: You are entitled to a 24-month statutory guarantee for conformity defects present at the time of delivery, in accordance with EU consumer protection laws.

  • Relation: The Standard Limited Warranty (Section 1.A) applies in addition to, and does not replace, your statutory rights.

C. Warranty Exclusions (Applies to ALL Regions)

Warranty coverage is VOID if the damage is caused by:

  1. Misuse: Incorrect installation, reverse polarity, or exceeding voltage limits.

  2. Unauthorized Modification: This explicitly includes soldering, cutting pins, modifying the PCB, or flashing unauthorized/beta firmware that "bricks" the device.

  3. Physical Damage: Drops, moisture/water damage, or electrical surges (lightning).

  4. Normal Wear & Tear: Consumable parts (e.g., batteries), unless defective upon arrival.

Note: For non-warranty repairs (e.g., customer-induced damage), we may offer repair services for a fee. Shipping and diagnostic costs will be borne by the customer.

2. Return & Refund Policy

A. Return Window

  • Standard: You may request a return within 31 days of receiving your order.

B. Refund Conditions & Restocking Fees

To protect against policy abuse, the refund amount is strictly determined by the condition of the returned item.

1. Full Refund (100%)

  • The item is Brand New, Unopened, and Unused.

  • The original packaging is intact and sealed.

  • All accessories are present.

2. Partial Refund (Restocking Fee / Value Depreciation)
If the item is returned in a condition that prevents it from being sold as new, OpenELAB reserves the right to deduct a Restocking Fee (for US/Global) or Compensation for Loss of Value (for EU) from the refund amount.
Deductions apply if:

  • Signs of Use: Visible scratches, mounting marks on screw holes, or fingerprints.

  • Damaged Packaging: Original box is torn, written on, or missing.

  • Technical Modification: The device has been soldered, permanently installed, or flashed with unauthorized firmware.

  • Broken Seals: Anti-static bags or security seals have been opened.

Depending on the severity of the usage/damage, the deduction may range from 15% to 50% of the product price. Items damaged beyond repair due to misuse will not be refunded.

C. Shipping Costs

  • Defective / Wrong Item: OpenELAB covers the return shipping cost.

  • Customer Remorse (Changed Mind / Ordered Wrong Item): The customer is responsible for all return shipping costs to our designated return center (located in the US, Germany, or China, depending on your region). Original shipping fees are non-refundable unless required by local law.

3. Return Process (RMA)

To ensure a smooth return process, please follow these steps:

  1. Authorization: Contact us at info@openelab.io before returning any item. Returns without prior authorization will not be accepted.

  2. RMA Number: We will provide you with a Return Merchandise Authorization (RMA) number and the correct return address.

  3. Packing: Ship the item back in its original packaging with the RMA number clearly marked on the shipping label (not on the product box).

  4. Tracking: We strongly recommend using a trackable shipping method. OpenELAB is not responsible for returns lost in transit.
Share
Waveshare Luckfox Core1106 Smart 86 Box Wireless Development Board

Waveshare Luckfox Core1106 Smart 86 Box Wireless Development Board

Description

Waveshare Luckfox Core1106 Smart 86 Box Wireless Development Board is an intelligent 86-box style embedded control panel designed for smart home terminals, industrial IoT control, scenario-based automation, and wall-mounted human-machine interfaces. This SKU corresponds to the RV1106G2 variant of the Luckfox-Pico-86-Panel, combining a 4-inch 720 × 720 IPS touch display, RS485, dual relays, 100M Ethernet, audio support, and wide-voltage power input in a standard 86-box installation form factor.

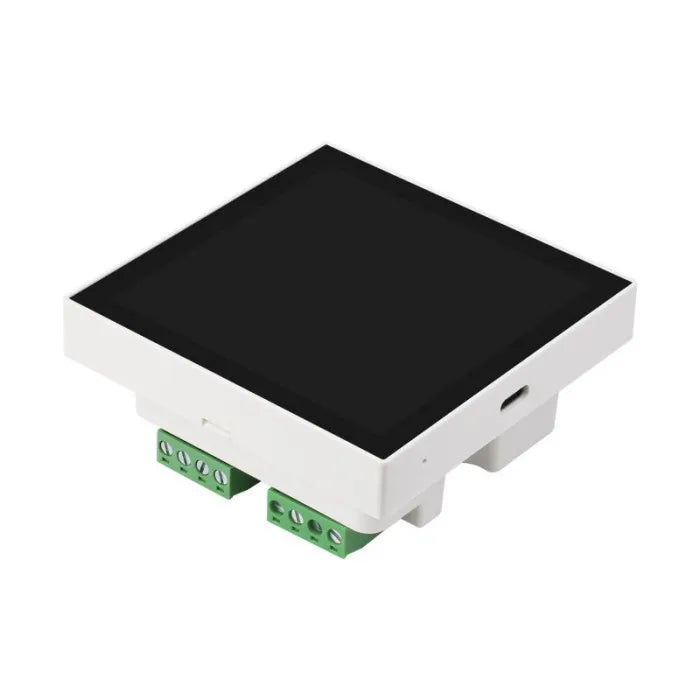

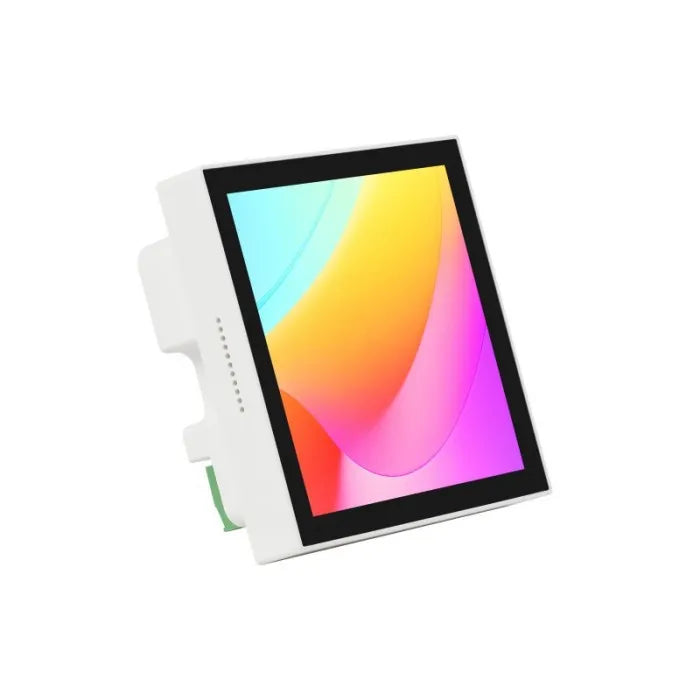

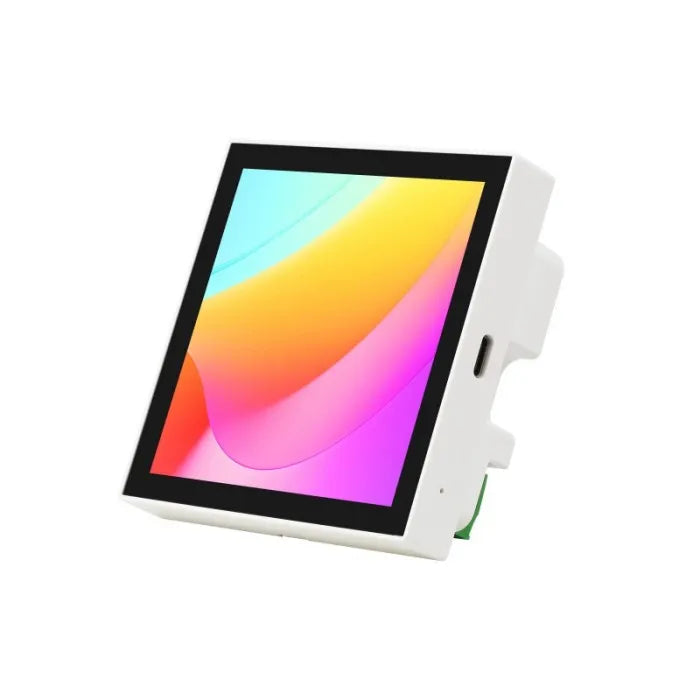

Waveshare Luckfox Core1106 Smart 86 Box

This RV1106G2 version is built for embedded control and AIoT panel applications that need local interaction, industrial communication, relay switching, and flexible secondary development. It is suitable for smart switch panels, scenario-based room control, industrial terminals, and custom wall-mounted Linux touch interfaces.

Features

  • Rockchip RV1106G2 processor with Cortex-A7 1.2GHz architecture.
  • 0.5 TOPS NPU with support for INT4 / INT8 / INT16 mixed operations.
  • 4-inch IPS touch display with 720 × 720 resolution.
  • 5-point capacitive touch using the GT911 touch chip.
  • 2-channel relay with optocoupler isolation for reliable switching control.
  • RS485 interface with power isolation, digital isolation, and protection design.
  • 10/100M Ethernet for wired network communication.
  • Wide DC input range of 6V to 30V for easier integration in control systems.
  • Onboard microphone and speaker interface for audio interaction.
  • Standard 86-box structure for embedded wall installation.

Specifications

Variant RV1106G2
Processor Cortex-A7 1.2GHz
NPU 0.5 TOPS, INT4 / INT8 / INT16
VEPU H.264 / H.265
ISP Max 5M @ 30fps
Memory 128MB DDR3L
Storage 8GB eMMC
Ethernet 10/100M PHY
Audio SMT microphone + MX1.25 microphone interface
USB 1 × USB Device
RTC Coin cell holder
Relay 2 × NO / Common
RS485 1 × RS485
Power Input DC 6V to 30V
Display 4-inch IPS touch display, 720 × 720
Touch Type Capacitive 5-point, GT911
Brightness 400cd/m²
Contrast Ratio 1000:1
Viewing Angle 170°
Outline Dimension 84.0 × 84.0 mm

Waveshare Luckfox Core1106 Smart 86 Box dimensions

Applications

  • Smart home wall panels for scene control and room automation.
  • Human-machine interfaces for industrial and building systems.
  • Smart switch terminals with integrated touch UI and relay outputs.
  • Industrial IoT control nodes with RS485 and Ethernet communication.
  • Wall-mounted Linux control panels for custom scenario-based interfaces.
  • Embedded automation projects requiring local display, audio, and control outputs.

Waveshare Luckfox Core1106 Smart 86 Box application scenarios

Product List

  1. Luckfox-Pico-86-Panel × 1

Other Content

Display and touch performance are important parts of this product. The onboard 4-inch IPS screen offers a 170° viewing angle and 5-point capacitive touch for responsive wall-panel interaction.

Waveshare Luckfox Core1106 Smart 86 Box IPS display

Waveshare Luckfox Core1106 Smart 86 Box capacitive touch

Control interfaces include onboard audio, RS485, relay outputs, and Ethernet for more complete local and networked control deployments.

Waveshare Luckfox Core1106 Smart 86 Box audio

Waveshare Luckfox Core1106 Smart 86 Box RS485

Waveshare Luckfox Core1106 Smart 86 Box relays

Waveshare Luckfox Core1106 Smart 86 Box ethernet

Installation follows the standard 86-box structure. A back box depth of 33mm or more is recommended, and if the Ethernet port is used, 35mm or more is preferred. If using a 33mm to 35mm box, a short-body RJ45 connector cable is recommended.

Waveshare Luckfox Core1106 Smart 86 Box installation diagram

What's on board is also useful for development and integration planning.

Waveshare Luckfox Core1106 Smart 86 Box onboard components 1

Waveshare Luckfox Core1106 Smart 86 Box onboard components 2

You can also review OpenELAB articles on Waveshare ecosystem and embedded device setup basics for related project context.

Resources

FAQ

Q: Which processor variant does this SKU use?
A: This SKU corresponds to the RV1106G2 variant.

Q: Does this version include wireless networking?
A: The product family includes wireless-capable versions, but the official comparison table marks the RV1106G2 variant for this SKU without Wi-Fi / Bluetooth.

Q: What control interfaces are onboard?
A: It includes RS485, 2-channel relay outputs, Ethernet, audio-related interfaces, and a touch display.

Q: What installation depth is recommended?
A: An 86-type back box depth of 33mm or more is recommended, and 35mm or more is preferred when using the Ethernet port.
