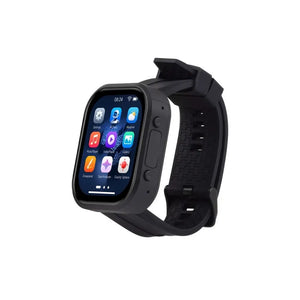

Waveshare ESP32-S3 2.06inch AMOLED Touch Watch 410×502 QSPI
Shipping within 72 hours
*Excluding pre-order items
- • EU & US Delivery: 10 working days
- • Other Countries: 15 working days
Need it faster? Contact us via phone or email for expedited delivery.
Waveshare ESP32-S3 2.06inch AMOLED Touch Watch 410×502 QSPI

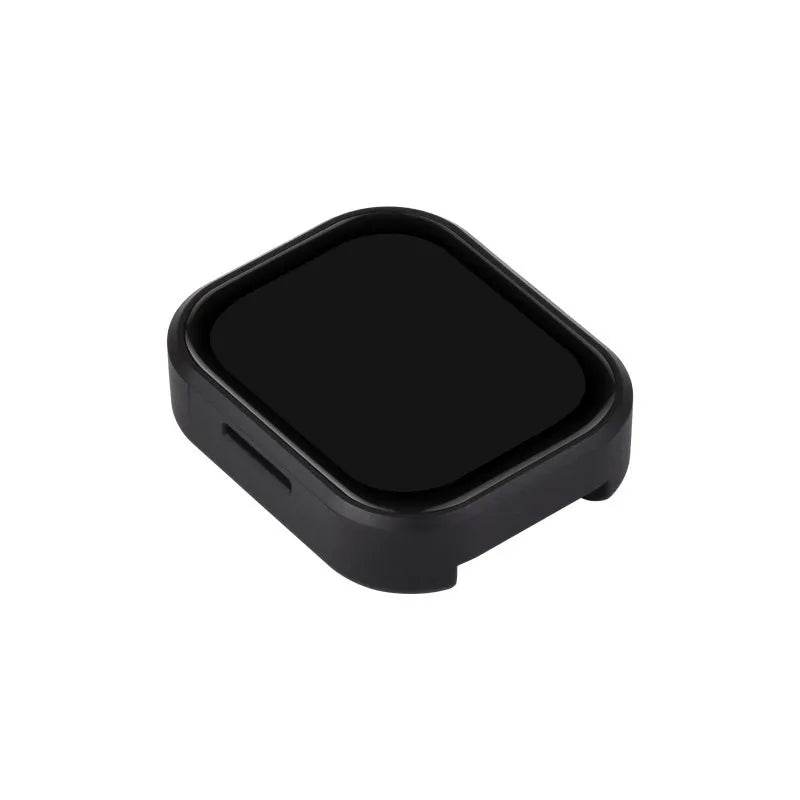

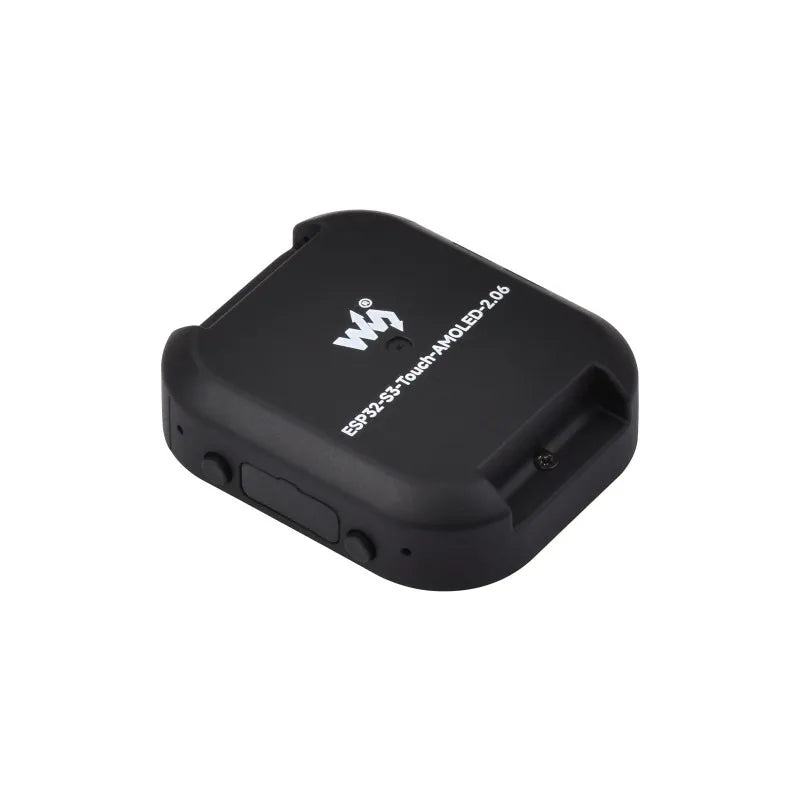

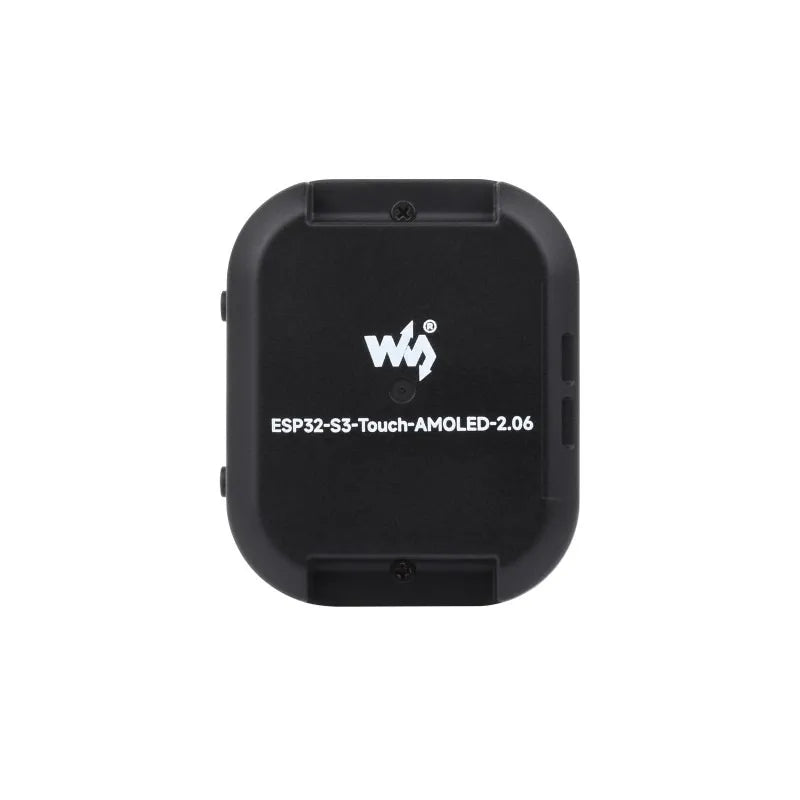

The ESP32-S3 2.06inch AMOLED Touch Watch Development Board is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-S3R8 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and more. It comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.

Version Options

ESP32-S3-Touch-AMOLED-2.06-EN
Standard version, without Lithium battery

ESP32-S3-Touch-AMOLED-2.06
Comes with a MX1.25 Lithium battery
(can be installed inside the case)
Features
The ESP32-S3-Touch-AMOLED-2.06 is a high-performance, wearable watch-style development board designed by Waveshare. Based on the ESP32-S3R8 microcontroller, it integrates a 2.06inch AMOLED capacitive touch display, 6-axis IMU, RTC chip, audio codec chip, power management IC, and so on. Comes with a custom-designed case with a smartwatch-like appearance, making it ideal for prototyping and functional verification of wearable applications.
- Equipped with ESP32-S3R8 Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency.
- Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna.
- Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 32MB Flash memory.
- Type-C connector, improving device compatibility, easier to use.
- Onboard 2.06inch AMOLED capacitive touch display for clear color picture display, 410 × 502 resolution, 16.7M color.
- Built-in CO5300 display driver and FT3168 capacitive touch chip, using QSPI and I2C communication respectively, effectively saving the IO resources.
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gesture, counting steps, etc.
- Onboard PCF85063 RTC chip, powered by Lithium battery through AXP2101 chip for uninterrupted power supply.
- Onboard PWR and BOOT programmable buttons for easy custom function development.
- Onboard 3.7V MX1.25 Lithium battery recharge/discharge header.
- Onboard reserved pads of 1 × I2C, 1 × UART and 1 × USB interfaces, for connecting peripherals and debugging.
- Onboard TF card slot for extended storage and fast data transfer, suitable for applications such as data recording and media playback, simplifying circuit design.
- Adopts AXP2101 IC for efficient power management, supports multiple voltage outputs, battery charging, battery management, and battery life optimization, etc.
- Adopts AMOLED screen, featuring advantages of high contrast, wide viewing angle, rich colors, fast response, thinner design, and low power consumption, etc.
AMOLED Parameters
| Display Panel | AMOLED | Display Size | 2.06 inch |
|---|---|---|---|
| Resolution | 410 × 502 pixels | Display Colors | 16.7M |
| Brightness | 600 cd/㎡ | Contrast Ratio | 100000:1 |
| Communication Interface | QSPI | Driver IC | CO5300 |
| Touch | Supported | Touch IC | FT3168 |
Small Size, Touch More Possibilities
Suitable For Various Smart Device Development, and Can Realize Human-Computer Interaction Function. Supports connecting to a battery for independent operation.

Adopts AMOLED Screen
The next-generation display technology, compared to traditional LCD displays, the AMOLED screen features precise light-control capability, representing more delicate colors, more picture details, and more vivid videos and images.

178° Wide Viewing Angle
Excellent Display Performance, 16.7M color, wide viewing angle.

Onboard Audio Codec
Onboard ES8311 audio codec chip and ES7210 echo cancellation circuit. Meet daily audio application scenarios.

Supports Offline Voice Recognition and AI Speech Interaction
Allows access to online large model platforms such as DeepSeek, Doubao, etc.

Supports ESP-IDF, Arduino
Comprehensive SDK, dev resources, tutorials to help you easily get started.

Wi-Fi and BLE 5 Support
ESP32-S3 integrates 2.4 GHz Wi-Fi (802.11 ax/b/g/n) with 40 MHz of bandwidth support. Its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh.

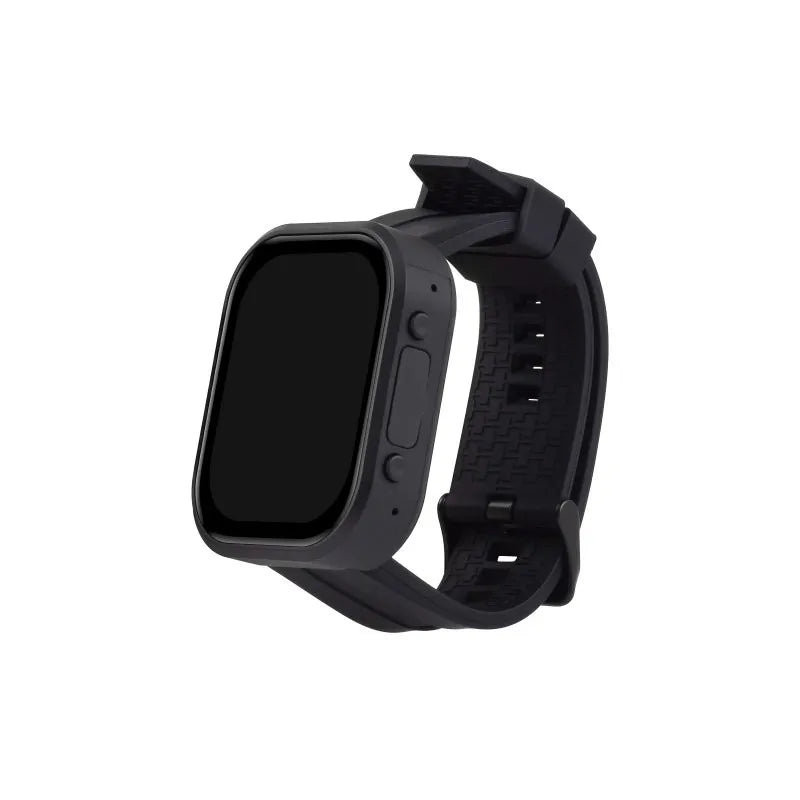

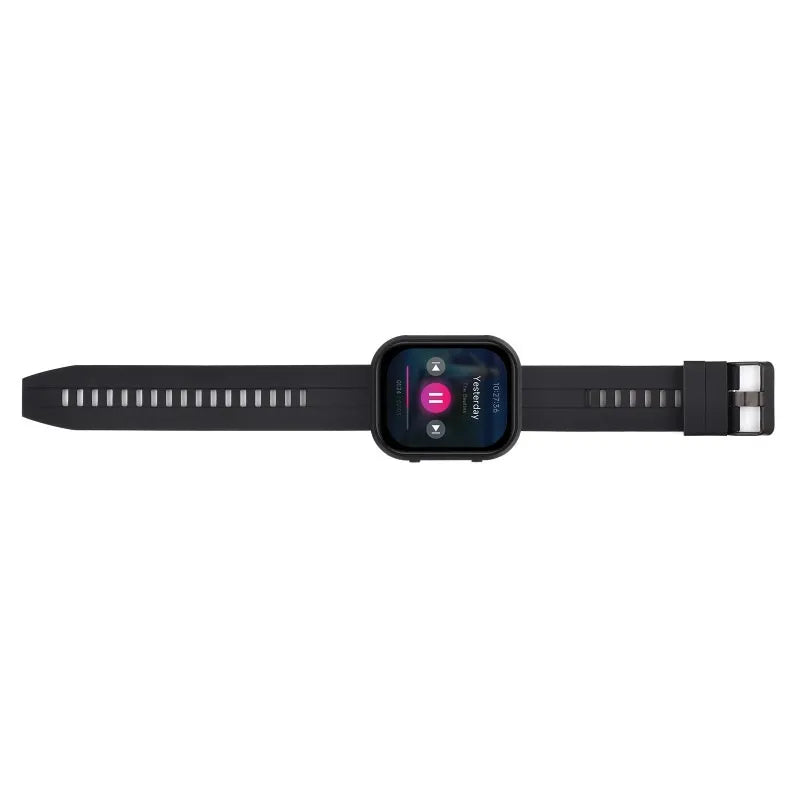

Wearable Design

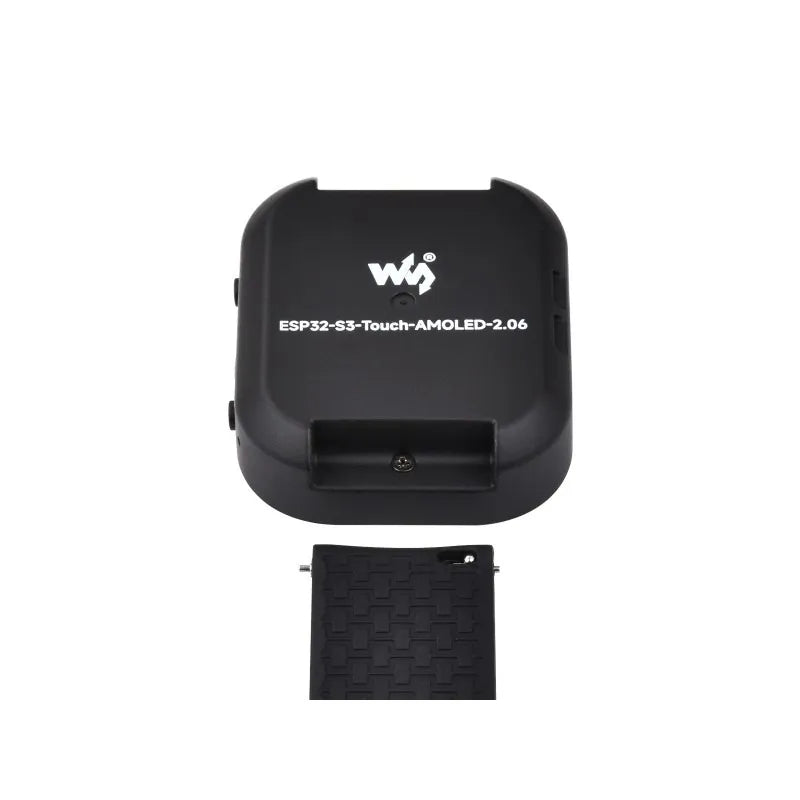

Detachable watch straps for easy replacement and convenient matching with different styles.

What's On Board

Pin Definition

Outline Dimensions
