Waveshare ESP32‑S3 8‑CH WiFi Relay Module w/ CAN, Dual‑Core, Isolation
Waveshare ESP32‑S3 8‑CH WiFi Relay Module w/ CAN, Dual‑Core, Isolation
Waveshare ESP32‑S3 8‑CH WiFi Relay Module w/ CAN, Dual‑Core, Isolation is a versatile industrial-grade control board designed for IoT, automation, and smart home applications. Built on the powerful ESP32‑S3 dual-core processor, it supports Wi-Fi, Bluetooth LE, and reliable Ethernet connectivity via the onboard W5500 chip. The module integrates 8 optically isolated digital inputs and 8 high-quality relay outputs (≤10A), enabling direct control of industrial devices and appliances. With its wide voltage input, isolation design, and optional PoE support, this board offers stable performance and flexible deployment in demanding environments.
Features
- Based on ESP32‑S3 microcontroller with Xtensa 32-bit LX7 dual-core processor, running at 240 MHz
- Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication with superior RF performance
- High-quality relay, contact rating ≤10A 250V AC / 30V DC
- Supports passive and active digital input with bi-directional optocoupler isolation; relay supports digital input linkage control
- Onboard isolated CAN interface for connecting to various CAN devices
- Pin header for expansion and connection to other devices
- USB Type-C port for power supply, firmware downloading, and debugging
- Wide voltage input (7~36V) via screw terminal, suitable for industrial applications
- RTC chip onboard for scheduled tasks
- W5500 Ethernet chip for extending 10/100Mbps network port through SPI interface
- Optional PoE version with built-in module, compliant with IEEE 802.3af standard
- Optocoupler isolation to prevent interference from external high-voltage circuits
- Digital isolation to protect against external signal interference
- Unibody power supply isolation, providing stable isolated voltage without extra supply
- TF card slot for external storage of images and files
- Built-in buzzer, RGB LED, and indicators for power and CAN TX/RX status monitoring
- Rail-mounted ABS case for easy installation and safe operation
Specifications
| Version | ESP32-S3-POE-ETH-8DI-8RO | ESP32-S3-POE-ETH-8DI-8RO-C | |
|---|---|---|---|
| Microcontroller | ESP32-S3 (Default module: ESP32-S3-WROOM-1U-N16R8, customizable for other modules) | ||
| Wireless communicatoin | 2.4GHz WiFi (802.11 b/g/n)、Bluetooth 5, BLE | ||
| USB | Connector | USB Type-C | |
| Power supply | 5V | ||
| Functions | Power supply, USB communication, firmware downloading, etc. | ||
| isolated comm interface | Interface | RS485 | CAN |
| Connector | Screw terminal | ||
| Direction control | Hardware automatic control | ||
| Protection | TVS diode, surge protection & ESD protection | ||
| Resistor | Onboard reserved 120R matching resistor, NC by default, enabled via jumper | ||
| Ethernet interface | PoE Ethernet port, supports IEEE 802.3af standard (for PoE port version only) | ||
| Digital input | Input channels | 8 | |
| Input voltage | 5V~36V | ||
| Input type | Passive input / active input (NPN or PNP type) | ||
| Isolation type | Bi-directional optocoupler isolation | ||
| Relay | Contact rating | ≤10A 250V AC / 30V DC | |
| Relay channels | 8 | ||
| Contact form | 1NO 1NC | ||
| Isolation | Optocoupler isolation | ||
| LED indicators | RGB | RGB colorful LED, supports programmable control of display color | |
| PWR | Red power indicator, lights up when there is USB connection and voltage is detected | ||
| TXD | Green TX indicator, lights up when the RS485/CAN port sends data | ||
| RXD | Blue RX indicator, lights up when the device port sends data back | ||
| power supply Screw terminal | Voltage range | 7~36V | |
| Appearance | Enclosure | Rail-mount ABS protective case | |
| Dimensions | 175 × 90 × 40 (mm) | ||
Part List
ESP32-S3-ETH-8DI-8RO-C
- ESP32-S3-ETH-8DI-8RO-C × 1
- 2.4G 4DB SMA antenna × 1
- Screwdriver × 1
ESP32-S3-POE-ETH-8DI-8RO-C
- ESP32-S3-POE-ETH-8DI-8RO-C × 1
- 2.4G 4DB SMA antenna × 1
- Screwdriver × 1
Based on ESP32-S3, Designed for AIoT market
Equipped with Xtensa 32-bit LX7 dual-core processor, capable of running at 240 MHz, with Powerful AI Computing Performance and Security Encryption Mechanism; Integrated 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication
Onboard multiple isolation protection circuits
Multiple protections, more safe and reliable
supports CAN and Bluetooth / WIFi remote control
Onboard 8-ch relays and 8-ch digital inputs
Contact rating of the onboard relay up to 10A 250V AC / 30V DC
Directly controlling 220VAC home appliances, or devices below 30V DC
Digital input
Supports passive (dry contact) and active (wet contact) digital input, with bi-directional optocoupler isolation
Supports Arduino IDE
Comprehensive SDK, Dev Resources, And Tutorials To Help You Easily Get Started
Optional for PoE function
Built-in PoE module, providing both network connection and power supply in one cable
Note: the PoE function is only available on ESP32-S3-POE-ETH-8DI-8RO-C version, and the switch shown in the picture is NOT included.
Application scenarios
Application Examples
Provides Multiple Networking Demos With Waveshare.Cloud, Using The Lightweight
MQTT Protocol To Achieve Data Visualization Service
Support Batch Customization
Support software and hardware customization
Including hardware interface, LOGO, label, case and web page, etc.

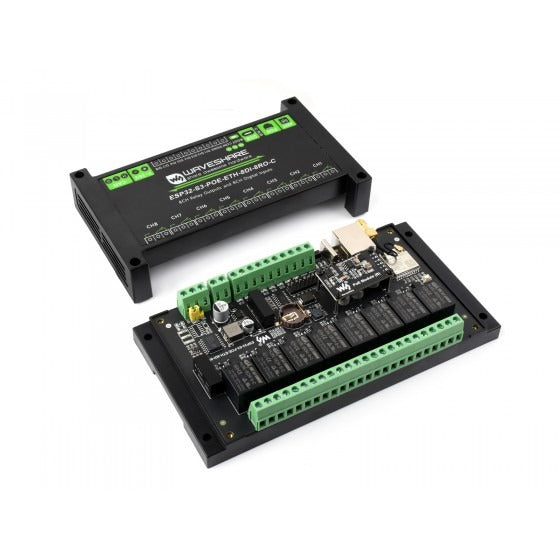

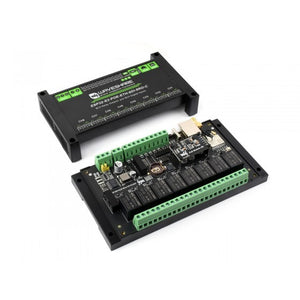

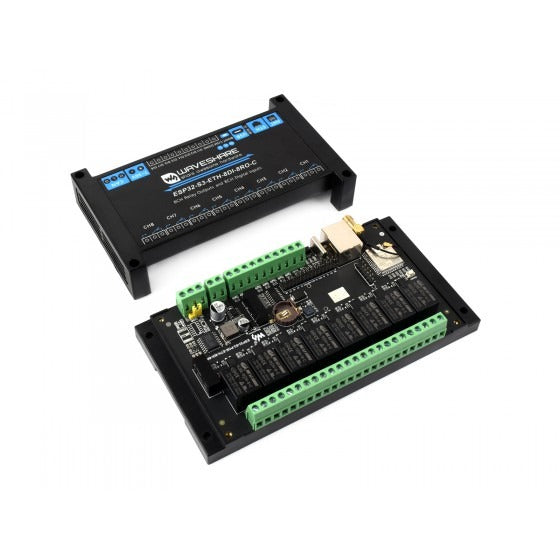

What's On Board
-
ESP32-S3-WROOM-1U-N16R8
Adopts ESP32-S3 series chip with Xtensa 32-bit LX7 dual-core processor, built in 16MB Flash and 8MB PSRAM -
8-channel quality relays
contact rating per channel: ≤ 10A 250V AC or ≤ 10A 30V DC -
Optocoupler isolation
prevents interference from external high-voltage circuit connected to the relay - RESET button
-
PoE header
supports connecting to PoE module for PoE capability (for PoE port version only) - BOOT button
- Power IC
-
Digital isolation
prevents interference from external signal -
Power supply isolation
provides stable isolated voltage, needs no extra power supply for the isolated terminal - Bi-directional optocoupler isolation
-
RTC battery holder
1220 size (12mm diameter*2mm thickness), supports only rechargeable 3V~3.3V Batt. - Buzzer
- Digital input screw terminals
-
Pin header
for connecting other devices -
LED indicators
PWR: power indicator
RXD: CAN RX indicator
TXD: CAN TX indicator -
USB Type-C connector
for module power supply, firmware downloading and USB communication -
WS2812 RGB LED
controllable via GPIO38 - Ethernet port
-
External antenna connector
SMA female connector, for WiFi and Bluetooth wireless communication -
Power supply screw terminal
supports DC 7~36V wide voltage input -
CAN comm interface
for connecting to external CAN devices -
CAN matching resistor jumper
onboard reserved 120R matching resistor, enabled via jumper - Relay screw terminals
-
Onboard TVS (Transient Voltage Suppressor)
can effectively suppress surge voltage and transient spike voltage in the circuit - CAN conversion chip
-
MP1605GTF-Z
DC-DC power module -
PCF85063ATL
RTC chip, can achieve some scheduled tasks
-
TCA9554PWR
GPIO expansion chip -
W5500
for extending 10/100Mbps network port through SPI interface -
TF card slot
supports external TF card storage for images and files

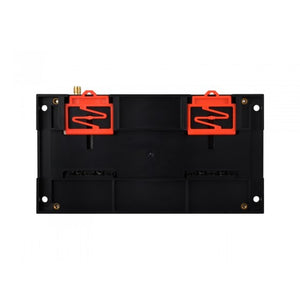

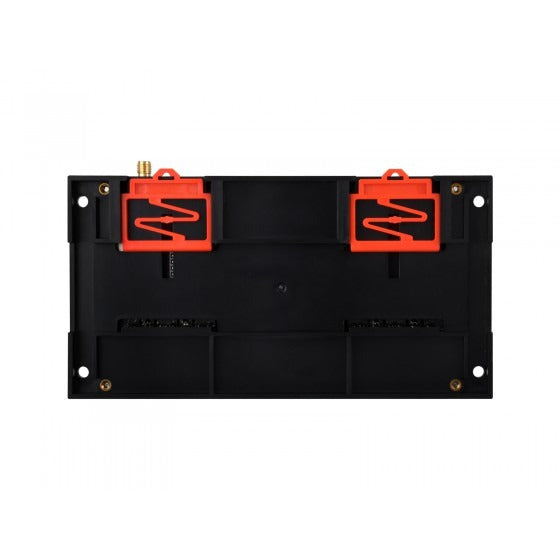

Enclosure Design
ABS Protection Enclosure With 35mm Rail-Mount Support, Easy To Install, Safe To Use
Outline dimensions

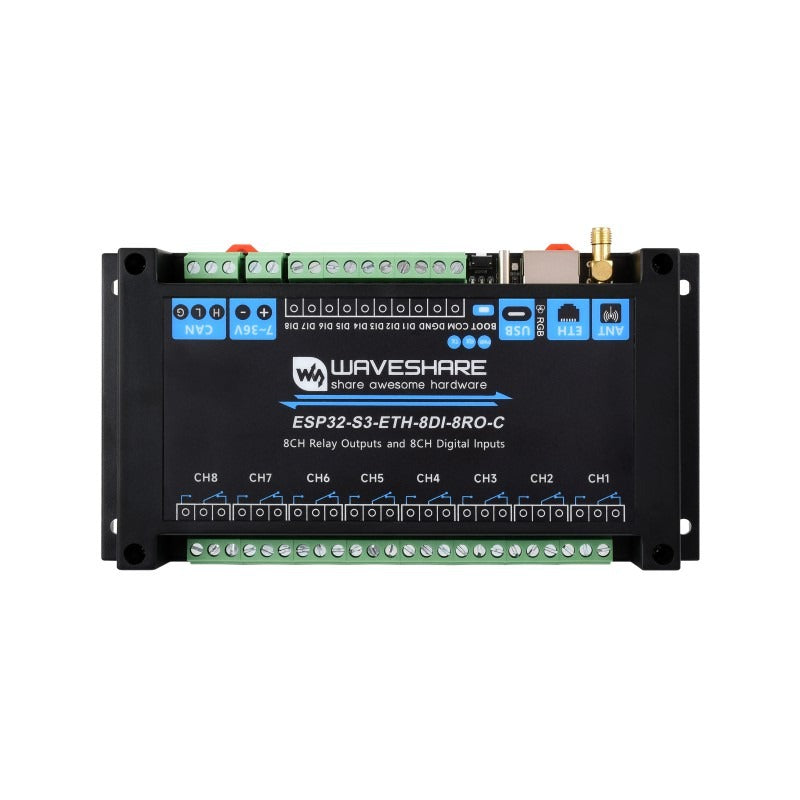

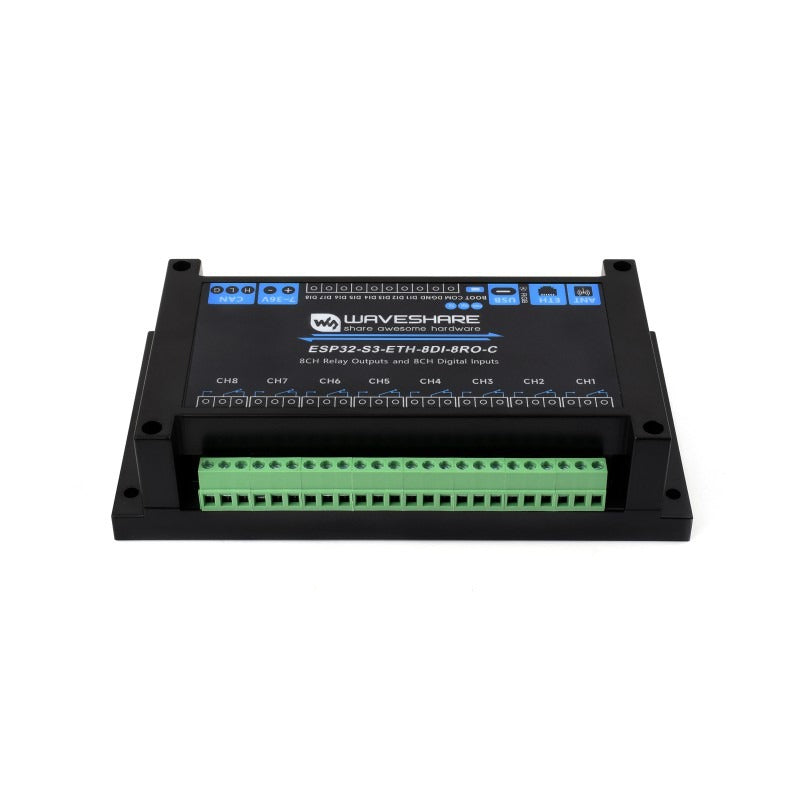

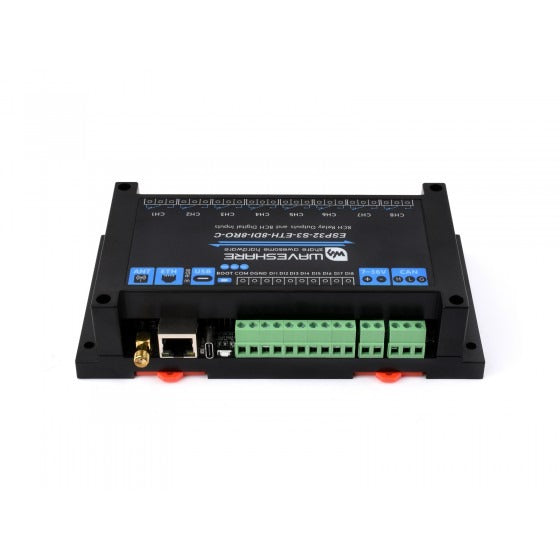

Common network port

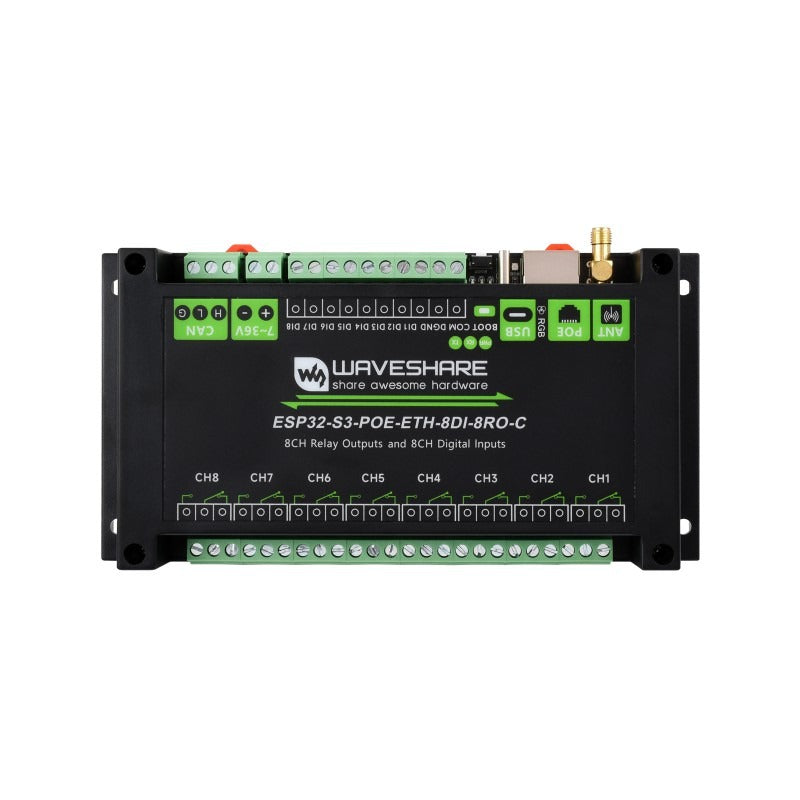

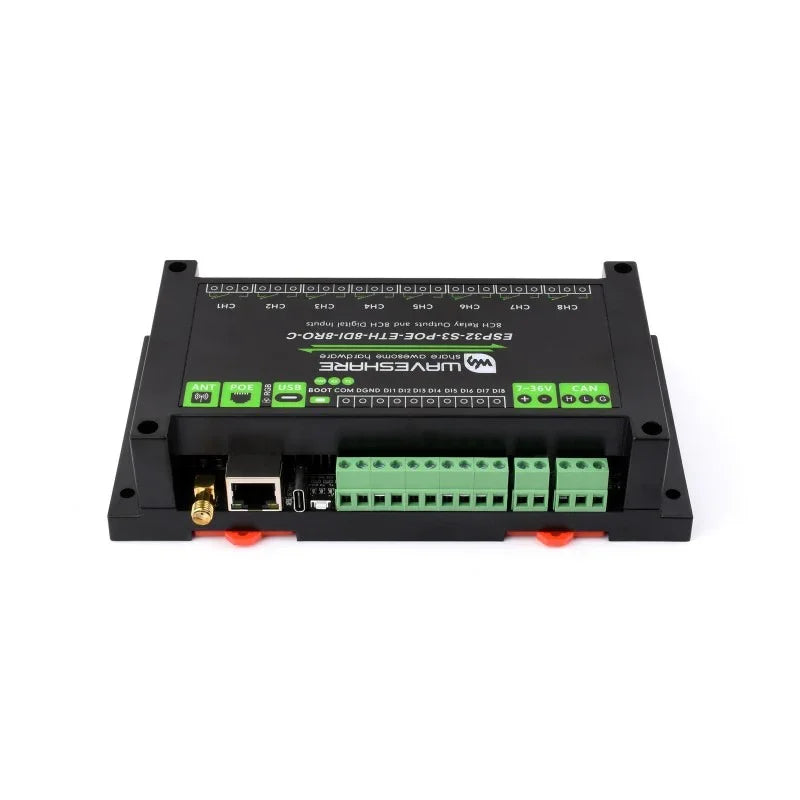

PoE network port
