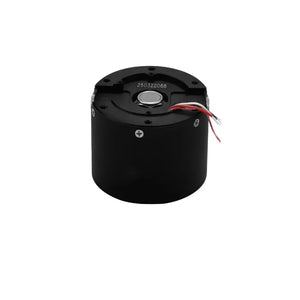

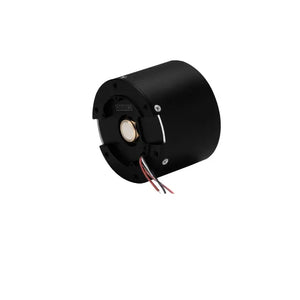

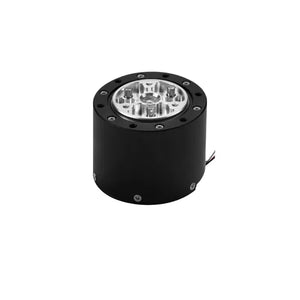

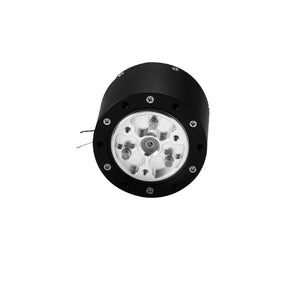

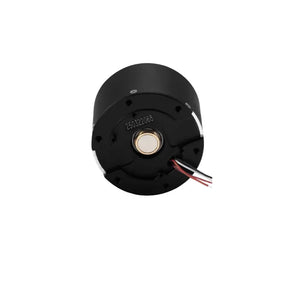

SteadyWin GIM4310-36 Robotic Joint Motor – 36:1 Gear Ratio

SteadyWin GIM4310-36 Robotic Joint Motor – 36:1 Gear Ratio

🤖 SteadyWin GIM4310-36 – High-Torque Precision in a Compact Form

The SteadyWin GIM4310-36 Robotic Joint Motor is purpose-built for robotic joints, quadruped locomotion, articulated arms, and automation systems that demand robust torque, fluid motion, and industrial-grade reliability.

⚙️ Featuring a 36:1 planetary gear ratio, it delivers exceptional torque output while maintaining a space-efficient footprint—making it ideal for tight mechanical layouts and lightweight robotic designs.

Whether you're building a dynamic limb or a precision actuator, the GIM4310-36 combines power and finesse to elevate your robotics platform.



🔑 Key Features

  • ⚙️ 36:1 Planetary Gear Ratio – High torque with smooth, precise motion control

  • 💪 Powerful Output – Nominal torque up to 7.38 N·m, stall torque up to 25.43 N·m

  • 🔋 Wide Voltage Range – Operates from 12V to 48V for flexible integration

  • 📡 Dual Communication Protocols – Supports CAN & RS485 for versatile connectivity

  • 🛡️ IP54 Protection – Dust and splash resistant for demanding environments

  • 🔧 Customizable Brake Option – Optional brake for enhanced safety and control

  • 🔇 Low Noise – Operates under 60 dB for quiet performance

  • 🌡️ Wide Temperature Range – Reliable from -20°C to +80°C



📊 Technical Specifications

Parameter Value
Nominal Voltage 24V
Voltage Range 12–48V
Nominal Torque 6.24–7.38 N·m
Stall Torque 20.16–25.43 N·m
Nominal Speed (after reduction) 40–41 RPM
Max Speed (after reduction) 63–64 RPM
Nominal Current 1.83–2.3 A
Stall Current 6.8–10.57 A
Gear Type Planetary (Steel)
Gear Backlash 15 arcmin
Motor Weight 300–310 g
Size Ø55 × 40 mm (without driver)
Max Axial Load 125 N
Max Radial Load 500 N
Protection Grade IP54
Communication CAN & RS485
Encoder Resolution 14-bit



🚀 Applications

  • 🤖 Robotic Arms – Smooth, precise joint control

  • 🐾 Quadruped Robots – High torque for stable walking and running

  • 🏭 Automation Systems – Reliable performance in industrial environments

  • 🎯 Gimbals & Positioning Systems – Accurate, low-noise movement
