SeeedStudio Wio-E5-LE Dev Kit STM32WLE5JC, ARM Cortex-M4 and SX126x-2

SeeedStudio Wio-E5-LE Dev Kit STM32WLE5JC, ARM Cortex-M4 and SX126x

39,45 €

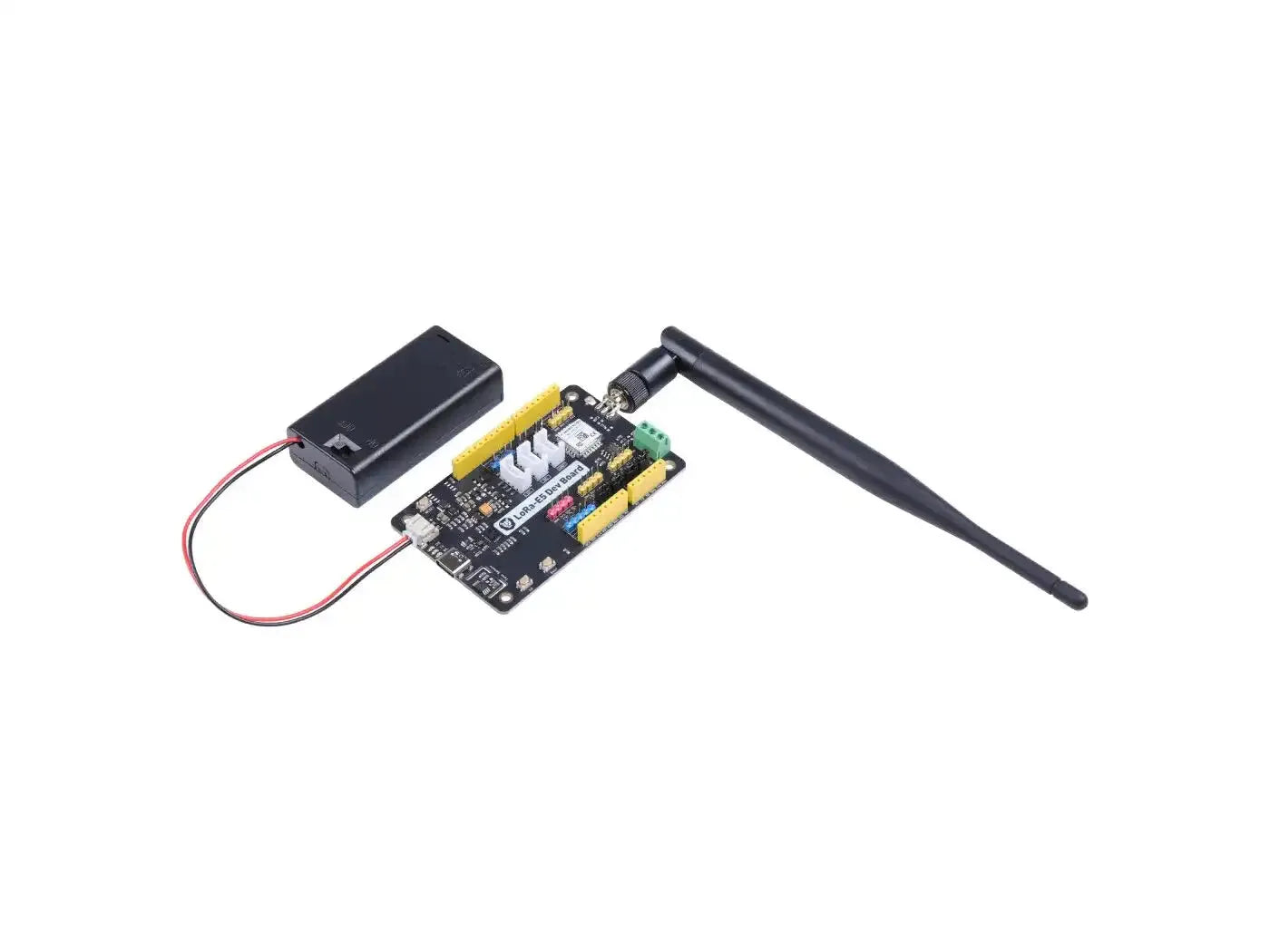

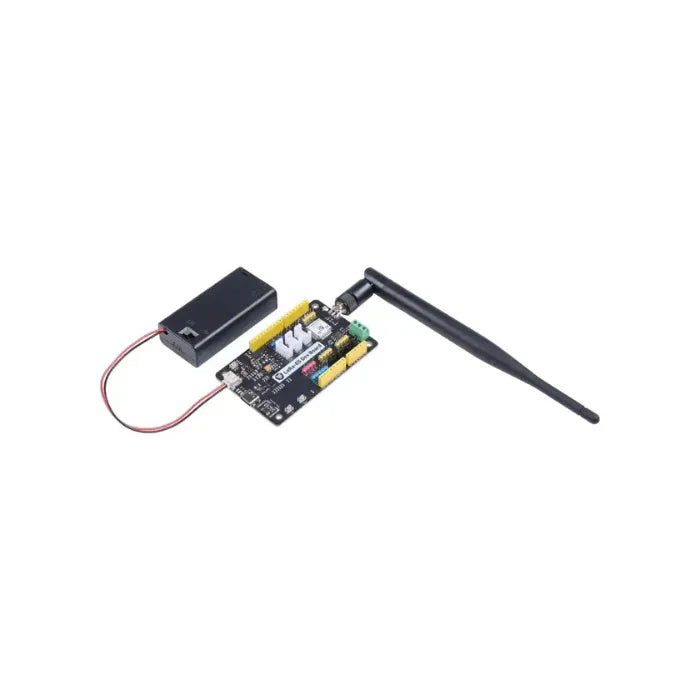

📡 Wio-E5-LE Dev Kit is a compact and easy-to-use LoRaWAN development board based on the STM32WLE5JC wireless module. Designed for low-power long-range communication, it’s ideal for IoT prototyping, industrial sensor integration, and smart agriculture 🌱📶.

🧠 The board provides rich interface options including RS485, Grove connectors, and fully exposed GPIOs, enabling rapid testing and flexible hardware integration. With built-in AT command firmware, it simplifies LoRaWAN application development across global frequency plans 🌍⚙️.

🔋 Supporting both (G)FSK and LoRa modulation, and featuring ultra-low sleep current (as low as 2.1μA in WOR mode), the Wio-E5-LE Dev Kit is perfect for battery-powered sensor nodes and remote environmental monitoring 📊🌾.



✨ Features

  • ⚡ High Performance: TXOP = 14dBm @ 868/915MHz; sensitivity down to -136.5dBm (SF12, 125KHz BW)
  • 📡 Long Range Capability: 158dB link budget for reliable LoRaWAN communication
  • 🌍 Global Wireless Support: Embedded long-range protocol, AT command firmware, supports worldwide frequency plans
  • 🔧 Developer Friendly: Fully exposed GPIOs, RS485, Grove*3 (I2C/UART), RESET & BOOT buttons for easy prototyping
  • ✅ Certified: FCC & CE certified for industrial-grade deployments



📐 Specifications

📏 Size Wio-E5-LE Dev Board: 85.6×54 mm, Package: 200×130×50 mm
🔋 Voltage - Supply 3–5 V (Battery) / 5 V (USB Type-C)
⚡ Voltage - Output EN 3V3 / 5V
📶 Power - Output Up to +20.8 dBm at 3.3 V
🌍 Frequency Bands EU868 / US915 / AU915 / AS923 / KR920 / IN865
📡 Protocol LoRaWAN
🎯 Sensitivity -116.5 dBm ~ -136 dBm
🔌 Interfaces USB Type-C / JST2.0 / Grove*3 (I2C*2 / UART*1) / RS485 / SMA-K / IPEX
📡 Modulation LoRa, (G)FSK, (G)MSK, BPSK
🌡️ Working Temperature -40 °C ~ +85 °C
💤 Sleep Current As low as 2.1 μA (WOR mode)

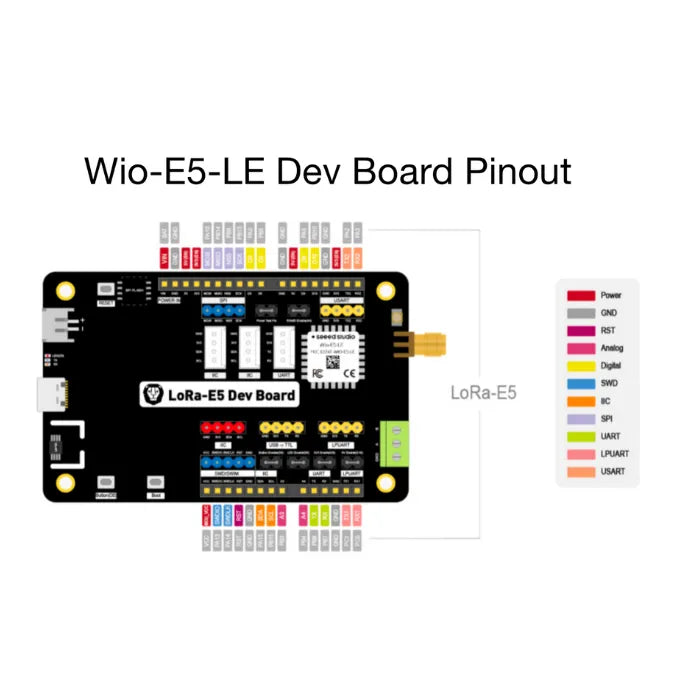

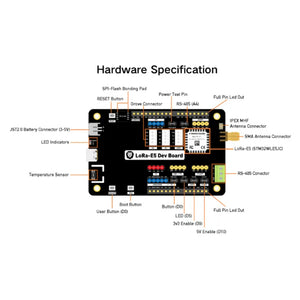

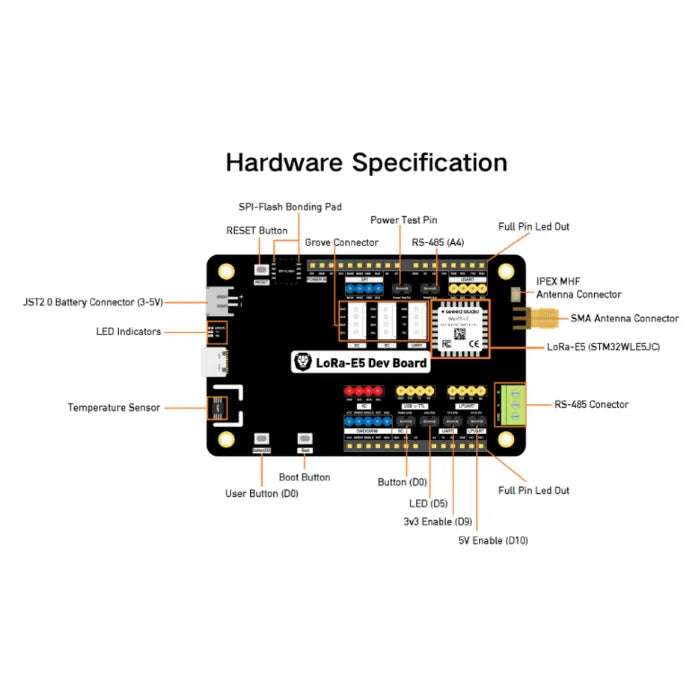

🧩 Hardware Overview



📚 Documents



🌍 Applications

Want to explore real-world use cases of the Wio-E5 series? Check out these LoRaWAN deployments:

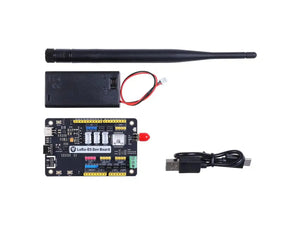

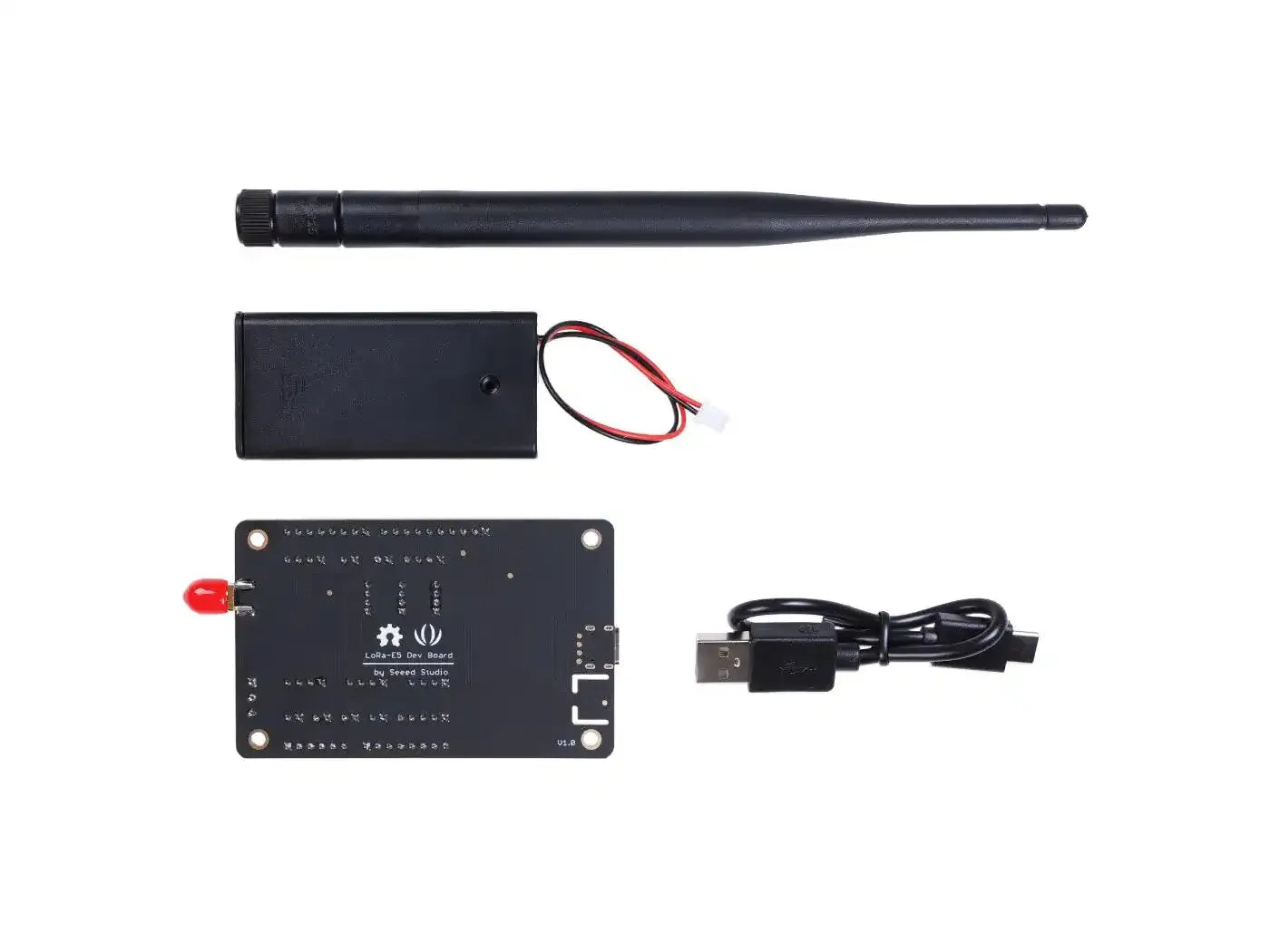

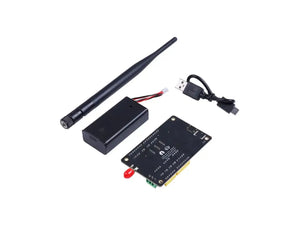

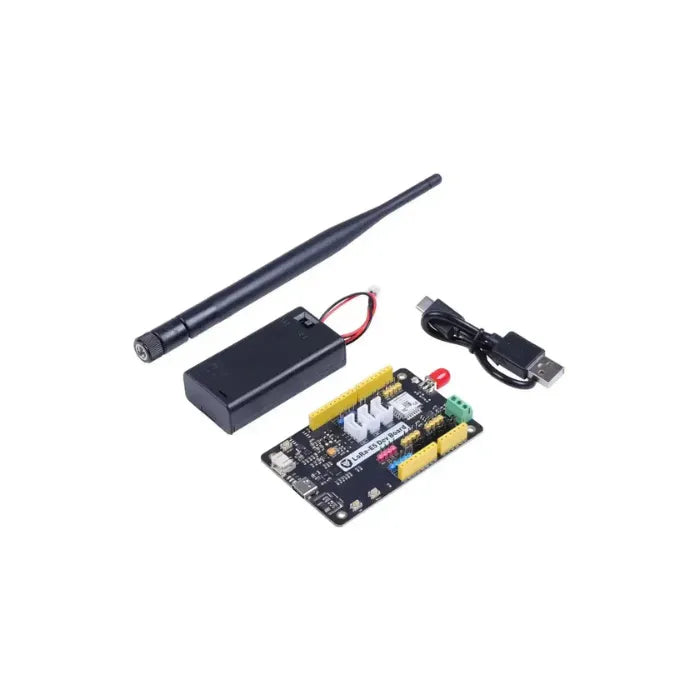

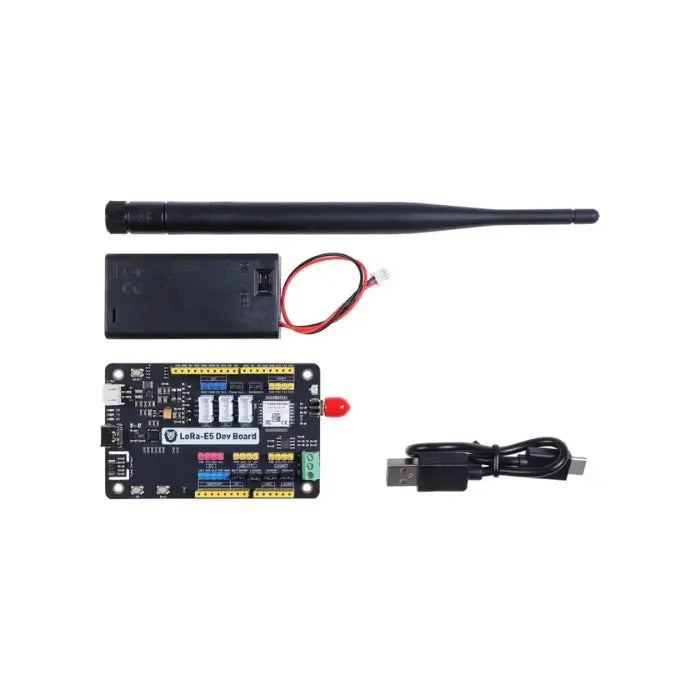

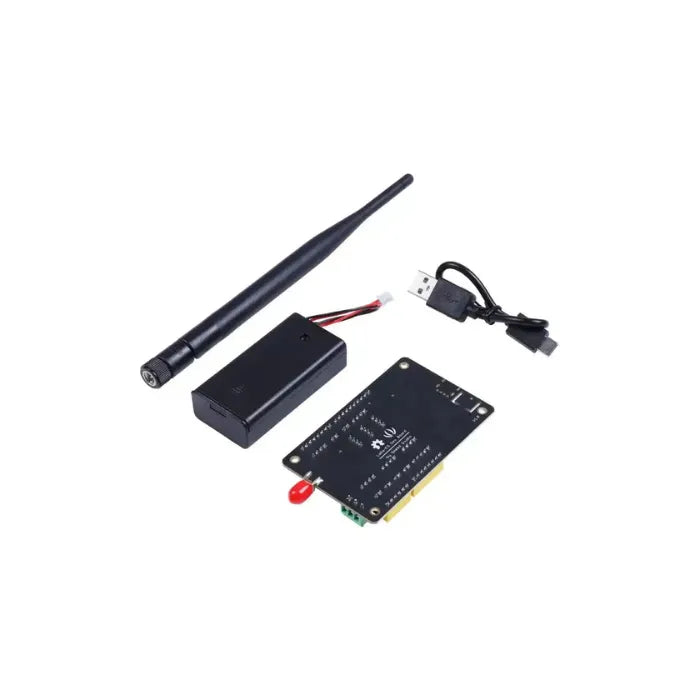

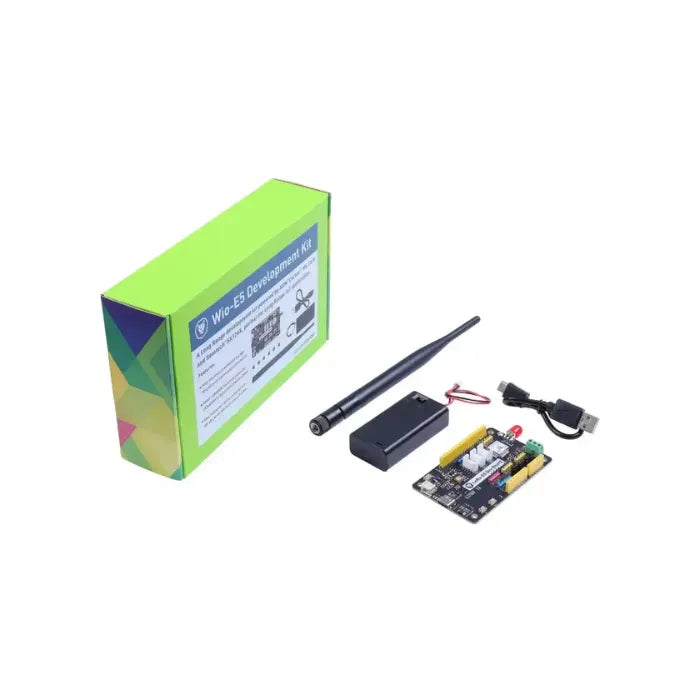

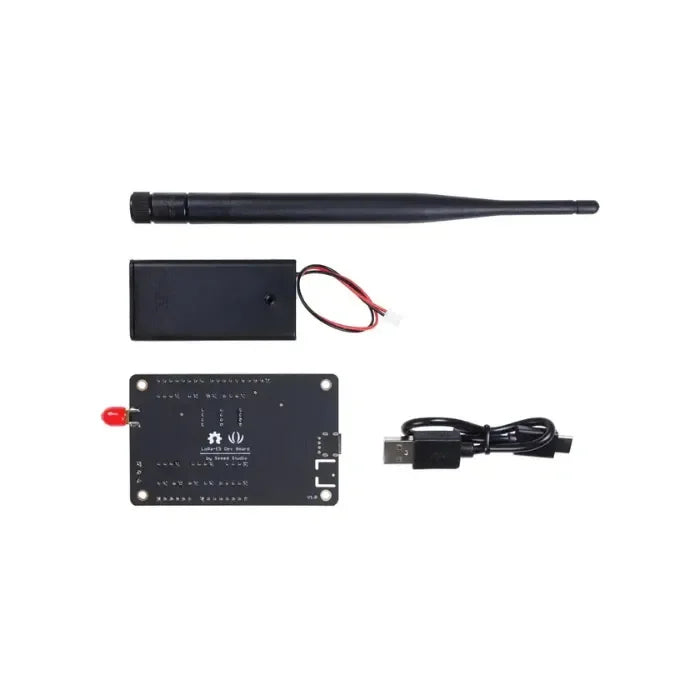

📦 Part List

🧩 Wio-E5-LE Dev Board ×1
📡 Antenna (EU868 / US915) ×1
🔌 USB Type-C Cable (20 cm) ×1
🔋 2×AA 3V Battery Holder ×1
