Seeed Studio XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic

Seeed Studio XIAO ESP32S3 & Wio-SX1262 Kit for Meshtastic

€11,85

This thumb-sized LoRa development kit—featuring the XIAO ESP32S3 and Wio-SX1262 module—is an ideal entry point for Meshtastic mesh networking and LoRa/LoRaWAN applications. With built-in power management, support for Wi-Fi, BLE, and LoRa, and expansion via I²C, UART, and GPIO, it’s fully compatible with Arduino-based Meshtastic nodes. As a compact, single-channel LoRaWAN module, it offers excellent performance for long-range, low-power, low-data-rate communication. Perfect for Meshtastic sensor deployments, it supports more than 30 connected nodes depending on payload and interval settings.

Seeed provides 3 applications for this XIAO ESP32S3 & Wio-SX1262 Kit.

  • Using Meshtastic for network communication
  • Configuring as LoRaWAN node
  • Configuring as LoRaWAN gateway




Features

⚙️ Meshtastic-ready out of the box：Pre-flashed with firmware—just plug in and it’s ready to connect 🔌✨

📡 Outstanding RF performance：Supports LoRa (862–930MHz) + 2.4GHz Wi-Fi + BLE 5.0 for dual wireless links. Achieves 2–5km LoRa range and 100m+ Wi-Fi/BLE when paired with U.FL antenna 🚀

📏 Tiny but mighty：Only 21×18mm, inherits the XIAO form factor—perfect for wearables and space-limited projects 👕🔩

🧠 Powerful MCU onboard：Runs on ESP32S3 (dual-core @240MHz), supports Arduino & MicroPython, plus multiple I/O ports for developers 🛠️🐍

🔋 Smart power design：Type-C port + lithium battery charging and management built-in for on-the-go power solutions 🔌🔋


Specification

Feature Details
ESP32S3 ESP32-S3R8, Xtensa LX7 dual-core, 32-bit processor running up to 240 MHz
LoRa Based on Semtech SX1262, supports 862-930MHz
BLE Bluetooth 5.0, Bluetooth mesh
Wi-Fi Complete 2.4GHz Wi-Fi subsystem
Interface (ESP32S3) 1x UART, 1x IIC, 1x IIS, 1x SPI(connect to SX1262),11x GPIO(PWM), 9x ADC, 1x User LED, 1x Charge LED, 1x Reset button, 1x Boot button
Interface (Wio-SX1262) 1x User button, 1x SPI(connect to ESP32S3)
Power Input voltage (Type-C): 5V
Input voltage (BAT): 4.2V
Charging battery current: 100mA
Working Temperature -40°C ~ 65°C
Dimensions 21 x 17.8mm

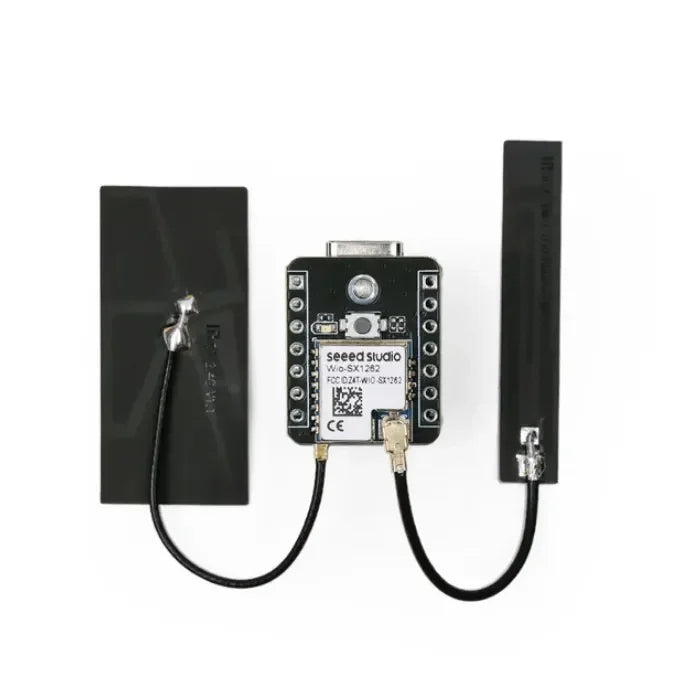

Hardware Preparation

Part List

Item Quantity
XIAO ESP32S3 x1
Wio-SX1262 extension board x1
Wi-Fi antenna x1
LoRa antenna x1

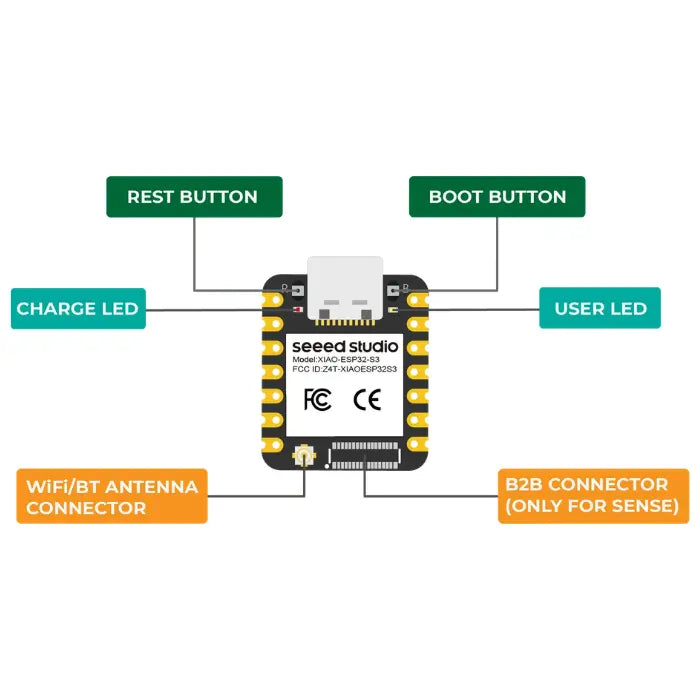

Hardware Overview



Application

🔌 Meshtastic Node & Router A super-compact node that can function as a portable device or a fixed router to extend your Meshtastic mesh coverage 📡🌐

🌿 LoRa/LoRaWAN Sensor A beginner-friendly mini LoRaWAN sensor, perfect for exploring wireless sensor networks. Works seamlessly with XIAO extension boards and Grove sensors for fast prototyping 🧪🔧

🚪 LoRaWAN Single-Channel Gateway An ultra-affordable single-channel gateway, ideal for connecting multiple LoRaWAN devices and forwarding data to The Things Network, ChirpStack, or other LNS platforms 🌍📶


Documents

Wio-SX1262 for XIAO 3D file
Schematic Diagram Wio-SX1262 for XIAO
Wio-SX1262 Module Datasheet
Casing 3D file


📦 Unboxing & First Impressions

Opening the kit was a pleasant surprise—the board is remarkably compact! Everything comes in a no-frills plastic pouch, and inside you’ll find:

  • 🧠 XIAO ESP32S3

  • 📡 Wio-SX1262 LoRa extension board

  • 📶 Wi-Fi antenna

  • 📻 LoRa antenna

🛠️ Setup Notes & Tips

  • Antenna confusion is real: The skinny antenna is for LoRa, the wider one is for Wi-Fi. Take care when attaching them—U.FL connectors are tiny and fragile.

  • Board connection trick: At first glance, it looks like soldering is needed, but nope. The Wio-SX1262 snaps cleanly onto the XIAO using a proprietary connector. Just remember to peel off the protective tape underneath before snapping it in. That adhesive keeps things from wiggling loose over time.

  • BYO USB-C: No Type-C cable is included, so be sure you’ve got one that supports data + power.

Once you’ve got those pieces in place, setup is smooth sailing.


🔥 Flashing Meshtastic Firmware onto the XIAO ESP32S3

Getting your node Meshtastic-ready only takes a few minutes:

  1. Plug It In: Connect the XIAO to your computer with a USB-C cable that supports data transfer.

  2. Launch the Flasher: Open the Meshtastic Flasher.

  3. Select Device: Pick “Seeed XIAO ESP32-S3” from the list.

  4. Choose Firmware: Pick a version (latest stable is ideal) and click Flash.

  5. Review → Continue: Skim the changelog, then proceed.

  6. Full Erase + Install: For best results, select Full Erase and Install, then click Update.

  7. Done! Your node will reboot, fresh and ready.


📲 Pairing with the Meshtastic App

Pairing the device is just as seamless:

  • Get the App: Download from the App Store (iOS) or Google Play (Android).

  • Find Your Node: Head to the Bluetooth section and wait for your new node to appear. It’ll show a Node ID and other details.

  • Enter Pairing Code: Use 123456 by default—or check the terminal log after flashing if it’s different.

  • Select Region: Pick the right LoRa region (like EU868, US915, etc). The device will restart with your settings locked in.
