Seeed Studio XIAO ePaper DIY Kit(ESP32-S3) - EE05

19,95 €

Description

Seeed Studio XIAO ePaper DIY Kit (ESP32-S3) - EE05 is a low-power ePaper display expansion board built around the XIAO ESP32-S3 Plus ecosystem. This Seeed Studio XIAO ePaper DIY Kit EE05 supports a wide range of 24-pin SPI ePaper displays, adds a JST 2.0 battery connector, a hardware power slide switch, and side-mounted buttons, making it a strong fit for portable dashboards, smart labels, and battery-powered display projects.

The XIAO ePaper DIY Kit EE05 also supports SenseCraft HMI for no-code UI design and deployment, while still working with Arduino and PlatformIO. If you need a flexible display board for custom low-power signage, smart home dashboards, and portable information boards, this Seeed Studio XIAO ePaper DIY Kit EE05 is built for exactly that workflow.

Seeed Studio XIAO ePaper DIY Kit EE05 overview

Features

  • Seeed Studio XIAO ePaper DIY Kit EE05 powered by the XIAO ESP32-S3 Plus platform.
  • 24-pin SPI FPC connector for a wide range of compatible ePaper displays.
  • JST 2.0mm battery connector for portable and low-power ePaper applications.
  • Hardware power slide switch for simpler power management and energy savings.
  • 1 reset button and 3 user buttons mounted on the side of the board.
  • SenseCraft HMI support for no-code UI design and deployment.
  • Arduino and PlatformIO development support for custom firmware workflows.
  • Extension IO for integrating sensors and other peripherals into low-power display projects.

Specifications

Brand Seeed Studio
Model XIAO ePaper DIY Kit (ESP32-S3) - EE05
SKU Seeed-E26042001
Core Platform XIAO ESP32-S3 Plus
ePaper Connector SPI FPC 24-Pin 0.5mm
Battery Connector JST 2.0mm
Switch Hardware power slide switch
Power Supply 3.7V Li-Battery / USB Type-C
Buttons 1 × Reset button, 3 × User buttons
Development SenseCraft HMI, Arduino, PlatformIO
Use Case Low-power smart display and ePaper DIY projects

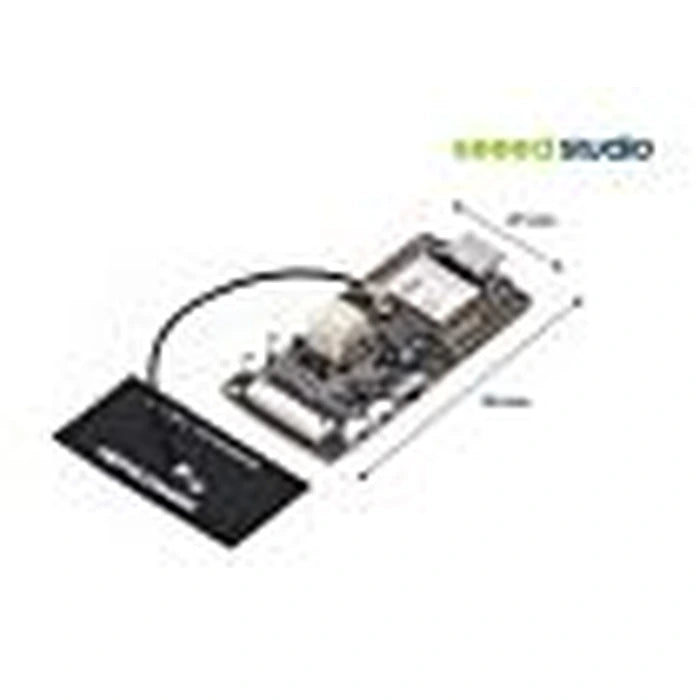

Seeed Studio XIAO ePaper DIY Kit EE05 hardware overview

Applications

Seeed Studio XIAO ePaper DIY Kit EE05 is designed for low-power display applications where refresh speed matters less than battery life, readability, and clean UI presentation. Because it supports multiple 24-pin ePaper display sizes and works with SenseCraft HMI, it is especially useful for custom dashboards and display-driven embedded projects.

  • Smart home dashboards for weather, schedule, reminders, and device status.
  • Energy monitoring displays that show meter data or household power usage.
  • Security alert panels for motion, door, or sensor event notifications.
  • Electronic labels and low-power signage for homes, labs, offices, or shops.
  • Portable information boards powered by battery and updated through custom firmware.
  • Wi-Fi digital photo frame and custom ePaper content display projects.

Product List

  • XIAO ePaper Display Board EE05 × 1

Other Content

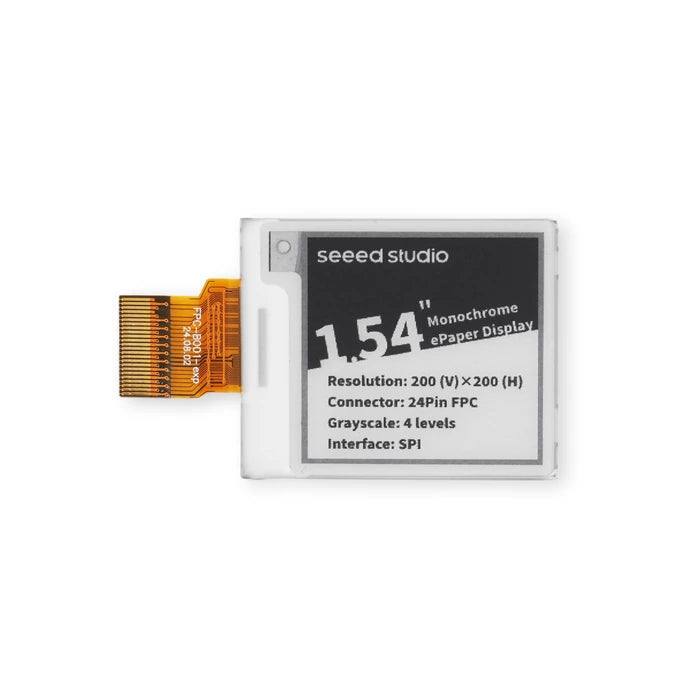

The XIAO ePaper DIY Kit EE05 supports a broad range of compatible 24-pin SPI ePaper displays. Based on the official wiki, supported sizes include 1.54-inch, 2.13-inch flexible monochrome, 2.13-inch quadruple color, 2.9-inch monochrome, 4.2-inch monochrome, 4.26-inch monochrome, 5.83-inch monochrome, and 7.5-inch monochrome panels.

For software setup, the official workflow uses the Seeed GFX / Seeed Arduino LCD library and configures the correct board-screen combo before upload. The official guide also notes that PSRAM must be enabled when using the example workflow with XIAO ESP32S3.

Seeed Studio XIAO ePaper DIY Kit EE05 software setup image

Seeed Studio XIAO ePaper DIY Kit EE05 example configuration

Seeed Studio XIAO ePaper DIY Kit EE05 ePaper output example

Resources

FAQ

What controller platform does Seeed Studio XIAO ePaper DIY Kit EE05 use?
This board is built for the XIAO ESP32-S3 Plus ecosystem and is designed as an ePaper display expansion solution around that platform.

What types of ePaper displays are supported?
It supports a range of 24-pin SPI ePaper displays, including multiple monochrome and color panel sizes listed in the official EE05 wiki.

Can I run this board from a battery?
Yes. The board provides a JST 2.0mm battery connector and a hardware power switch, which makes it suitable for portable low-power ePaper projects.

Does EE05 support no-code dashboard building?
Yes. The XIAO ePaper DIY Kit EE05 supports SenseCraft HMI for no-code UI design and deployment, while also supporting Arduino and PlatformIO for code-based development.
