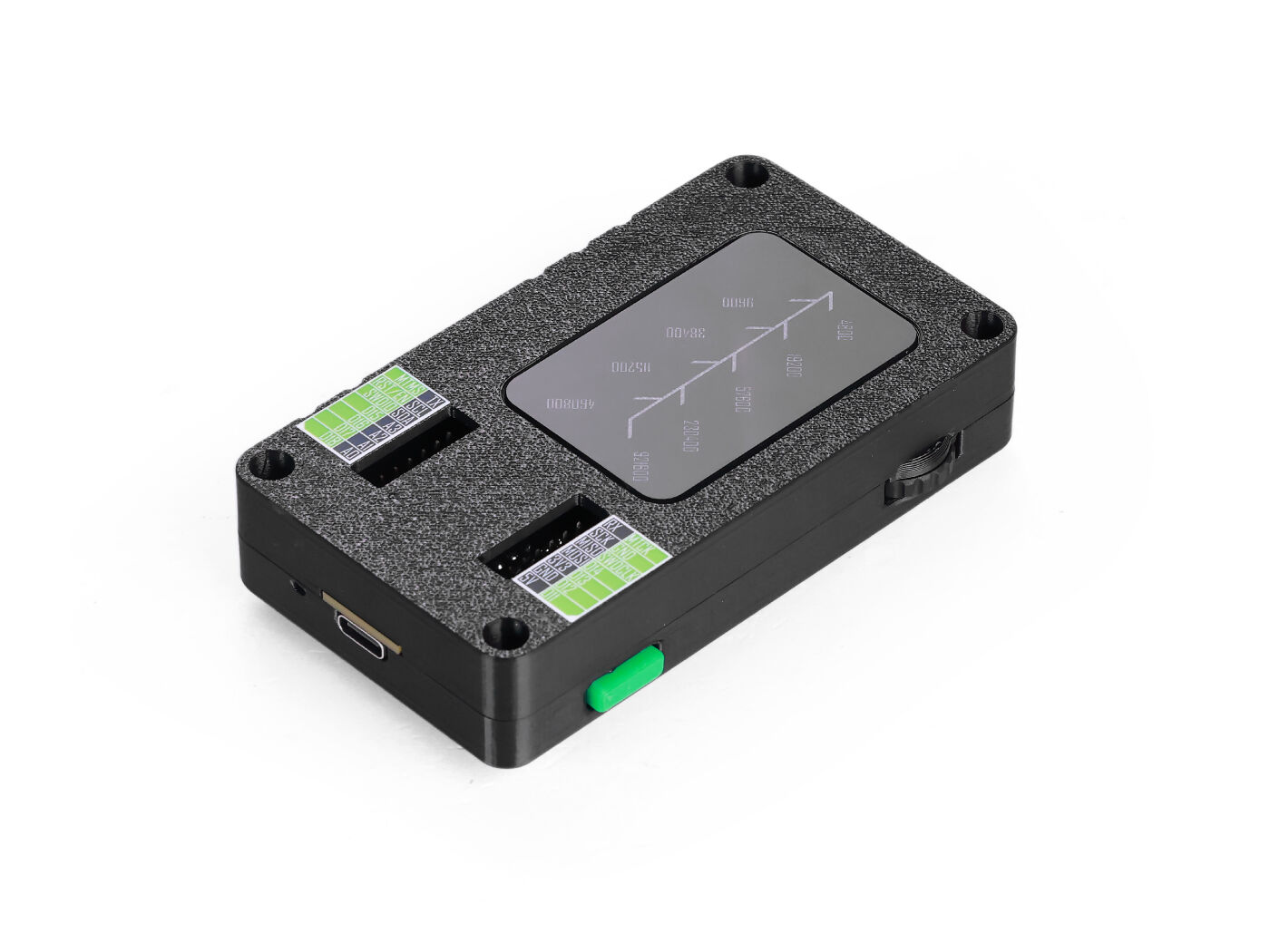

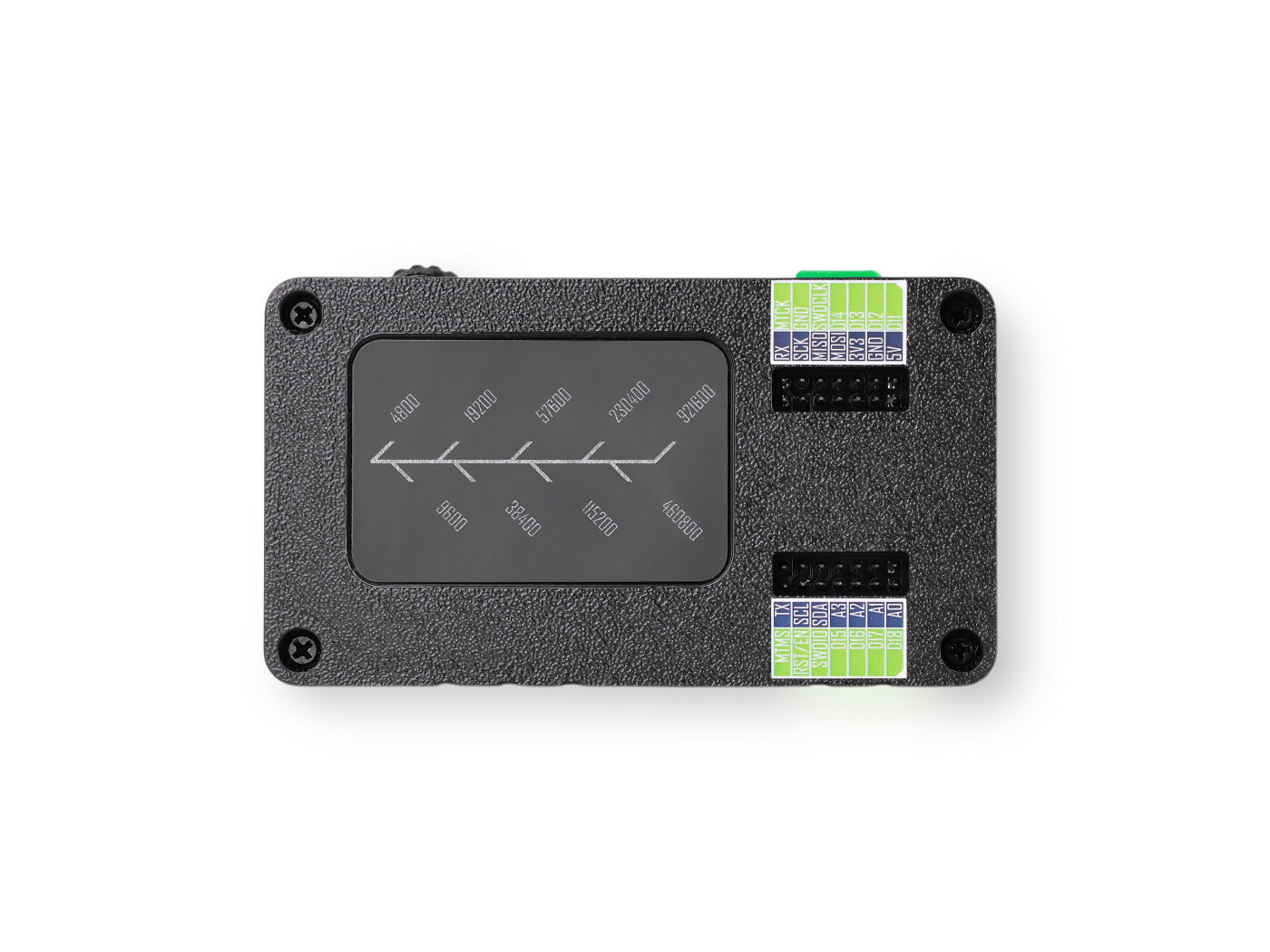

Seeed Studio XIAO Debug Mate

Seeed Studio XIAO Debug Mate

37,35 €

🔧 Seeed Studio XIAO Debug Mate is an open‑source ⚡ ESP32‑S3 multi‑tool that makes embedded system debugging easier with 👀 visual feedback.

🖥️ This all‑in‑one device comes with a standalone 2.01" TFT LCD display, 💡 LED status matrix, and native Seeed Studio XIAO support.

✨ It delivers essential debugging functions:

  • 🛠️ DAPLink chip‑level debugging

  • 🔌 Built‑in serial monitoring with UART passthrough

  • 🔋 Accurate power consumption measurement

⚙️ With its plug‑and‑play design, you can say goodbye to messy wiring and enjoy streamlined development 🚀.

🔧 3‑in‑1 Professional Development Tool

🖥️ DAPLink‑Compatible SWD Interface for professional chip‑level debugging: ⚡ Powered by ESP32‑S3 with full OpenOCD/PyOCD support, delivering lab‑grade debugging capabilities.

🎯 Set breakpoints, 🐞 step through code, 🧠 inspect memory, and 🔍 access low‑level hardware operations with precision.

🔗 The integrated DAPLink firmware enables seamless SWD communication between your 💻 PC and target XIAO microcontroller, bringing 🧪 lab‑quality debugging tools right to your desktop.

🔍 Intelligent Serial Monitor & UART Passthrough

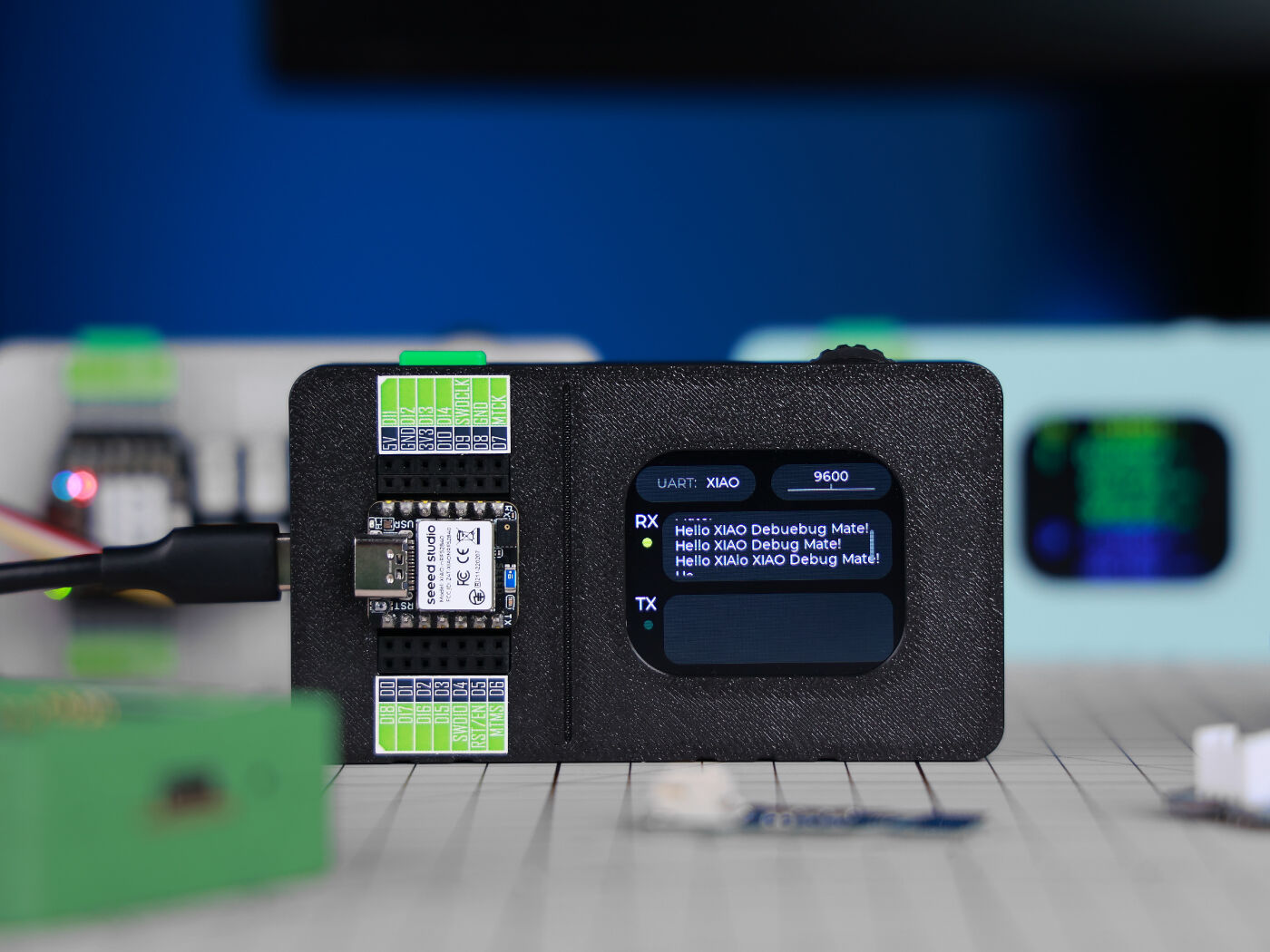

📡 Monitor communications between your XIAO and the XIAO Debug Mate, or between the Debug Mate and external UART devices like 🛠️ Arduino, 🍓 Raspberry Pi, and 🌱 Grove sensors.

🖥️ View real‑time serial data directly on the onboard display for instant feedback ⚡, or 🔄 redirect signals to your 💻 PC for detailed analysis.

✨ This intelligent switching eliminates the need for multiple tools, giving you complete visibility into all serial communications through one streamlined interface 🚀.

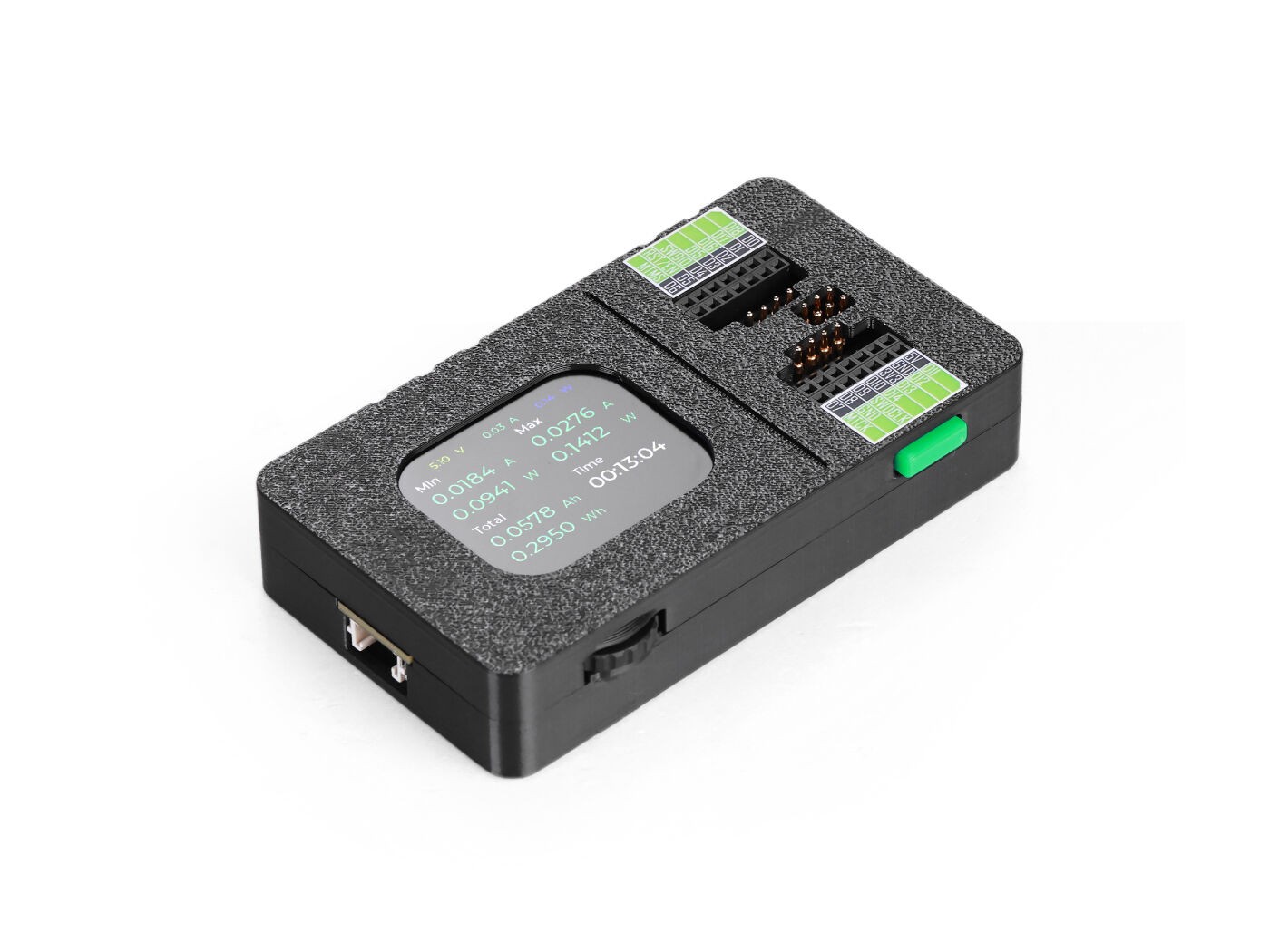

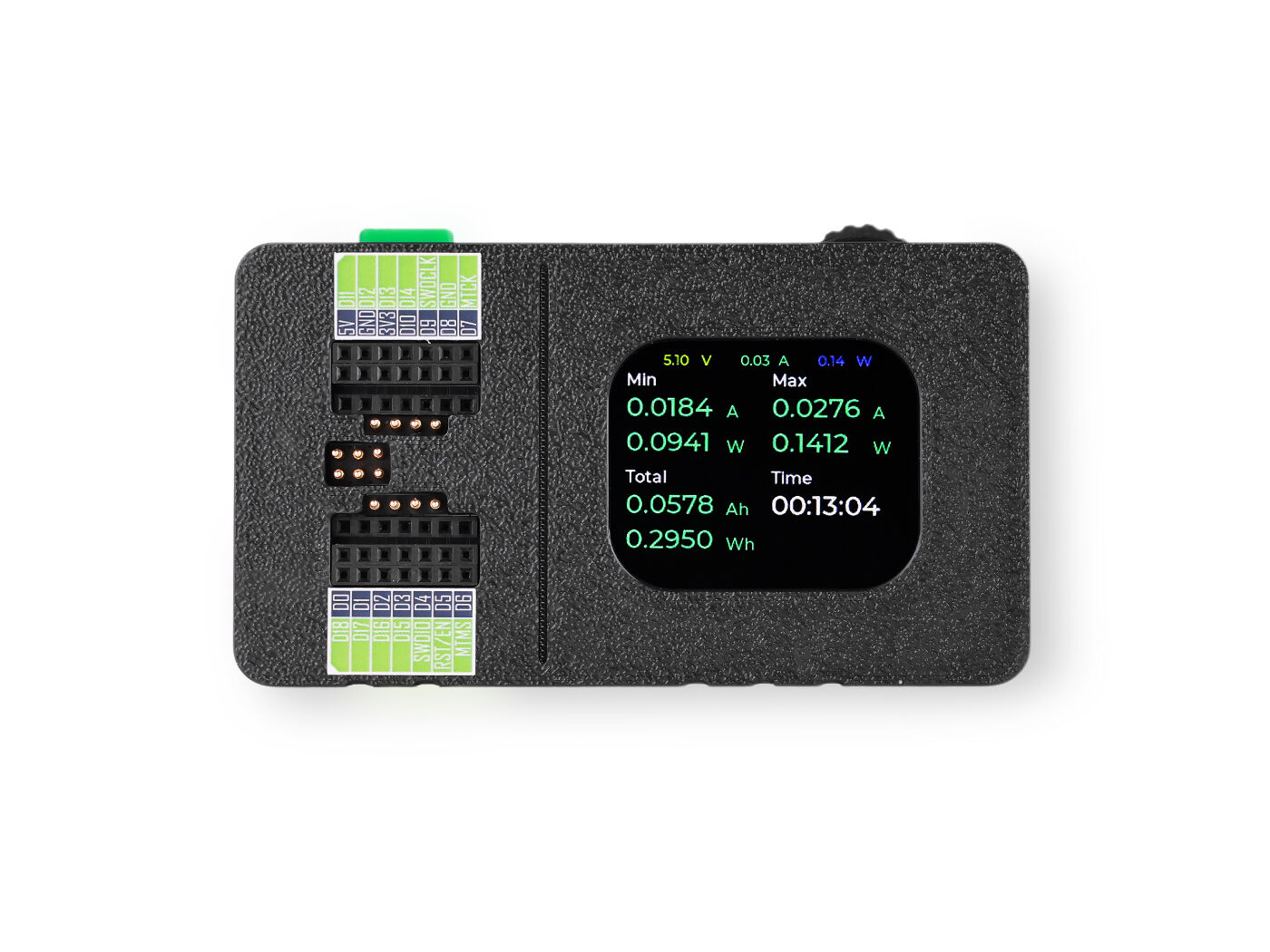

🔋 Precision Power Profiling

📉 Track power consumption down to μA levels with ⚡ three specialized measurement interfaces. 🔎 Monitor voltage/current readings, ultra‑low‑power states, and consumption patterns with ⛰️ peak/valley identification. 🧪 Each unit is factory‑calibrated for maximum accuracy (±10% @ 1–10 μA), ensuring 🔐 confident battery life validation and 💡 energy optimization. 🛠️ Works seamlessly with both standalone XIAO boards and complete XIAO‑based projects — ready to use straight out of the box 📦.

🌐 Open‑Source Platform Designed for XIAO with Universal Compatibility

🔌 Purpose‑built for the Seeed Studio XIAO ecosystem, offering direct plug‑and‑play connection support — any pre‑soldered XIAO board connects instantly without tedious wiring.

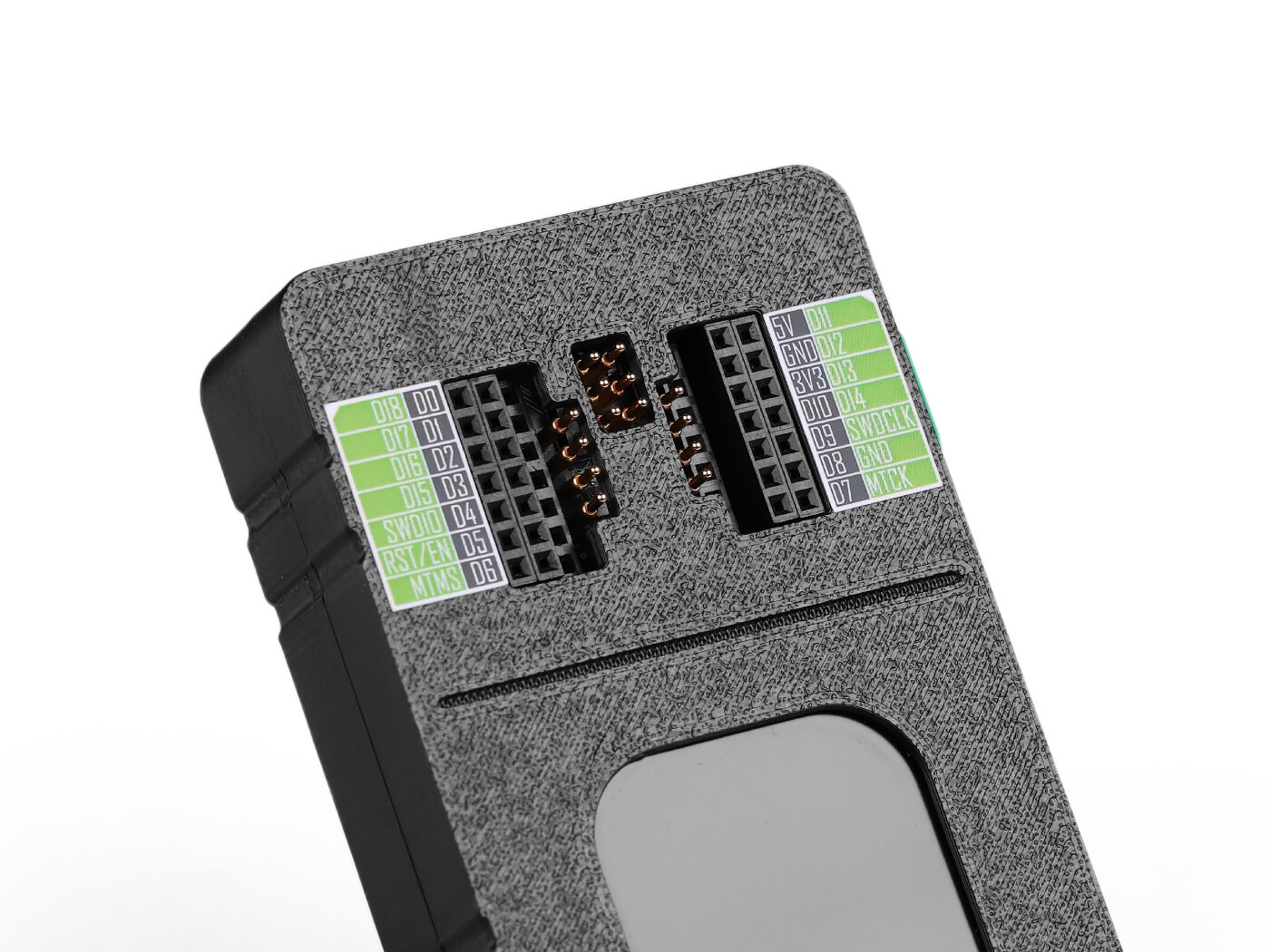

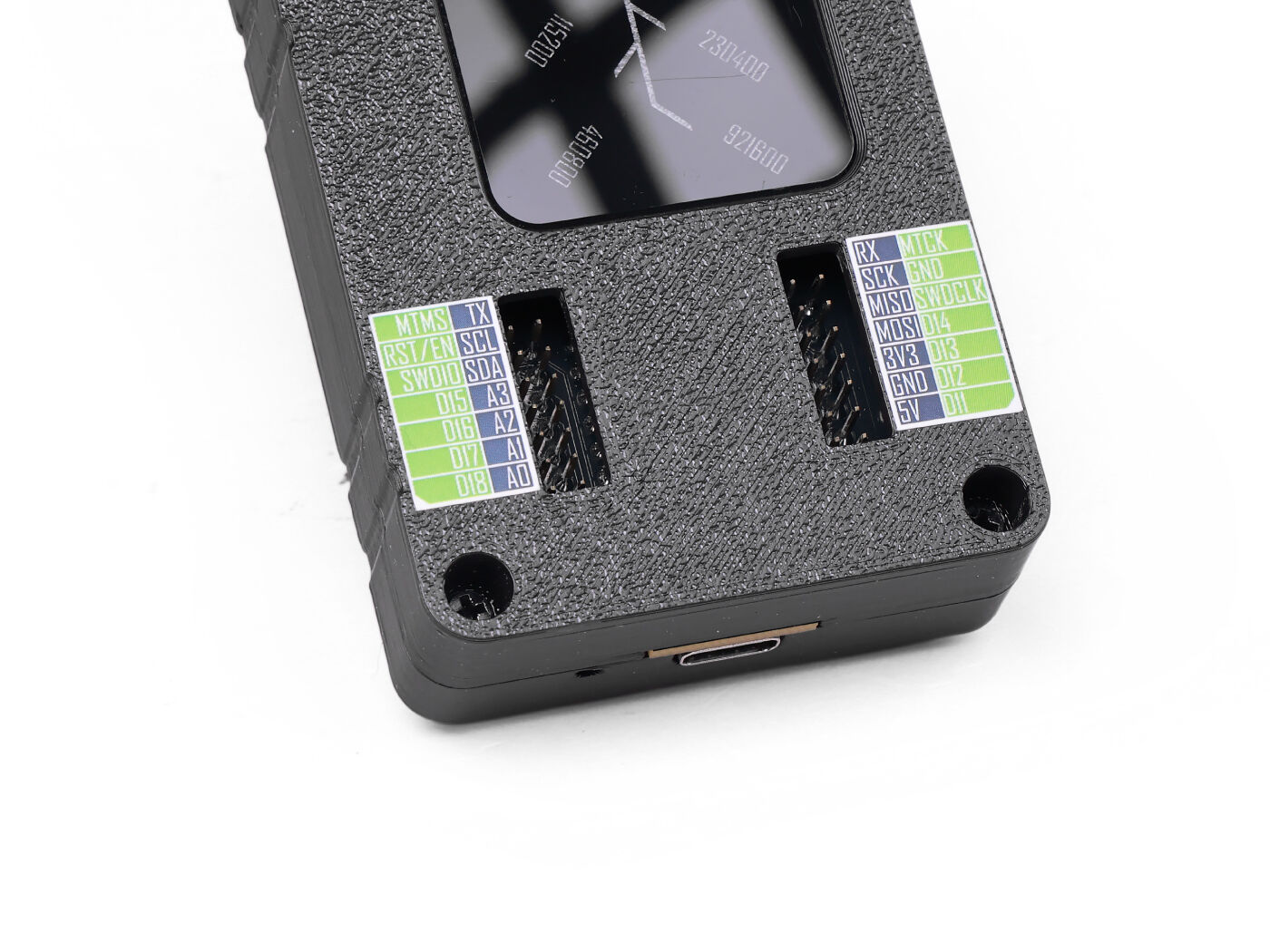

📐 Thoughtfully designed pin headers and sockets transform the device into a specialized expansion breadboard for XIAO development, providing abundant expansion options backed by ⚡ robust power management and 📡 UART monitoring.

🛠️ While optimized for XIAO, the open‑source design extends compatibility to any ARM Cortex‑M microcontroller target via standard SWD and UART interfaces.

🖥️ Complete with a crisp 2.01" TFT display (240×296px) and ✨ 36‑LED matrix, this versatile platform serves as both a professional debugging tool and a 🎨 creative foundation for embedded projects.

Specification

Parameter

Description

Processor

Espressif ESP32-S3

Power Input

USB-C 5V/1A

Display

2.01 inch TFT LCD with 240 x 296 resolution

LED

36-LED Matrix for Status Indication (Default: Serial Baud Rate)

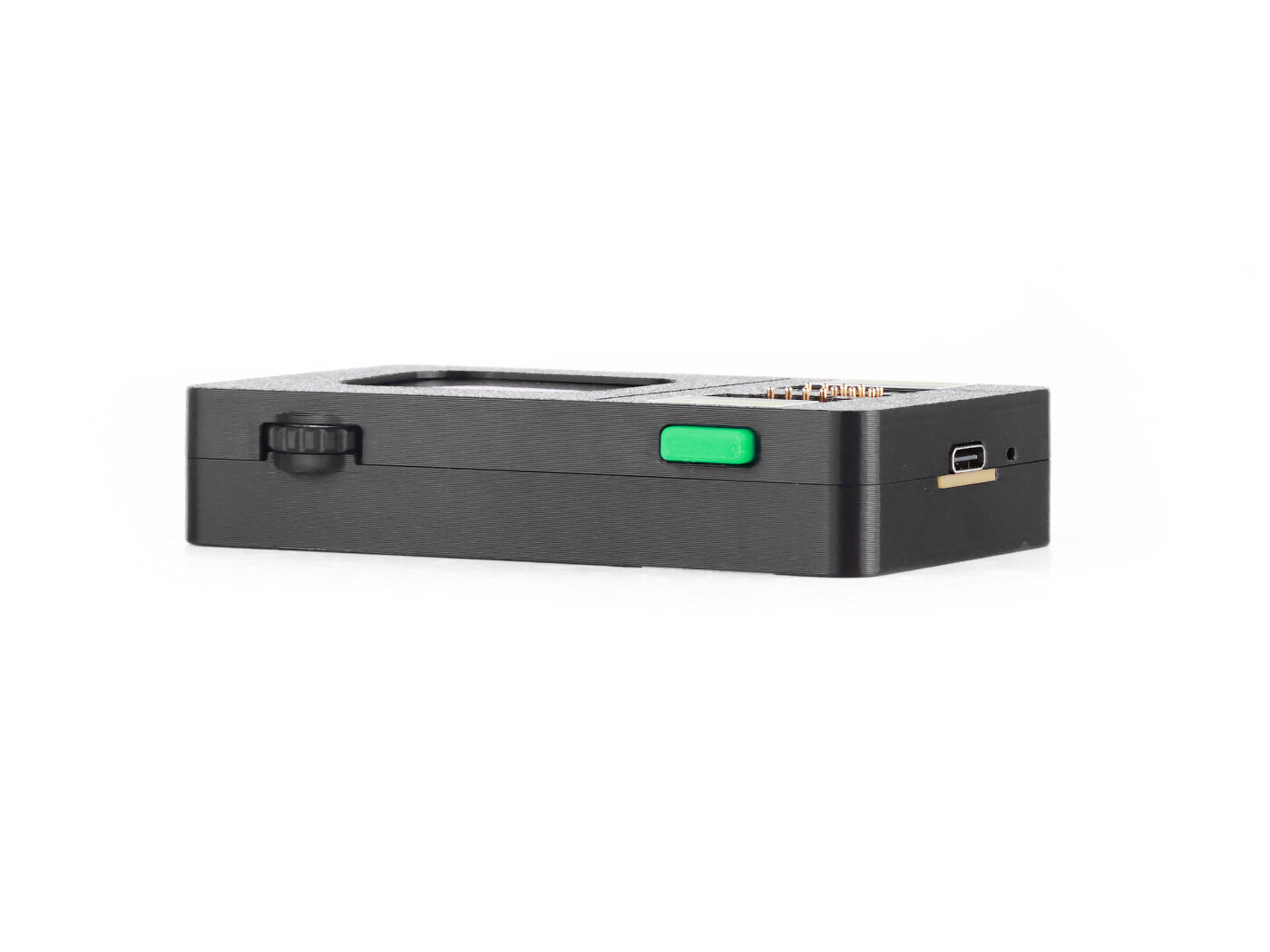

User Input

1 x User Button/Boot Button

1 x Scroll Wheel

1 x Recessed Reset Button

I/O Interface

14 x XIAO Standard Pins

8 x Expansion Pins

4 x SWD Debugging Pins

1 x UART Grove Connector

Product Size

100x20x56 mm

Software

Supports DAPLink for debugging

Supported OpenOCD Target Chipset

SAMD21, nRF52840 (Sense), RP2040, RP2350, RA4M1, MG24 (Sense)

Enclosure

3D-Printed in Black PLA



Note:

The XIAO nRF54L15, ESP32(C3/S3/C6) series does not currently support debugging feature.


Hardware Overview


Application

⚙️ Electronics Prototyping & Validation Serves as a core bench tool for 👩💻 engineers and 🔧 makers to accelerate prototype validation and firmware development — from consumer electronics 📱 to industrial controls 🏭.

🏭 Manufacturing & Production Line Testing Deployed as an automated test jig on production lines to flash firmware 💾 and perform self‑checks ✅❌, boosting throughput and efficiency.

🛠️ Field Service & On‑site Maintenance Equips field technicians with a portable diagnostic tool 🎒 to service deployed smart devices 📡, read logs 📑, and diagnose faults without a laptop 💻.

🎓 Education Acts as an ideal teaching platform 📚, enabling students to visually connect abstract concepts like debugging 🐞 with hands‑on hardware practice 🔌.

🔬 Custom Test Equipment Development Used as a flexible base platform for creating specialized test instruments 🧪, saving development costs 💰 by allowing engineers to quickly program it for custom validation tasks ⚡.




Part List

Seeed Studio XIAO Debug Mate

×1

Grove - 4 pin Female Jumper to Grove 4 pin Conversion Cable

x1

Grove - 4 pin Male Jumper to Grove 4 pin Conversion Cable

x1
