Seeed Studio reSpeaker Flex XVF3800 Linear-4 without XIAO ESP32S3

52,95 €

Description

Seeed Studio reSpeaker Flex XVF3800 Linear-4 without XIAO ESP32S3 is a split-type 4-microphone voice front end designed for embedded systems, kiosks, digital signage, and other voice-enabled products that benefit from directional pickup. This version includes the core board and linear 4-mic array board, but does not include XIAO ESP32S3. Seeed states that the no-XIAO versions ship with factory-installed USB audio firmware, which makes this model well suited for Raspberry Pi, NVIDIA Jetson, Windows, Linux, and macOS host integration.

The platform uses the XMOS XVF3800 to provide advanced acoustic processing such as AEC, AGC, beamforming, DoA, VAD, noise suppression, and de-reverberation. Compared with the circular version, the linear array is optimized for 180 degree directional audio capture, making it a strong fit for front-facing installations like display bezels, counters, kiosks, and smart signage.

Key Function Image (Official):

reSpeaker Flex official function overview

Features

  • Linear 4-mic array: Tuned for 180 degree directional voice pickup in front-facing applications.
  • Factory USB firmware on no-XIAO version: Ready for plug-and-play USB audio workflows with common hosts.
  • XMOS XVF3800 audio processor: Provides far-field voice capture and onboard acoustic processing.
  • Split mechanical design: Separates the mic array from the core board for easier system integration.
  • Far-field pickup up to 5 meters: Suitable for kiosks, smart terminals, signage, and interactive devices.
  • Advanced voice algorithms: Includes AEC, AGC, beamforming, VAD, noise suppression, and de-reverberation.
  • Compact linear format: Uses about 33 mm spacing and around 110 mm array length for narrow installations.
  • Flexible power and output options: Supports USB Type-C or JST power input plus 3.5 mm audio jack and 2-pin speaker connector output.

Specifications

Parameter Value
Product reSpeaker Flex XVF3800 Linear-4 without XIAO ESP32S3
Audio Processor XMOS XVF3800
Microphones 4 x high-performance PDM MEMS microphones
Array Topology Linear 4-mic array, 33 mm spacing
Pickup Pattern 180 degree directional capture
Pickup Range Up to 5 meters
Supported Algorithms AEC, AGC, DoA, beamforming, VAD, noise suppression, de-reverberation
USB Interfaces 1 x USB Type-C, 1 x USB JST connector
Other Interfaces XIAO compatible pads, XMOS XVF3800 XTAG debug pads, XMOS XVF3800 IO pads
Audio Outputs 1 x 3.5 mm audio jack, 1 x 2-pin speaker connector
Power Input 5V via USB Type-C or 5V JST connector; 12V via 2-pin terminal connector
Mic Array Interface 1 x 24-pin FPC connector
Buttons Reset button, boot button
Maximum Sampling Rate 16 kHz
Mounting 2 x M3 mounting holes
Firmware Factory-installed USB audio firmware on no-XIAO version

Applications

  • Smart kiosks, digital signage, and front-facing voice terminals
  • Display bezel and narrow-enclosure voice pickup
  • Directional conference and retail interaction systems
  • Embedded voice interfaces for SBCs and PCs over USB audio
  • Commercial and industrial front-side voice capture scenarios

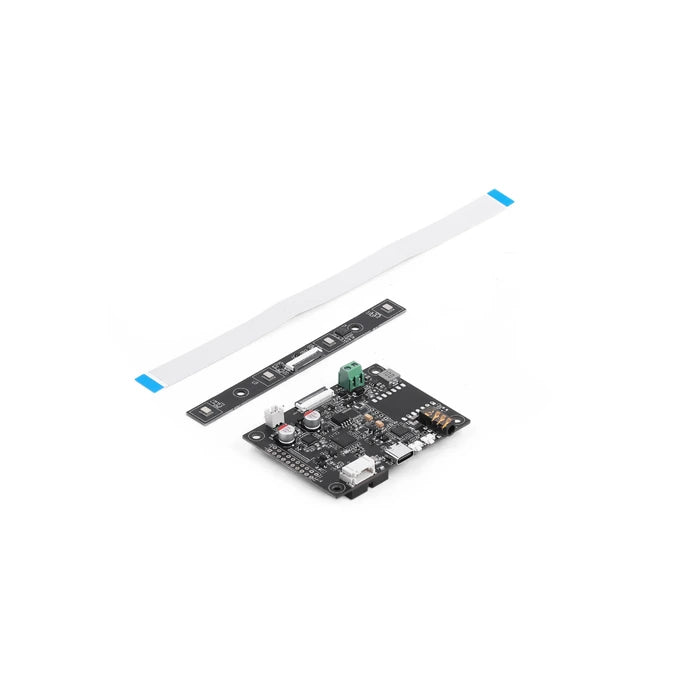

Packing List

  • reSpeaker Flex Core Board x1
  • reSpeaker Flex Linear Mic Array Board x1
  • 20 cm FPC cable x1
  • Pin connectors x1

Other Content

Hardware Highlights

  • Directional linear geometry: Better suited to installations where users interact from the front of the device.
  • USB host compatibility: Easy to pair with Linux SBCs, PCs, and edge devices that need a USB audio frontend.
  • Compact narrow form factor: Useful for screen edges and tight mechanical layouts.
  • 10 W-capable amplifier stage: Uses TI TPA3139D2 for speaker-related audio output scenarios.

Hardware Reference Images (Official):

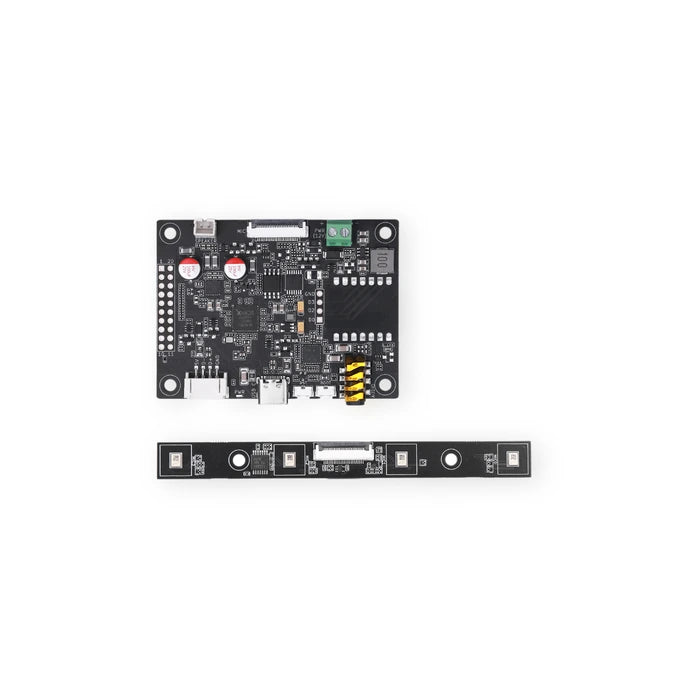

Seeed-100099135 hardware view

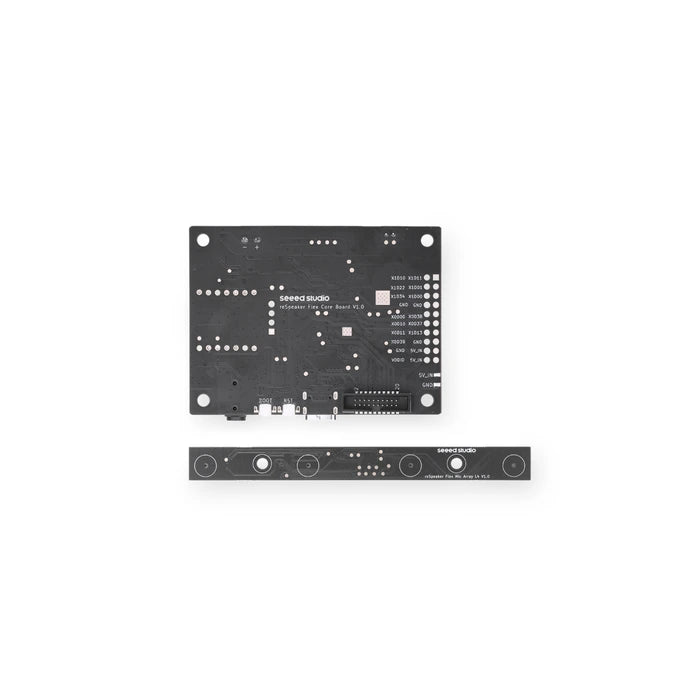

reSpeaker Flex header pinout

Seeed-100099135 layout view

Keyword Focus

Keyword targeting for this listing includes reSpeaker Flex, XVF3800, Linear-4 microphone array, USB audio, directional pickup, beamforming, DoA, far-field voice capture, embedded voice interface. Keywords are distributed naturally across non-spec sections with controlled density under 4%.

Resources

Recommended Articles

Seeed Studio reSpeaker Flex XVF3800 Buying Guide: Circular-4 or Linear-4, and Do You Need XIAO ESP32-S3?

Why Front-Facing Devices Should Consider the reSpeaker Flex XVF3800 Linear-4

Why the Seeed Studio reSpeaker Flex XVF3800 Circular-4 Makes Sense for Robots, Voice Assistants, and 360-Degree Interaction

FAQ

Does this version include a XIAO ESP32S3?

No. This listing is the version without a pre-installed XIAO ESP32S3.

What firmware is installed by default?

Seeed states that the no-XIAO versions ship with factory-installed USB audio firmware.

How is the linear version different from the circular version?

The linear version is optimized for 180 degree directional pickup and is better suited to front-facing device layouts.

What is the intended installation style?

It is a good fit for narrow bezels, kiosks, smart terminals, and signage-oriented products.

How far can it capture voice?

The official materials describe far-field pickup up to 5 meters in suitable conditions.
